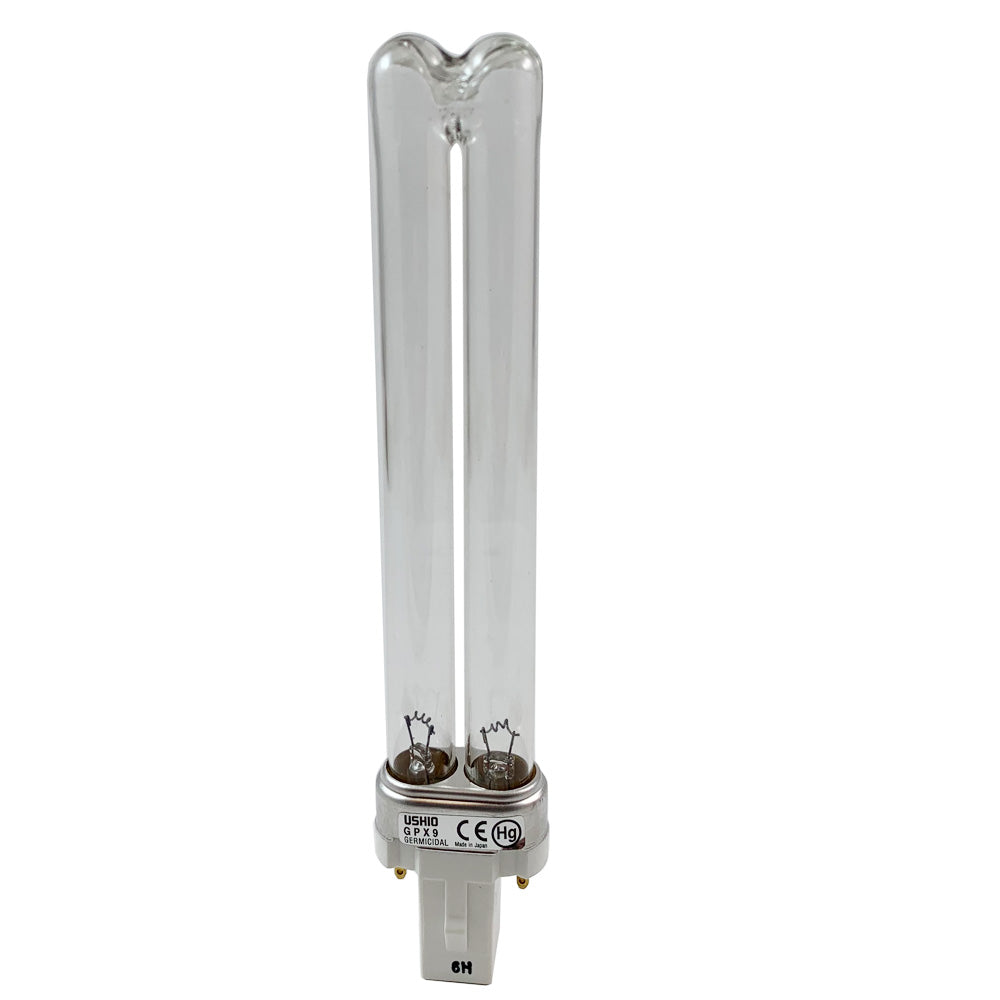

USHIO GPX9 9W Germicidal Low Pressure Mercury-Arc Lamp

USHIO 300304 Germicidal lamps are Low-Pressure Mercury-Arc lamps that emit radiation peaking at 253.7nm(UV-C).
This output at 253.7nm is highly effective to inactivate micro organisms such as bacteria, virus, yeast and mold.

Features:
- Low Mercury Dose to Meet Environmental Demands
- Specially Formulated Coating Achieves High Output Over Long Life Hours
- High Purity Construction to Stabilize UV Output and minimizes Depreciation (Average 20-25% Deprecation at End of Life)
- Flexible Design Capability for Custom Lamp Development
- EPA Approved: Ushio EPA # Est.96093-JPN-1
- EPA Approved: Ushio EPA # Est.96093-JPN-1


Applications:
- Drinking Water
- Waste water
- Air Conditioning Syste,
- Pharmaceutical Processing
- Food Processing Facility
- Packaging Materials
- Laboratory / Research
- Photo-chemistry
- Clean Room
- Other Sterilization and Disinfection Needs

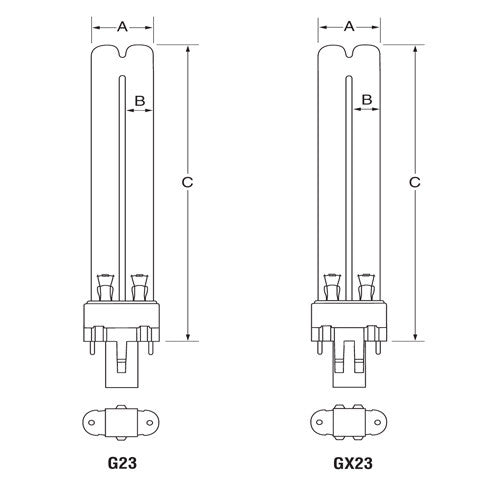

Lamp Description	GPX9

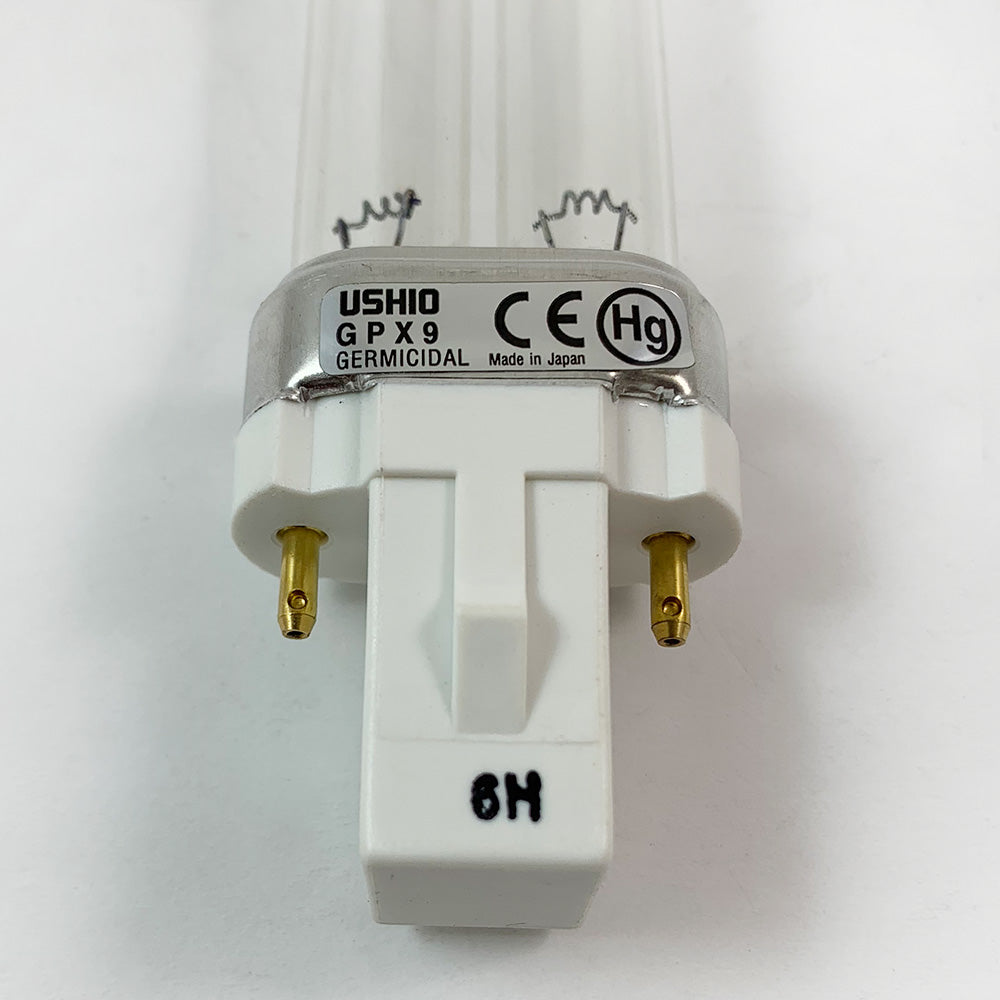

Base	G23
Bulb Type	High Intensity Discharge Bulbs (Hid)

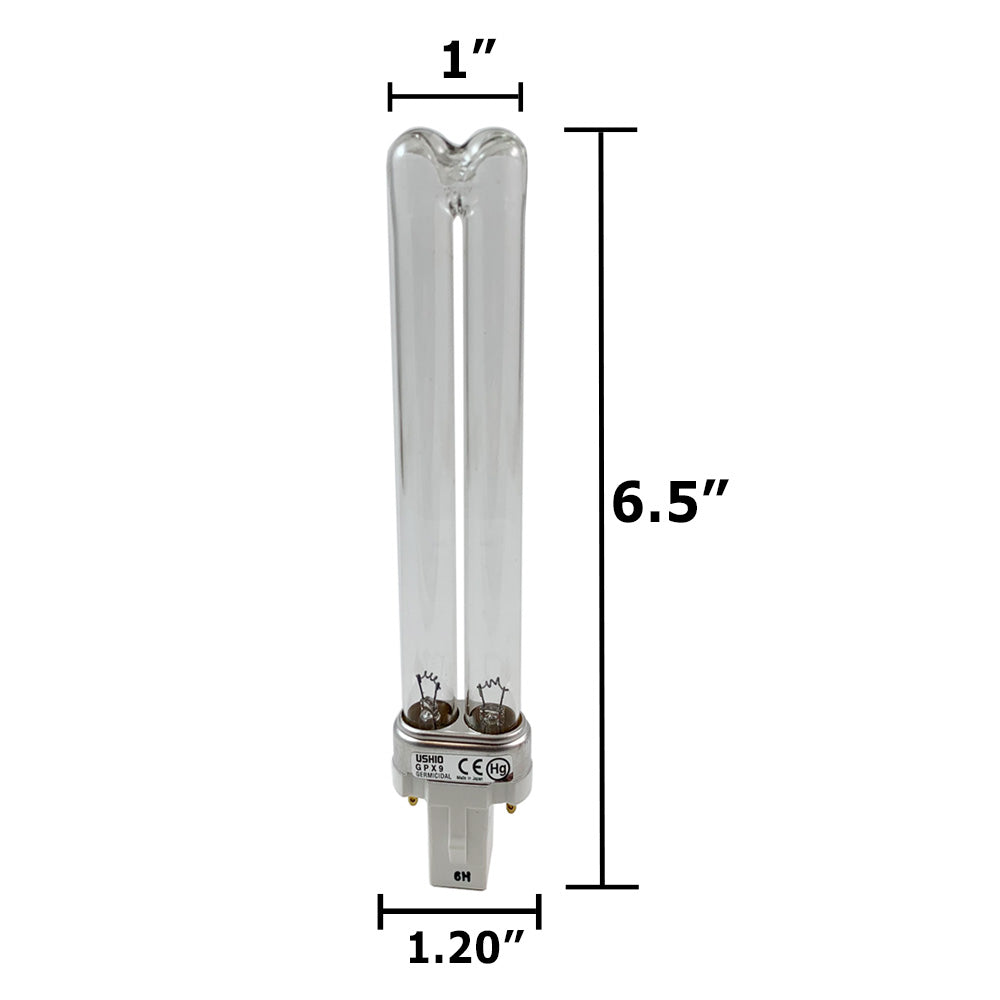

Maximum Overall Length (In)	5.71
Glass Diameter (In)	1.10
Base Diameter (In)	1.20
Rated Life (Hours)	8000
Shape	T4
Wattage (W)	9W
Volts	59v
Lamp current (A)	0.18
Spectral Peak (nm)	253.7
UV output (w)	2.4
EPA Approved	Ushio EPA # Est.96093-JPN-1
EPA Approved	Ushio EPA # Est.96093-JPN-1

Cross Reference
- Air-Care D200
- American Ultraviolet, Inc. AP600
- American Ultraviolet, Inc. GML370
- American Ultraviolet, Inc. RM-9U-105
- Angelo Dicor International Inc. Pond Building Series 9-Watt UV Clarifier
- Beckett Corporation PBF3000
- Beckett Corporation PBF750
- Cal Pump BF1000
- Cal Pump UV9
- Catfish Lighting 9 watt
- Coralife 3x
- Coralife 77082
- Coralife Turbo twist 9 Watt
- Custom SeaLife Double Helix
- Custom SeaLife Double Helix 9 Watt
- Fish Mate 9 watt
- General Electric 15877
- General Electric 40696
- General Electric GBX9/UVC
- Germ Guardian 6815A
- Germ Guardian EV9102
- Germ Guardian EV9102CA
- Germ Guardian EV9102PL
- Germ Guardian EV9LBL
- Hozelock Cyprio BioForce 1000
- Hozelock Cyprio BioForce CF9DS
- Hozelock Cyprio Easy Clear 1000
- Hozelock Cyprio Eco Clear 1000
- Hozelock Cyprio UVC 1327
- Hozelock Cyprio UVC 1328
- Hozelock Cyprio Vorton 1000
- Hozelock Cyprio Vorton 2000
- Hozelock Cyprio Vorton 4000
- Light Sources, Inc. LTC9W/G23
- LightTech Lamp Technology, Ltd. LTC9W/G23
- Oase Living Water 54984
- Oase Living Water Bitron 9
- Oase Living Water Filtoclear 1600
- Oase Living Water Filtoclear 3000
- Oase Living Water Filtoclear 4000
- Oase Living Water Filtoclear 800
- Osram Sylvania Ltd. 21062
- Osram Sylvania Ltd. GCF9DS/G23/SE/OF
- Osram Sylvania Ltd. HNS S 9W G23
- Purely UV Products PUVH2309
- Sankyo Denki GPX9
- Tetra Pond PLS9
- Tetra Pond UV1
- Tetra Pond UV1 Pond Clarifier
- Ushio 3000304
- Ushio GPX9

Manual:

Ushio Germicidal Low Pressure Mercury Arc Specs
PURITEC® HNS® UV-C lamps
