USHIO G8T5E 7.2W Midrange UV-B 306nm Blacklight Tube - 3000318

The Ushio 3000318 G8T5E is a UV-B Low-Pressure Mercury-Arc lamp.
The G8T5E lamps are coated with special blende phosphor to emit radiation peaking at 306nm (UV-B)The G8T5E lamps are used to create UV reaction and effects for various applications such as in Laboratory/Research, Industrial, Sanitation, Criminology, Cosmetics and Entertainment.
The lamp has a G5 2-Pin base and a rated life of 3000 hours.

Features and Benefits:
- 306nm(UV-B)
- Specially blended phosphor coating for maximum UV effect and output
- Low Mercury dose to meet environmental demands
- Large production capacity providing lamps with consistent quality and reliable delivery
- Flexible design capability for custom lamp development

Application:
- UV Curing
- Fluorescence Illumination
- Fluorescence Analysis
- Laboratory/Research
- Photochemistry
- Chromatography
- Phototherapy
- Dermatology
- Non-Destructive Testing
- Inspection
- Detection
- Insect Luring
- Fluorescence Display
- Special Effects in Theatrical Presentation

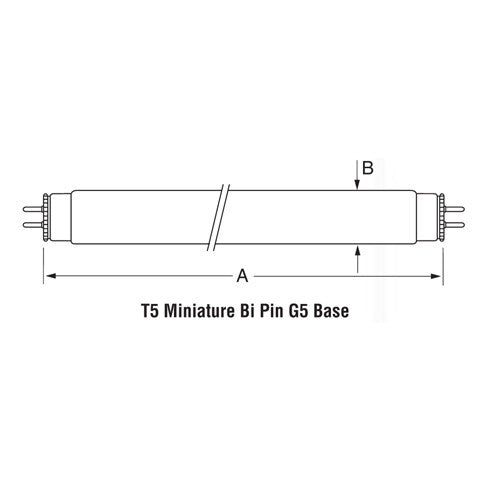

Base	G5 2-Pin
Bulb Type	Fluorescent Bulbs
Diameter (in)	0.61
Maximum Overall Length (in)	11.29
Rated Life (Hours)	3000
Shape	T5
Wattage (W)	7.2W
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

3000318 Data Sheet
