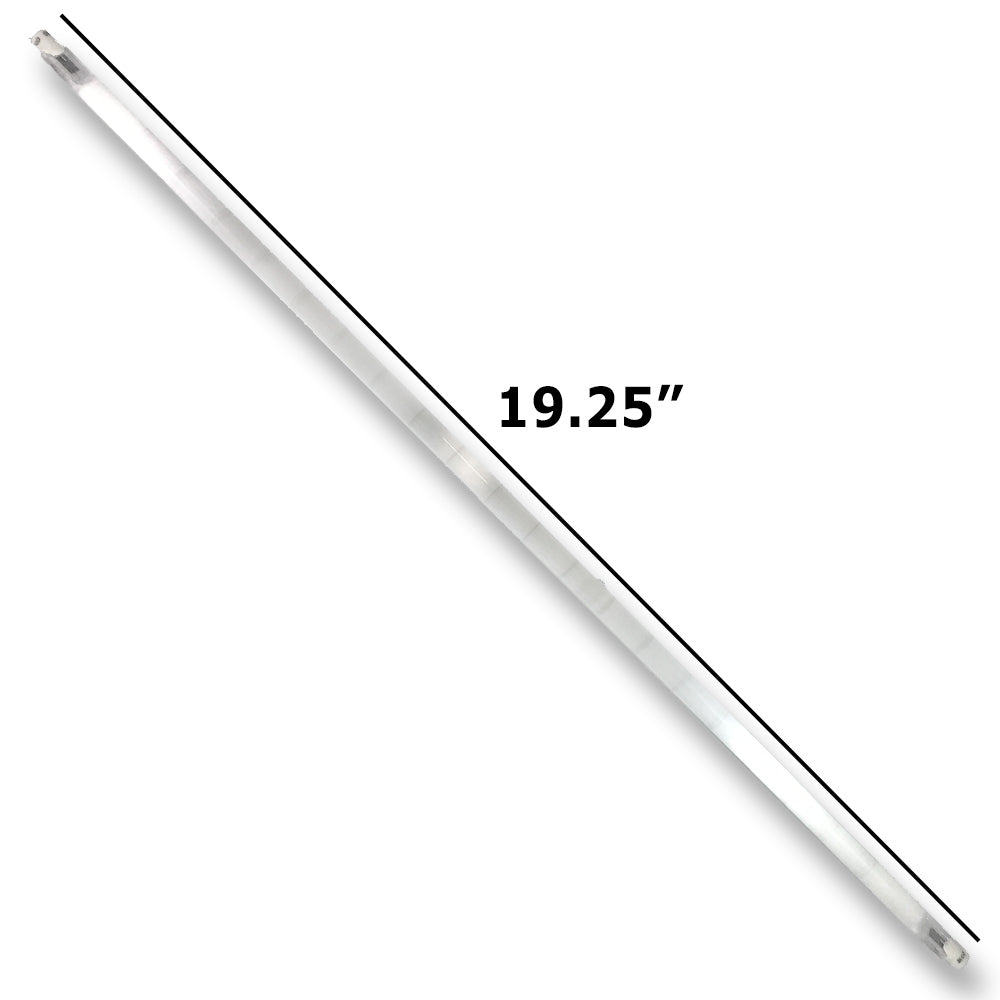

USHIO 1600w QIH240-1600T/E Quartz Infrared Heat Lamp

USHIO 1600w QIH240-1600T/E Quartz Infrared Heat Lamp

This USHIO QIH240-1600T/E Quartz Infrared Heat Lamp has a R7s Recessed Single Contact base.

Ushio Quartz Infrared Heater lamp is an example of efficiently utilizing the heat output of a specialty halogen lamp. Most of the output from this light source falls in the infrared region, and it is proven to be an extremely efficient heat energy source.

Ushio Quartz Infrared Heater lamp creates clean, safe heat source which can be flexibly controlled and minimizes footprint to maximize design possibilities.

With over 20 years of experience in converting the light source into heat source, Ushio provides heat source solutions to various industries ranging from familiar applications such as cooking equipments to state of the art applications such as processing of new materials for semiconductor and aerospace industries. Some typical applications are, baking, drying, curing, dehydrating, space heating and warming of food.

USHIO Code Item	1001333
Product Series	Heater Infrared
Prod. ID / Ansi Code	QIH-1607
Description	QIH 240-1600T/E
Description 2	QH1600T3/7 1600W 240V
Item type	Halogen
Base	R7S
Voltage	240
Wattage	1600
Burn Position	H4
Bulb Shape	T3
Bulb Finish	TRANS
Color Tepm	2500
Contact to Contact (mm)	495
Filament	C-6
Front Glass Cover	NO
Rated Life	5000
Diameter	10
MOL (mm)	499
Lighted Length (lm)	407

Manual:

Ushio Heat Bulbs Manual
Ushio 1001333 Lamp Data Sheet
