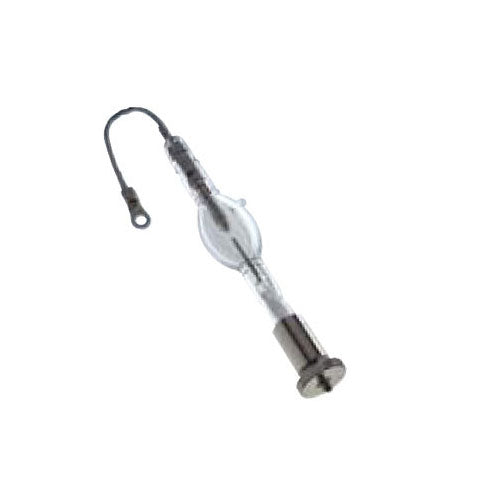

Ushio 1000W UXL Xenon Double-Ended HID Light Bulb

The USHIO Xenon short art lamps are specifically designed and approved for use in strong high performance followspots. During manufacturing, the quartz tip-off position was moved to the cathode side of the lamp to allow easier installation and a more precise fit into the reflector. The cable on the UXL-10S has been lengthened to allow ease of lamp positioning during installation.

Ushio UXL series are high pressure, short-arc Xenon discharge lamps. UXL spectral distribution is well balanced in the visible spectrum to resemble daylight. The high gas fill pressure provides high luminance and high luminous efficacy. Fast ignition and a stable arc are what USHIO has achieved with the UXL lamp design.

Product Features:
- Bulb Type: High Intensity Discharge Bulbs (HID)
- Item Type: Xenon
- Shape: Double-Ended
- Voltage: 20, Wattage: 1000
- Burn Position: H15
- Bulb Finish: Clear
- Diameter (in): 1.57
- MOL (in): 9.65
- Light Center Length (in): 3.88
- Ozone Free: Yes
- CA Prop 65: Yes
- CA Prop 65 Material: Mercury

Applications:
- Concert Touring
- Theatrical Events
- Sports Events
- Special Venues

Bulb Type	High Intensity Discharge Bulbs (HID)
Prod. ID / Ansi Code	UXL-10S
Description	UXL-10S, Xe 1000W
Description 2	1000W 20V 50A
Item Type	Xenon
Shape	Double-Ended
Voltage	20
Wattage	1000
Amperage	50
Burn Position	H15
Bulb Finish	Clear
Arc Gap (in)	0.17
Contact to Contact (in)	8.43
Front Glass Cover	No
Diameter (in)	1.57
MOL (in)	9.65
Light Center Length (in)	3.88
Ozone Free	Yes
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

5002060 Data Sheet
