Tungsten Molebeams DPY Type 8331 5,000W 24-in Projector 120V Replacement Lamp

Tungsten Molebeams DPY Type 8331 5,000W 24-in Projector 120V Replacement Lamp

Features:
- Abbreviation Name: DPY
- Application: STAGE & STUDIO
- Base: G38 Mogul Bipost
- Bulb: T19
- Filament: C13
- Type of Current: AC
- Voltage: 120
- Wattage: 5,000.00
- Luminous Flux (lm): 143000
- Rated Life: 500 hrs
- Color Rendering Index (CRI): 100
- Color Temperature (K): 3200

Cross Reference:
- Atlas/Thorn CP/46
- Atlas/Thorn CP/29
- Bulbrite 762085 DPY
- Colortran BS50-32/17
- Colortran BS50-33/17
- Colortran 176-073
- Colortran 176-150
- Colortran 176-158
- Colortran 176-159
- Colortran 176-160
- GE 41736 DPY-Q5000T20/4CL
- Grainger 6VN59
- Osram 54647 DPY
- Philips 6378P
- Philips 31922-8 DPY 500W 120V
- Ushio 1000215 DPY, JS120V-5000WC

Applications:
- Fresnel
- Stage and Studio

Abbreviation Name	DPY
Application	STAGE & STUDIO
Base	G38 Mogul Bipost
Bulb	T19
Filament	C13
Type of Current	AC
Voltage	120
Wattage	5,000.00
Luminous Flux (lm)	143000
Rated Life	500 hrs
Color Rendering Index (CRI)	100
Color Temperature (K)	3200
Distance	6.435 (in) 165 (mm)
Filament Dimensions Length	1.02 (in) 26 (mm)
Filament Dimensions Width	1.42 (in) 36 (mm)
Length	10.84 (in) 278 (mm)
Light Center Length - LCL	6.435 (in) 165 (mm)
Maximum Overall Length - MOL	10.84 (in) 2778 (mm)
Diameter	2.362 (in) 60.00 (mm)

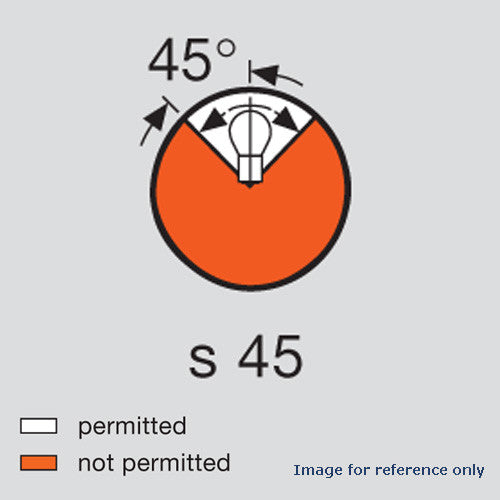

Operating Position	S45
Class	C (GAS)
Reflector Coating	60.00

The DPY bulbs is used in following equipment:
- Mole - Richardson Type 245
- Mole - Richardson Type 4191
- Mole - Richardson Type 4351
