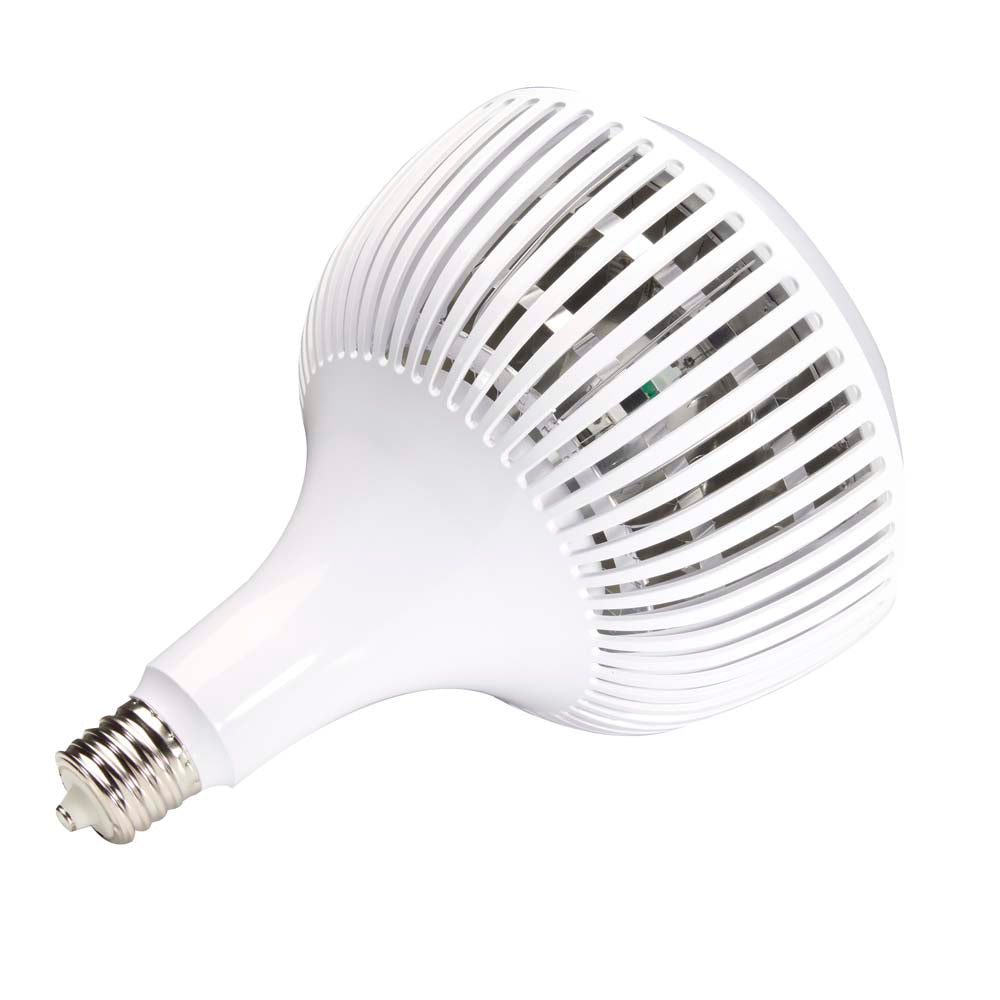

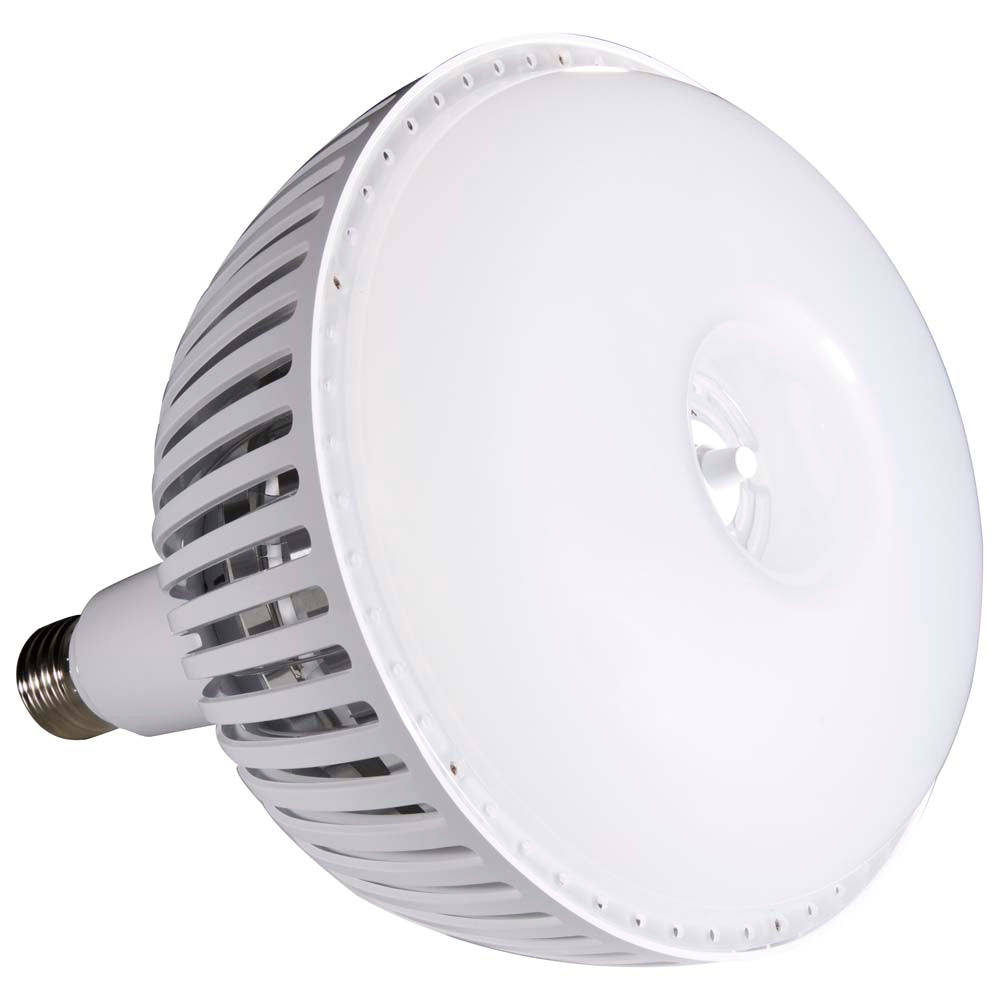

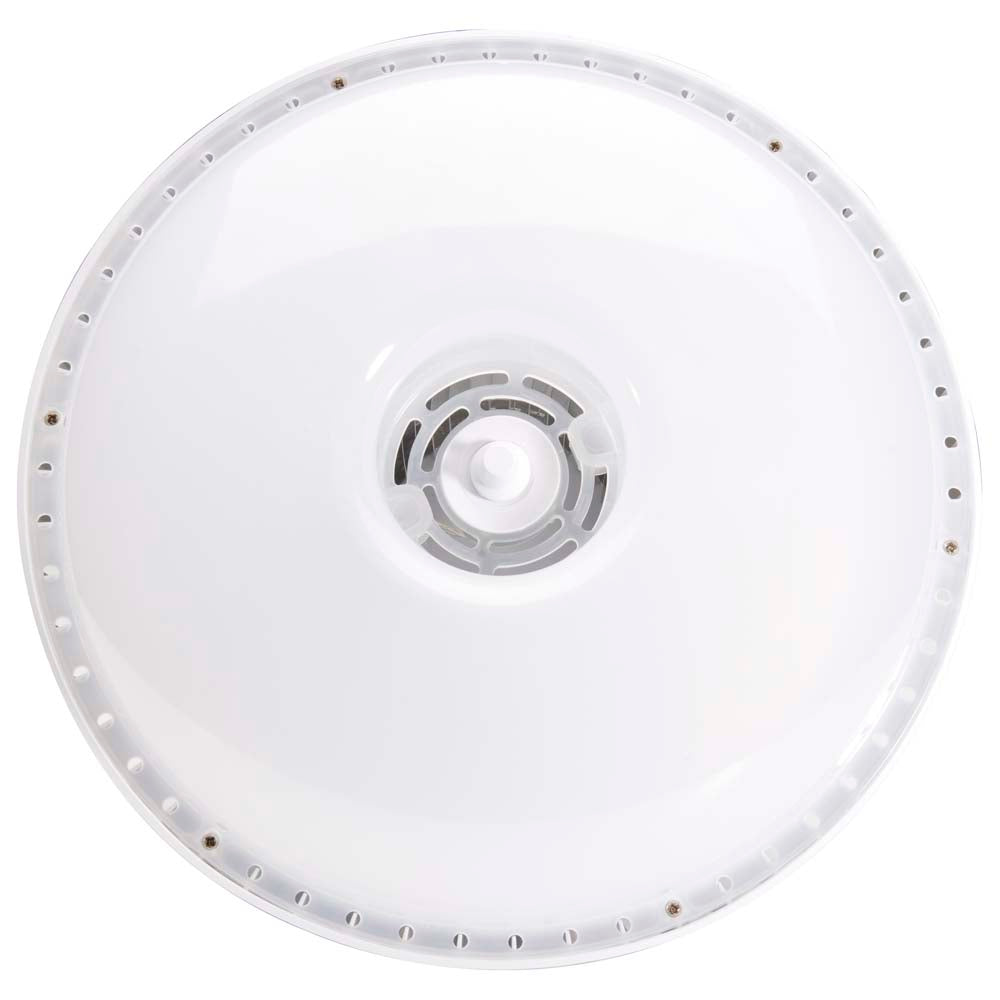

Satco 130w LED HID Replacement 5000K Mogul extended Base 120-277V Dimmable

Satco update of our popular high bay/low bay LED lamps means improved performance on every level including, built-in dimming. The shape lends itself to virtually every fixture, and the heat dissipation feature means a cooler running, longer lasting lamp. Commercial venues everywhere have been relying on this lamp for years. Everywhere superior light output is critical and reducing maintenance is important, areas such as, warehouses, gymnasiums, health clubs, factories and arenas, these lamps are the perfect choice.

Features:
- Replaces 400-watt HID Technology
- Long neck options fits most fixtures.
- Advanced passive heat dissipation
- Wide, 115 degree beam spread
- Light weight
- Damp Location Rated
- Dimmable with built-in dimmer only
- 6kV built-in surge protection
- Rated for use in enclosed fixtures

General
Watts	130W
HID Equivalent	400W
Volts	120V-277V
Base	Mogul Extended
ANSI Base	EX39
Finish	Translucent White
CCT (Kelvin)	5000K
Temperature	Natural Light
CRI	80
Lumens	16300L
Beam Spread	115
Dimmable	Yes-Dimmable
Hours Rated	35000
Technology	Hi-Bay LED
Electrical
Operating Frequency	50-60 Hz
Power Factor	0.98/0.92
Operating Temperature	-40C (-40F) to a maximum of +60C (+140F)
Physical

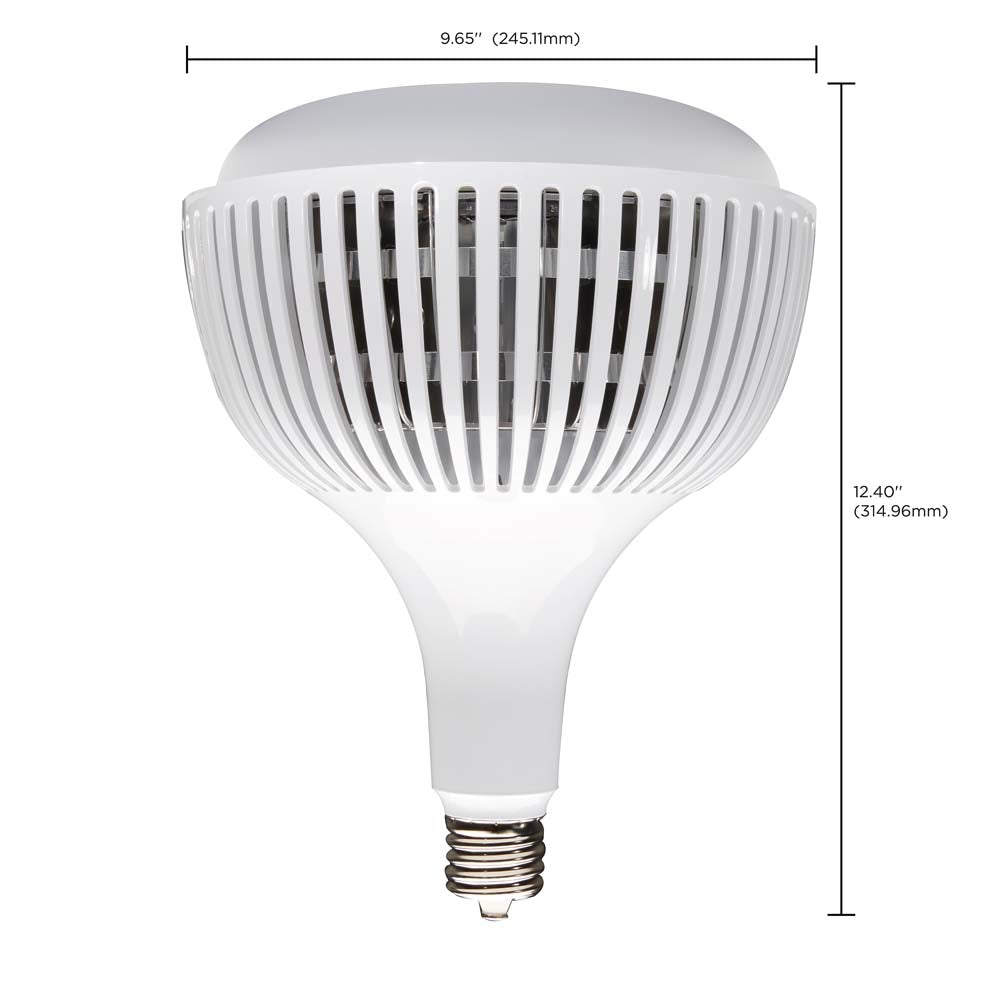

MOL	12.4
MOD	9.65
Weight (lb.)	2.98
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	3 Year Limited
Compliance
Safety Listing	cULus - Classified; cULus - Certified
Location Rating	Damp
Energy Star	No
FCC Compliant	Yes

Manual:

S23115 Data Sheet
