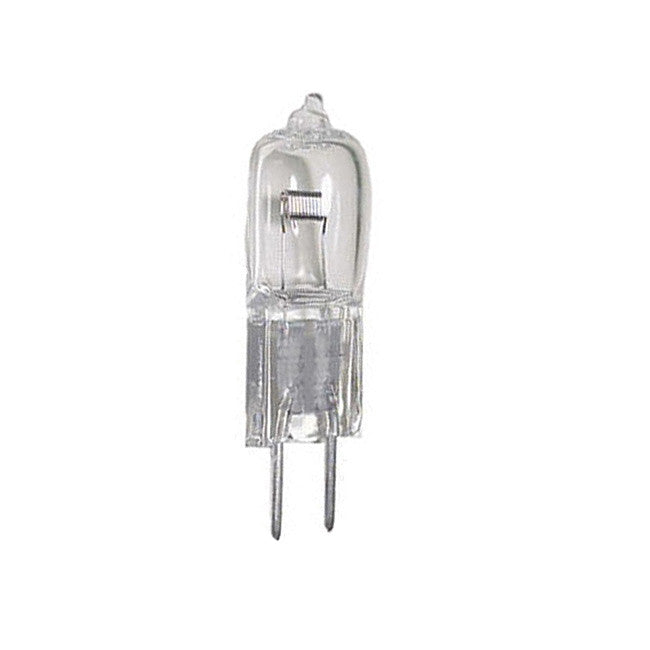

PHILIPS FCS 409836 150w 24v 7158 HXP 5200Lm G6.35 Halogen Bulb

This is the Philips tungsten Halogen light bulb. It works with 150 watts and 24 volts. This bulb does not have a reflector. It has a common G6.35 2 pin base. This lamp has a T4 shape and a rated life of 50 hours.

Applications:
- Dental
- Fiber Optic
- Medical
- Microscope
- Projection
- Surgical

Features:
- Single Ended Lamp
- Low Voltage Bulb
- Replacement for ZB-FCS
- Examination & Operating
- Illuminator
- X-Ray Collimator
- Surgical Operating Room

Manufacturer	Philips
12NC Code	923870520503
SKU	206078
Base	G6.35 2-Pin
Bulb Type	Halogen Bulbs
Filament	C-6F
Lamp Finish	Clear
Luminous Flux (LM)	5200
Maximum Overall Length (in)	2.00
Rated Life (Hours)	50
Shape	T4
Voltage (V)	24V
Wattage (W)	150W
Material Nr. (12NC)	924031720503
EAN/UPC	8711500409836
SKU	107564553

Manual:

Philips 206078 7158 150W G6.35 24V 1CT
Philips EU Declaration of Conformity

- The FCS bulbs is used in following equipment
- ARRI Liliput
- Clay Paky Astrodisco 2 / 90
- Clay Paky Astrodisco 3
- Clay Paky Astroraggi Halogen
- Clay Paky Astroraggi Twin
- Clay Paky Astrosfera
- Clay Paky Astrospider
- Emmele ML 310 Macarena
- Emmele ML 408 Frisby
- Emmele ML 414 Trilly
- Emmele ML 414 Trilly Scan
- Ets. Cremer MT 111
- Eurolite Double Ball
- Eurolite Triple Ball
- Genius Little flower
- Genius LP 28 DJ Flower
- Genius LP 40 Next Scan
- Genius LP 42 Next Roller
- Genius LP 68 DJ Ring
- Genius Mini brillante
- Genius Mini flower
- Genius Mini multiray
- Genius Mini round
- Genius mini shining
- Genius Mini sky
- Genius Trillo
- Griven Alfa 1 + 2
- Griven Beta
- Griven Gamma
- Jaeger Spotlight St 02 / HA
- Martin Professional Roboscan 805
- Showtec Blizzard
- Showtec Double wheel
- Showtec Fireball
- Showtec Radiator
- Showtec Triball
