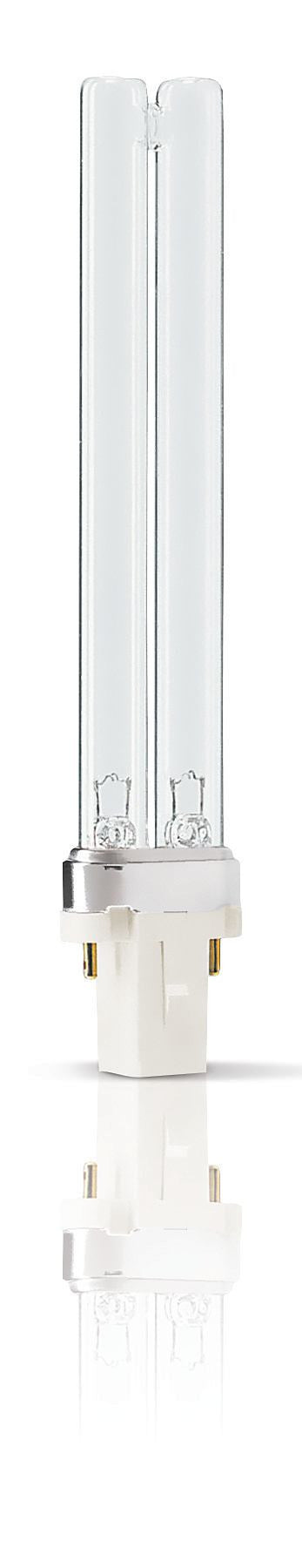

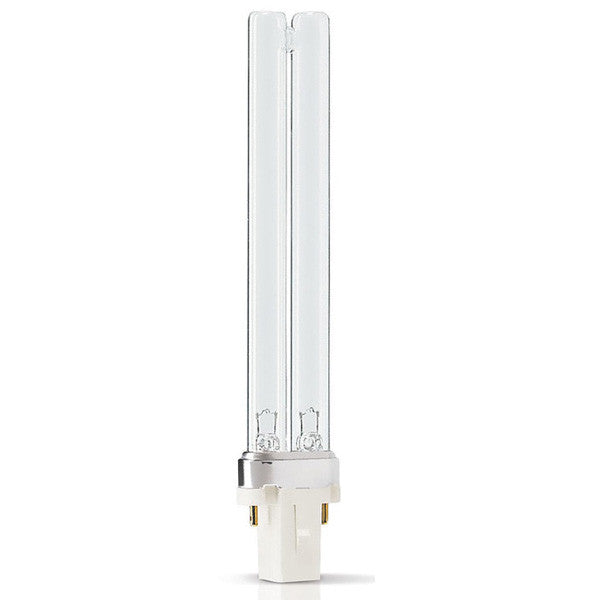

Philips TUV PL-S 9W/2P 9W 2-pin G23 Compact UVC Germicidal Lamp

Philips 325126 TUV PL-S 9W lamps are compact UVC (germicidal) lamps used in residential water and air disinfection units. The compact size of the lamp allows for a small system design and design flexibility. The Philips 325126 TUV PL-S 9W lamps offer constant UV output over their complete lifetime, for maximum security of disinfection and high system efficacy. Thanks to the single-ended lamp base, lamp replacement is easy.

Benefits:
- Security of effective disinfection over the useful lifetime of the lamp
- Good environmental choice because of lowest amount of mercury
- High system efficacy because it is not required to over-design the purification system to maintain effectiveness of disinfection

Philips 325126 TUV PL-S 9W Features:
- Short-wave UV radiation with a peak at 253.7 nm (UVC) for disinfection purposes
- Protective inside coating ensures constant UV output over the complete lifetime of the lamp
- 4-Pin PL-S lamps are designed for use on electronic drivers
- EPA Approved: Philips/Signify EPA # Est. No 95792-POL-1

Warning & Safety:
- DANGER: Risk Group 3 Ultra Violet product. These lamps emit high-power UV radiation that can cause severe injury to skin and eyes. Avoid eye and skin exposure to unshielded product. Use only in an enclosed environment which shields users from the radiation.

Manufacturer	Philips
12NC Code	927901704007
SKU	325126
Ordering code	618245
Product code	325126
Abbreviation Name	TUV PL-S 9W/2P
Base	G23
Bulb Type	Germicidal Bulbs
Diameter (in)	1.102
Maximum Overall Length (in)	6.574
Rated Life (Hours)	9000
Shape	Single Tube 2-PIN
Voltage (V)	60V
Wattage (W)	9W
EPA Approved	Philips/Signify EPA # Est. No 95792-POL-1

Manual:

Ozone emission statement Signify TUV 4W up to 800W
Philips 325126 TUV PL-S 9W/2P
PL-S 9W/TUV 60PK
Philips UV Technology
Philips Germicidal CFL EU Declaration of Conformity
