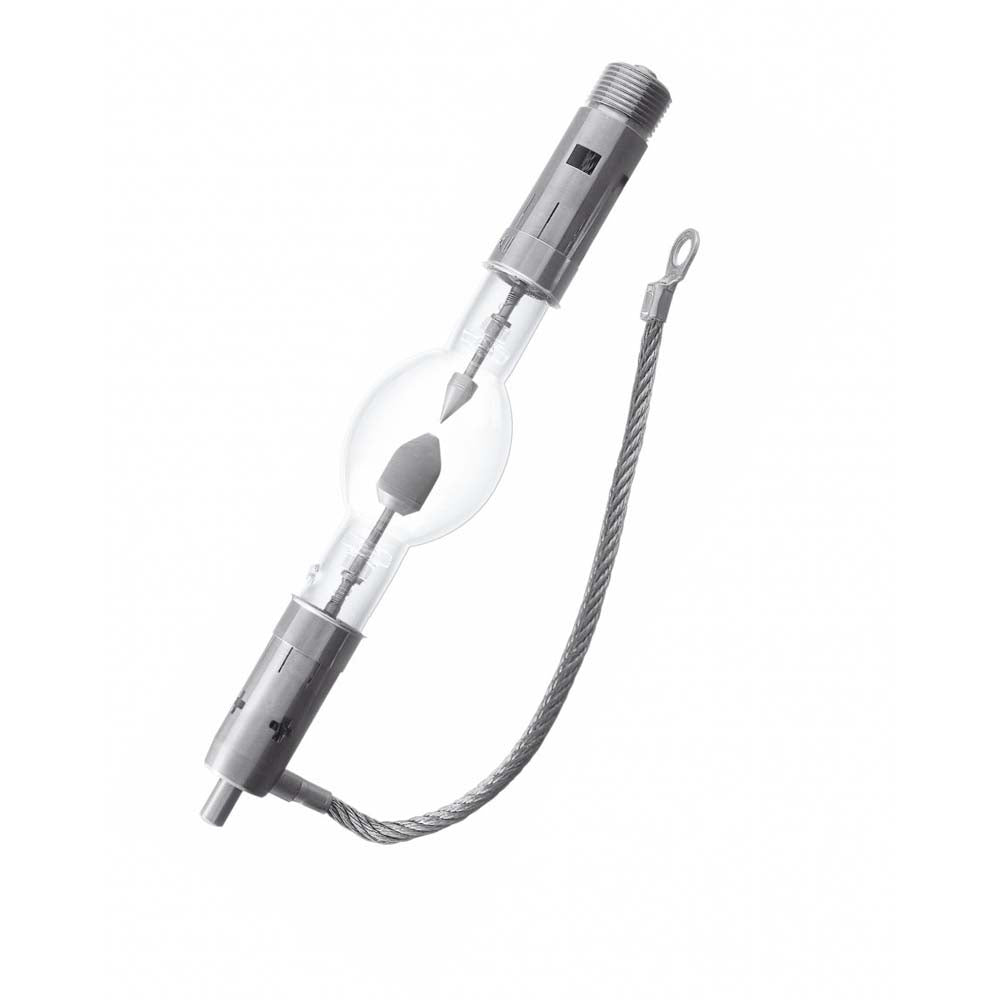

OSRAM XSTAGE 3000W VS1 OFR XBO Xenon Specialty Stage Studio Lamp

OSRAM XBO Xenon Discharge Lamps (>450W) are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden. These XSTAGE lamps are designed with a special base for use in spotlight and searchlight applications.

Features:
- High luminance (point source) with rugged design for spotlight applications
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering > 95
- High arc stability
- DC operation
- Hot restart

Areas of application:
- Digital
- Film
- Spotlights
- Searchlights
- Solar Simulation

Brand Name	OSRAM
Abbreviation Name	XSTAGE 3000W VS1 OFR
Lamp Type	XENON
Voltage (V)	30
Wattage (W)	3000
Base	Special Double Ended
Base Anode	SFaX27-9.5
Base Cathode	SFc28-27
Bulb Shape	T17
Lamp Finish	Clear
Lumens	1000
Rated Life	1000 hrs
Color Rendering Index (CRI)	98
Color Temperature (K)	6000k
Candle Power	13500
Current (A)	100
Current Control Range (A)	70-110 A
Type of Current	DC
Electrode Gap (cold) (mm)	4.5
Hot Restart	Yes
Class	C (gas)
MOL (in)	11.800 in (299.7 mm)
Diameter (in)	2.165 in (55.0 mm)
Operating Position	s90
UPC	4008321288837

Manual:

69483 Data Sheet
