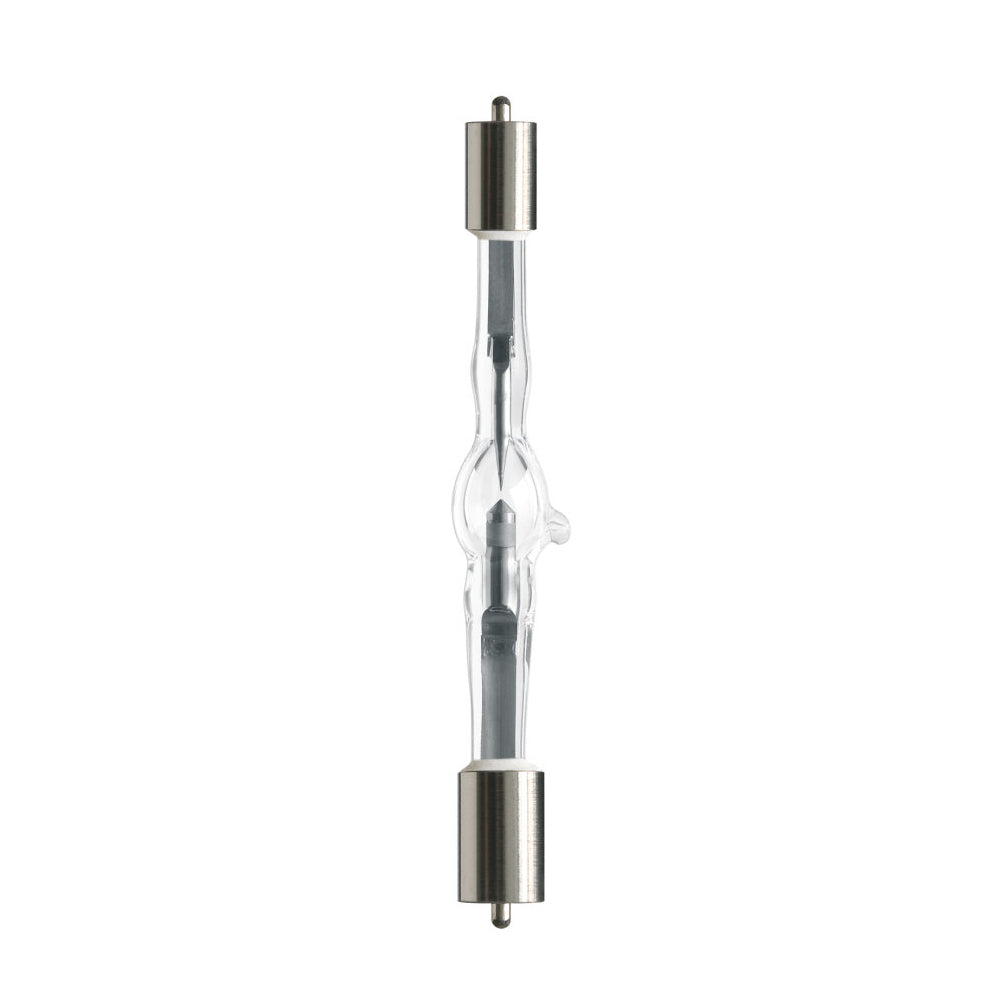

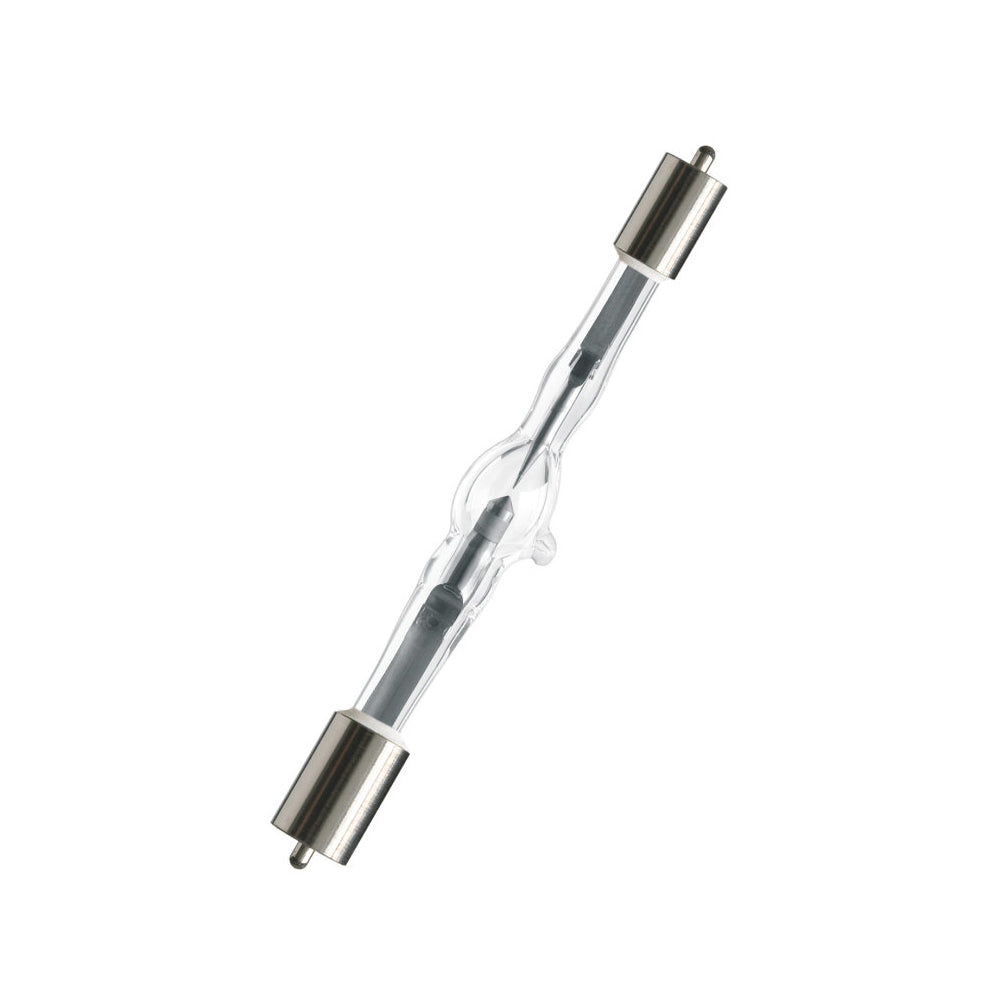

OSRAM 69232 XBO 75W/2 OFR 75W 14V KO124 xenon short arc double-ended

OSRAM SKU: 69232
$37699 $598.99 USD
584 in stock




1

Description

OSRAM 69232 XBO 75w/2 OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumination devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years.

Key Features and Benefits
  • High luminance / radiance with intense point source
  • Broad, continuous spectral distribution
  • High color rendering > 95
  • High arc stability
  • DC operation
Areas of application
  • Endoscopy
  • Microscopy
  • Surgical Headlamps
  • Fiber Illumination
  • Solar Simulation
  • Imaging & scanning

Specs

Abbreviation Name XBO75W2OFR
Application Microscopy, Searchlights
Average Luminance (cd/cm2) 40000
Average Rated Life - Horizontal (hr) 400
Average Rated Life - Vertical (hr) 400
Base Anode SFa9-2
Base Cathode SFa7.5-2
Bulb KO124
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Current (A) 5.4

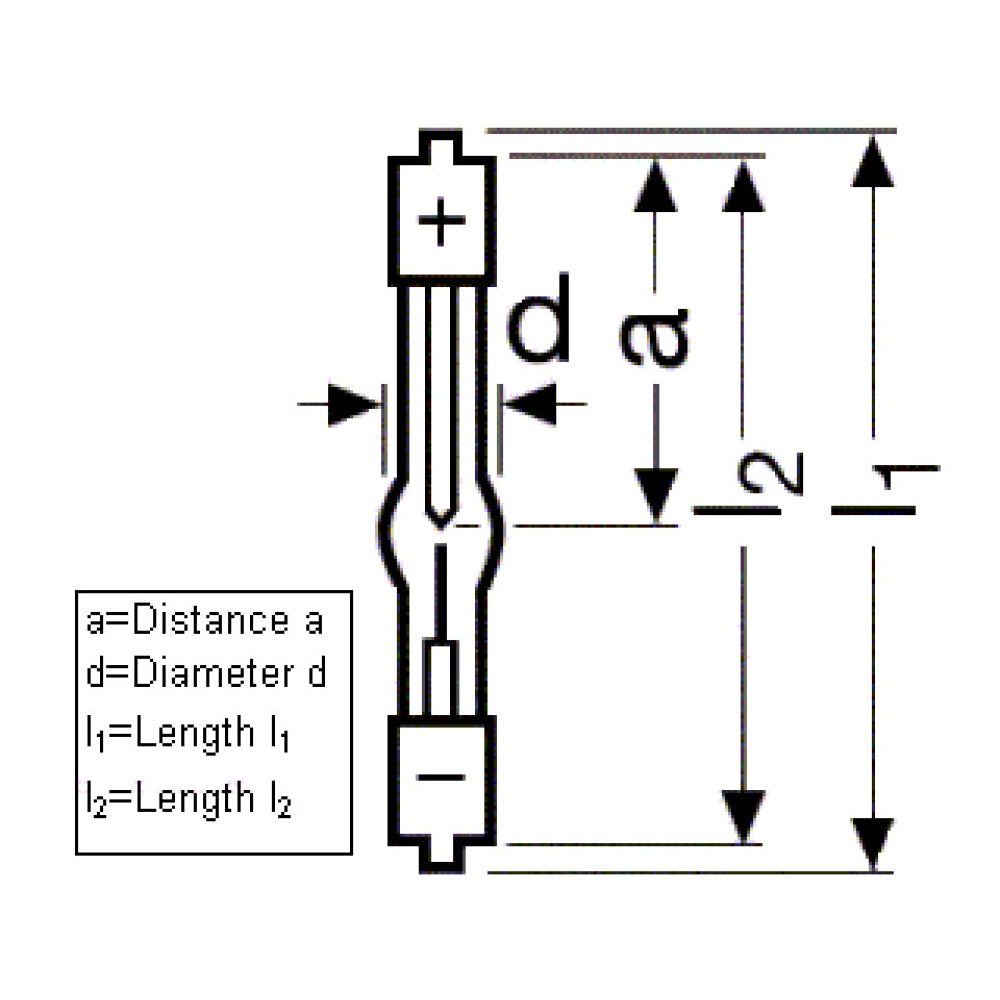

Diameter d (in) 39.331
Diameter d (mm) 999
Distance a (mm) 43
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 90
Length l1 max. (mm) 90
Length l2 (mm) 82
Length l2 max. (mm) 82
Light Center Length - LCL (mm) 43
Luminous Area w x h (mm) 0.25 x 0.5
Luminous Flux (lm) 1000
Luminous Intensity (cd) 100
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 90
Nominal Wattage (W) 75

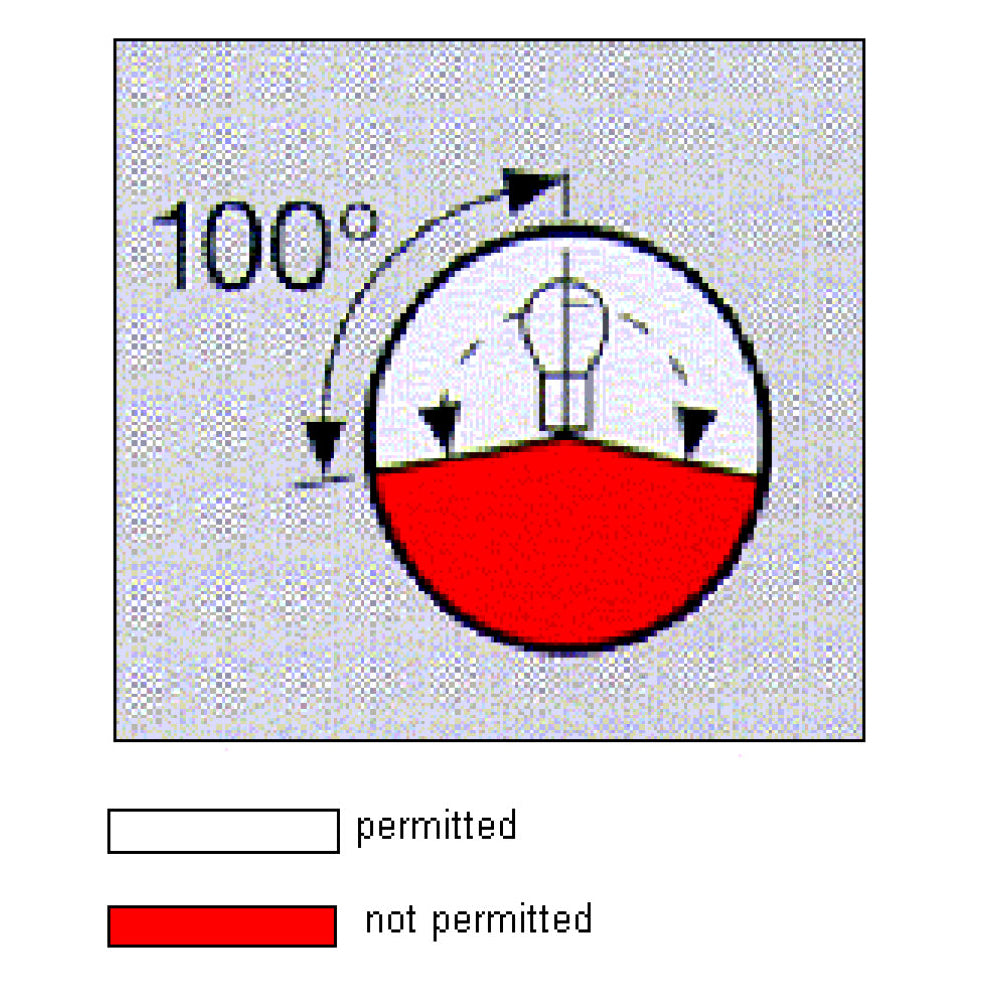

Operating Position s 105
Reflector Coating 999
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury

Installation Guide

‎
