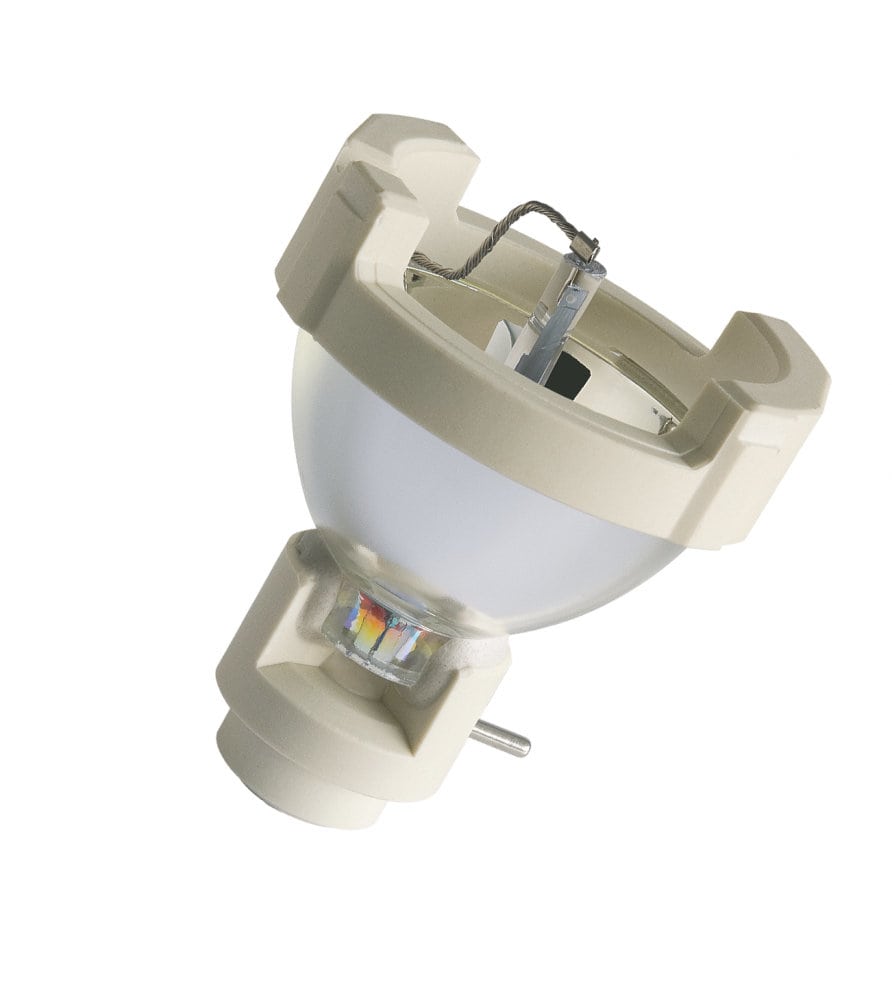

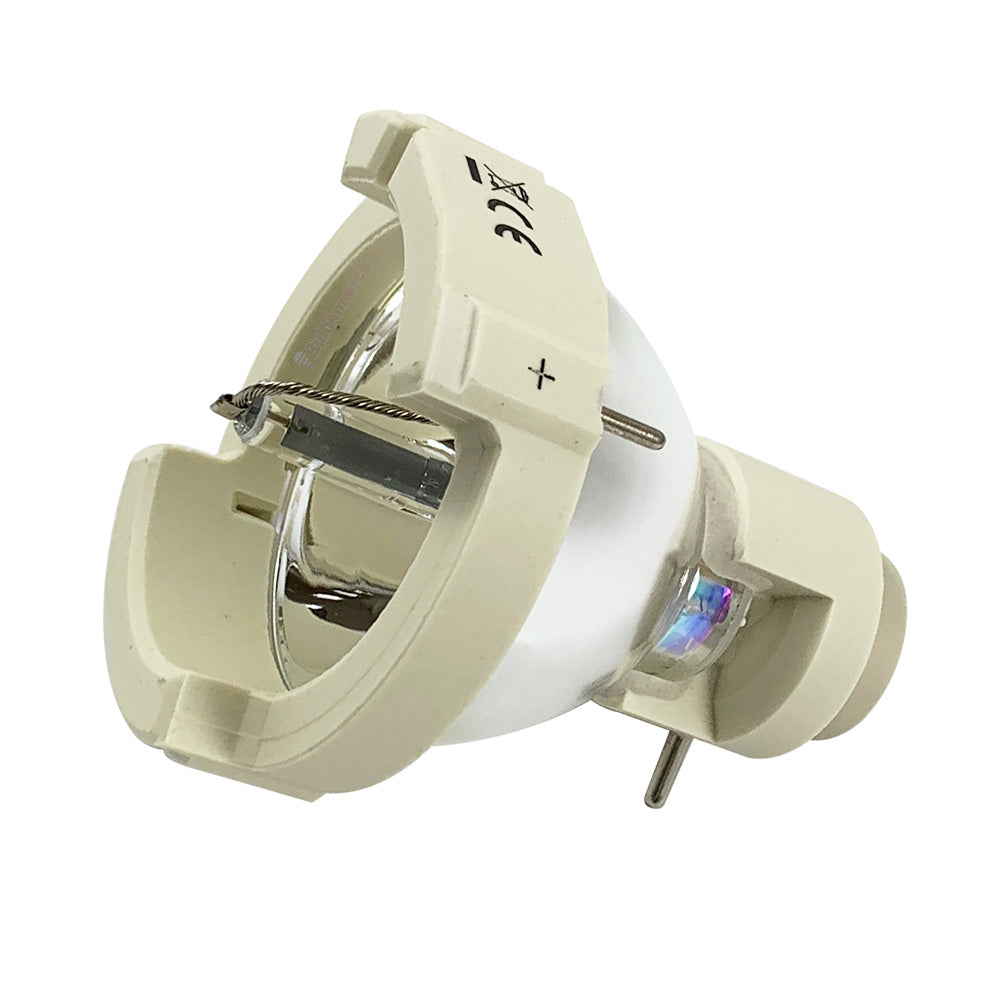

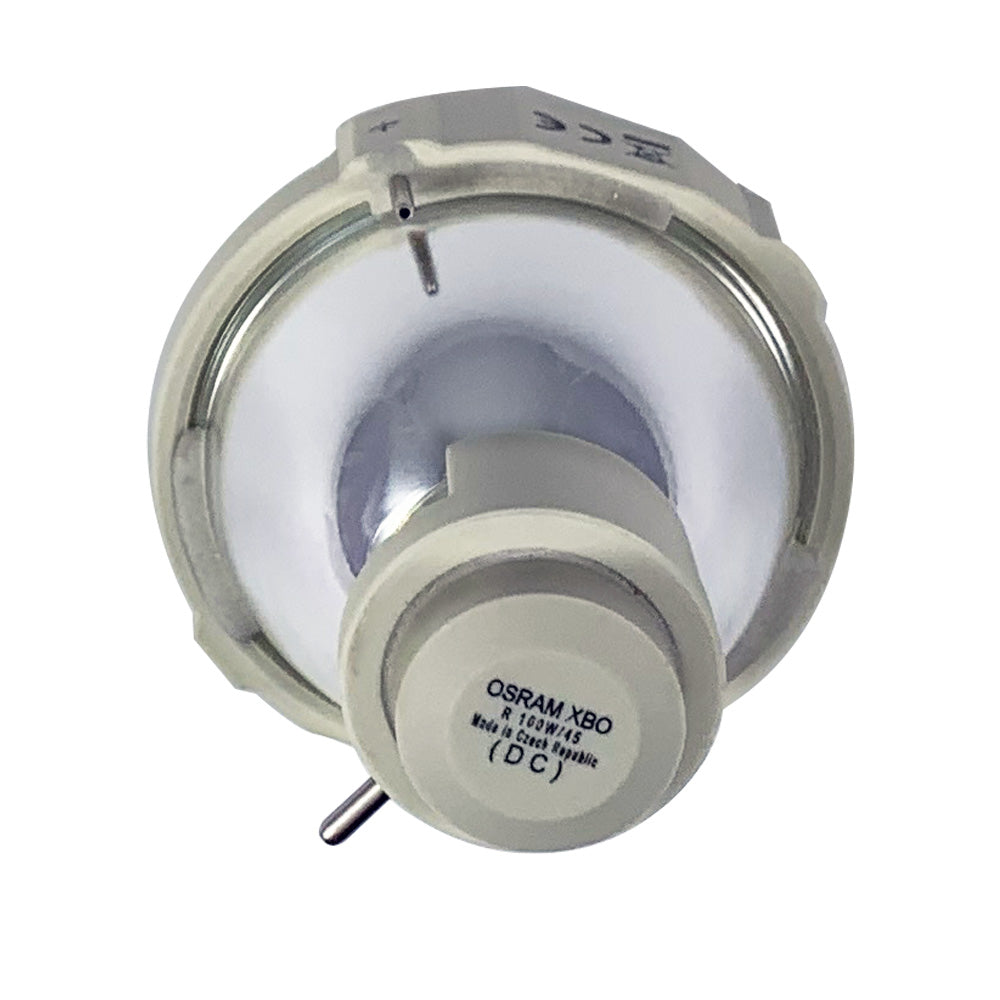

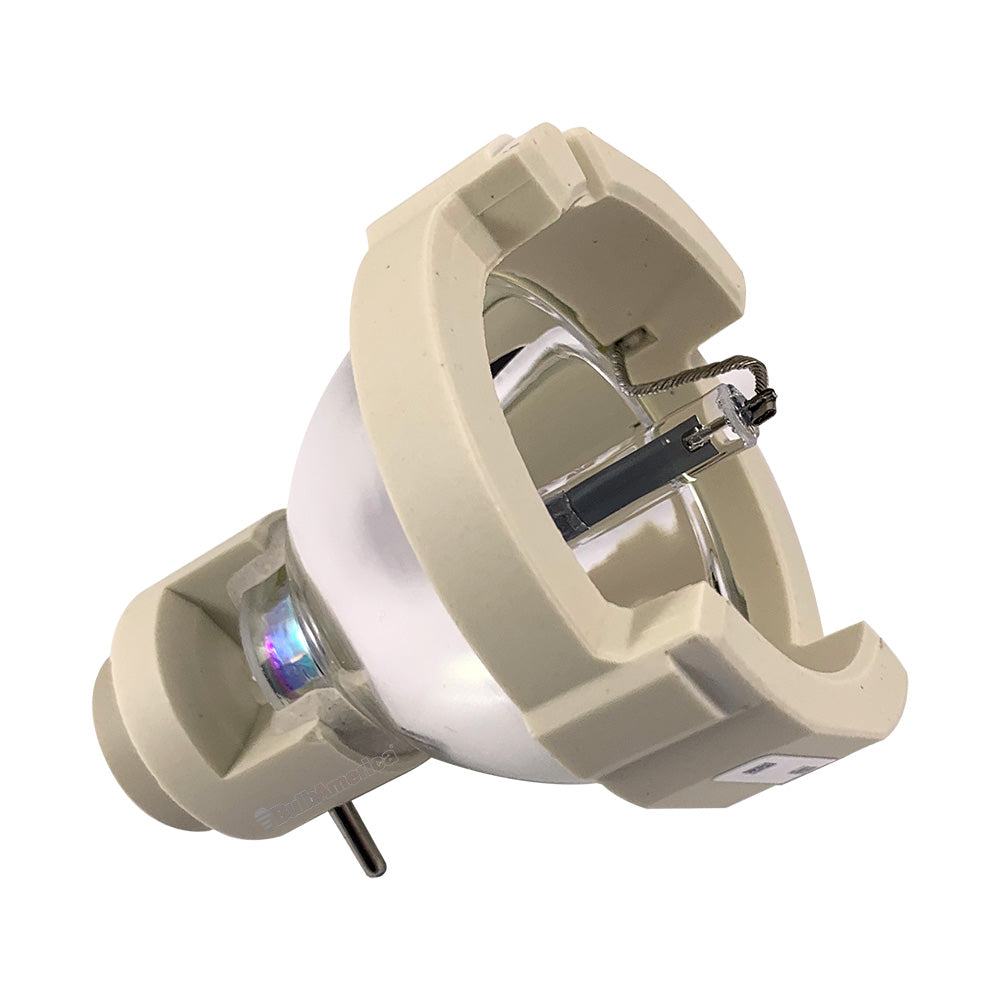

OSRAM XBO R 100W/45 OFR 100W 14V xenon short arc with reflector

OSRAM SKU: 69197
$51999 $904.99 USD
43 in stock




1

Description

OSRAM 69197 XBO 100w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years. This 69197 is used in the following equipment:
- Roche Light Cycler 480 replacement lamp

Key Features and Benefits
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation

Specs

Abbreviation Name XBOR100W45OFR
Application Lightguide / Boroscopy, Fiber Optic, Minimal Invasive Surgery, Endoscopy
Average Rated Life - Horizontal (hr) 500
Average Rated Life (hr) 500
Base Special
Bulb KO176
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Current (A) 7
Diameter d (in) 2.52
Diameter d (mm) 64
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 83
Length l1 max. (mm) 83
Length l2 (mm) 75
Length l2 max. (mm) 75
Luminous Area w x h (mm) 0.4 x 0.9
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 83
Nominal Wattage (W) 100
Operating Position p 15
Reflector Coating 64
Type of Current DC
Working Distance a (mm) 45
CA Prop 65 Yes
CA Prop 65 Material Mercury
