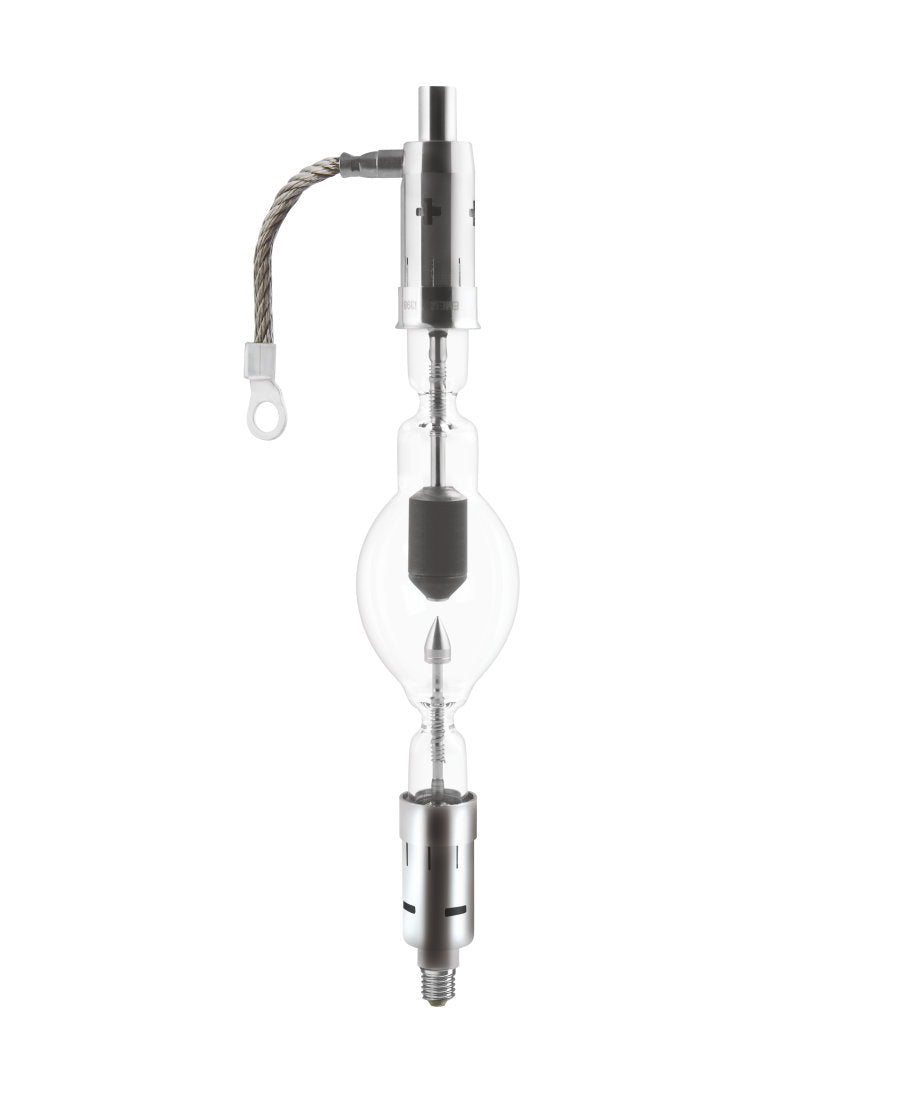

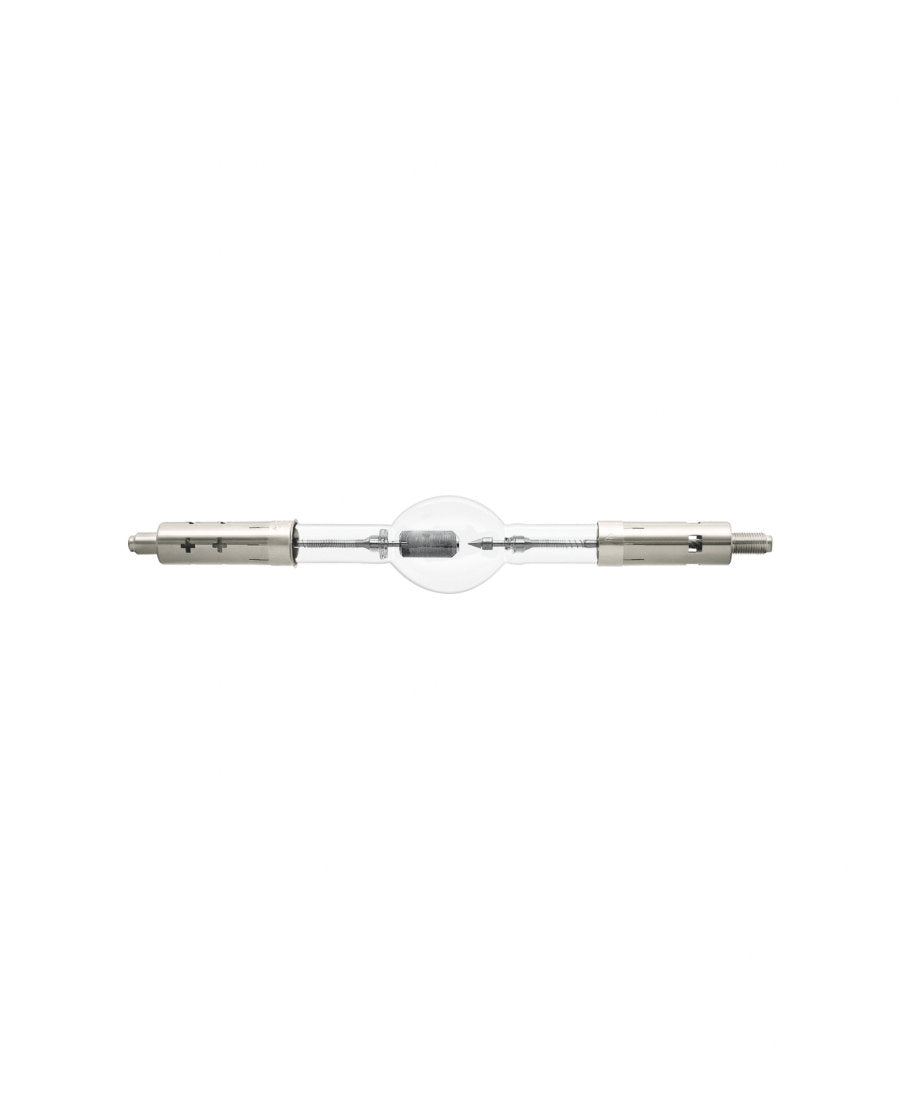

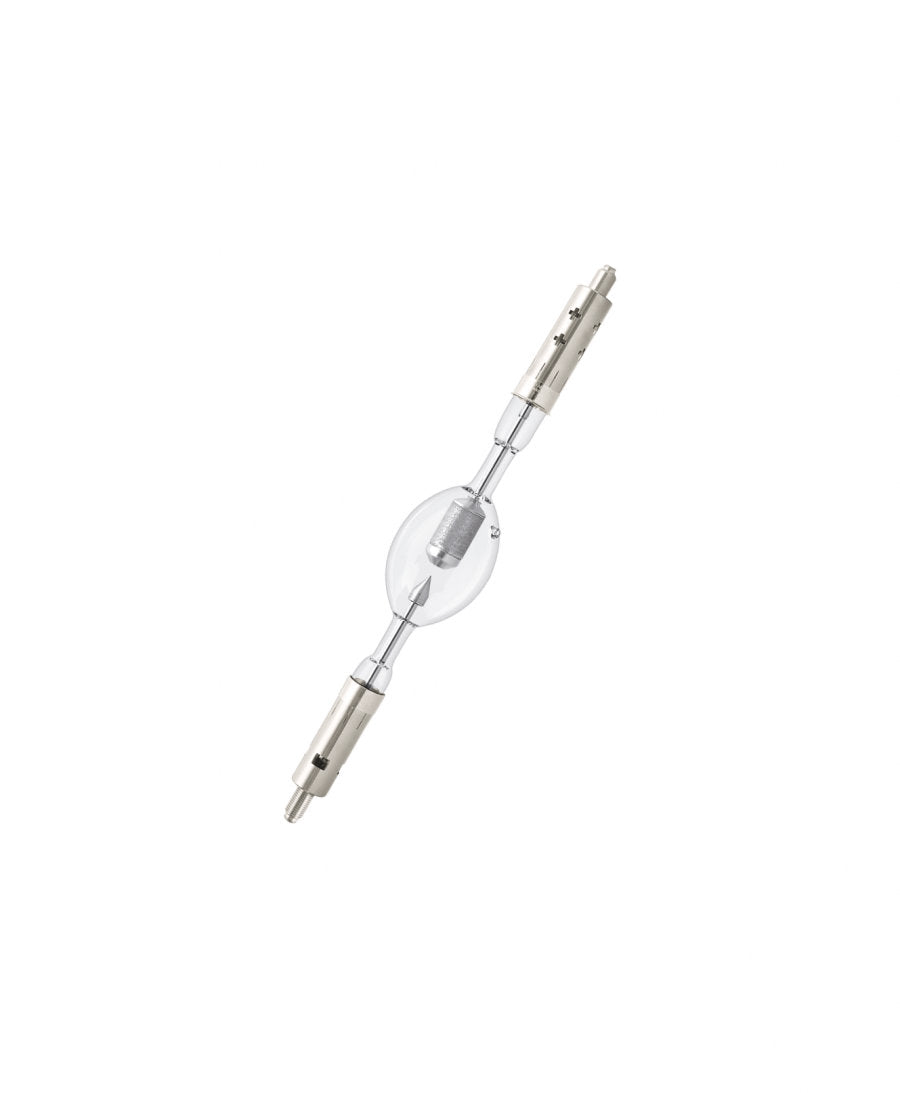

OSRAM XBO 2000W DTP OFR, XBO DTP for Digital Projection Lamp

OSRAM SKU: 69155
$1,07299 $1,604.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 87.0 A
Current control range 64.95 A
Nominal Wattage 2000.00 W
Nominal Voltage 25.0 V
Diameter 55.0 mm
Length 405.0 mm
Length with base excl. base pins/connection 354.00 mm
Light center length (LCL) 160.0 mm
Product weight 475.00 g
Electrode gap cold 4.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 2400 h
Service Warranty Lifetime 3500 h
Base anode (standard designation) SFa27-14
Base cathode (standard designation) SFc27-14
Cooling Forced
Burning position Other
EAN 4008321191533
Unit VS
Piece 1
Dimension l x w x h 590mm x 229mm x 234mm
Weight 1733.50g
Volume 31.62dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
