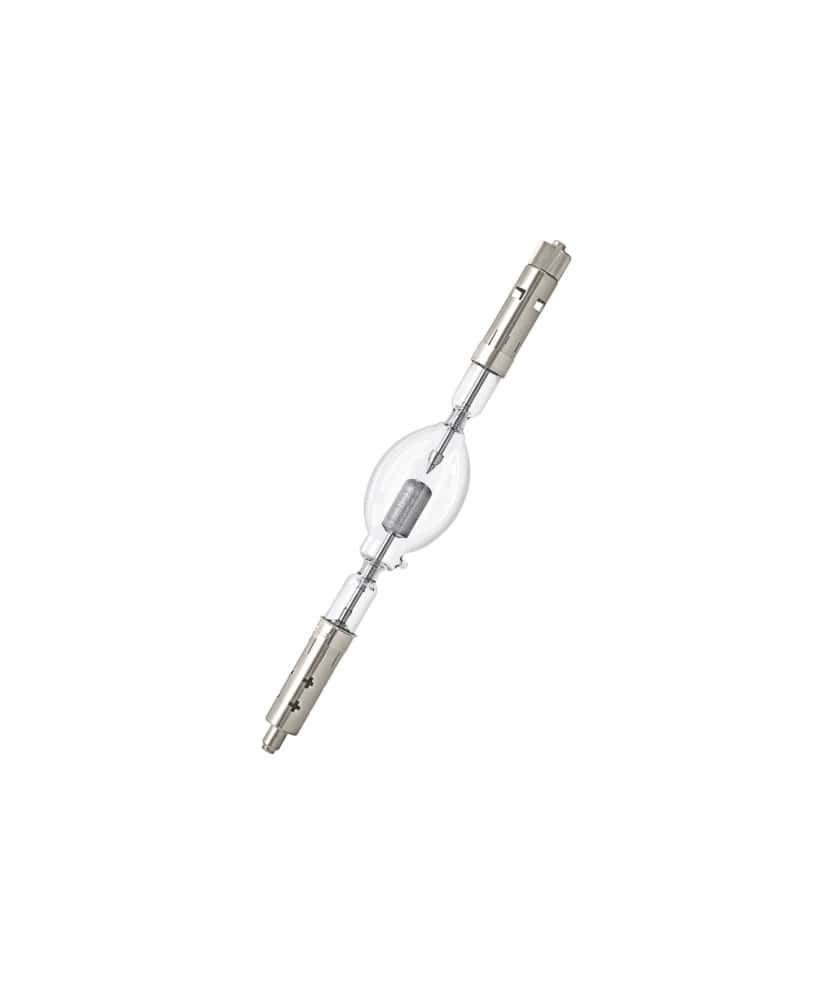

OSRAM XBO 2000W/HTP XL OFR 2000W Xenon HighPressure Cinema Film Projection Lamp
SKU: 69495Description
OSRAM 69495 2000w OFR Xenon Discharge Lamps are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators.
The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems.
Key Features and Benefits
- High luminance (point source)
- Color temperature approximately 6000K - simulates daylight
- Continuous spectrum in the visible range
- High color rendering >95
- High arc stability
- DC operation
- Hot restart
Specs
Abbreviation Name | XBO2000WHTPXLOFR |
Application | Cinema Film Projection |
Magnetic Arc Stabilization | Required |
Average Luminance (cd/cm2) | 75000 |
Base | Special Double Ended |
Base Anode | SFa27-14 |
Base Cathode | SFc24-14 |
Warranty Hours | 3500 |
Bulb | KO157 |
Class | C (gas) |
Color Rendering Index (CRI) | 98 |
Color Temperature (K) | 6000 |
Cooling | Required |
Current (A) | 70 |
Current Control Range (A) | 50-85 |
Diameter d (in) | 2.047 |
Diameter d (mm) | 52 |
Distance a (mm) | 142.5 |
Electrode Gap (cold) (mm) | 5.8 |
Family Brand Name | XBO |
Hot Restart | Yes |
Lamp Finish | Clear |
Length l1 max. (mm) | 375 |
Length l2 max. (mm) | 322 |
Light Center Length - LCL (mm) | 142.5 |
Luminous Area w x h (mm) | 1.3 x 4.8 |
Luminous Flux (lm) | 80000 |
Luminous Intensity (cd) | 7500 |
Maximum Base Temperature °C | 230 |
Maximum Overall Length - MOL (mm) | 370 |
Nominal Voltage (V) | 27 |
Nominal Wattage (W) | 2000 |
Operating Position | s30 p30 |
Reflector Coating | 52 |
Type of Current | DC |
CA Prop 65 | Yes |
CA Prop 65 Material | Mercury |
