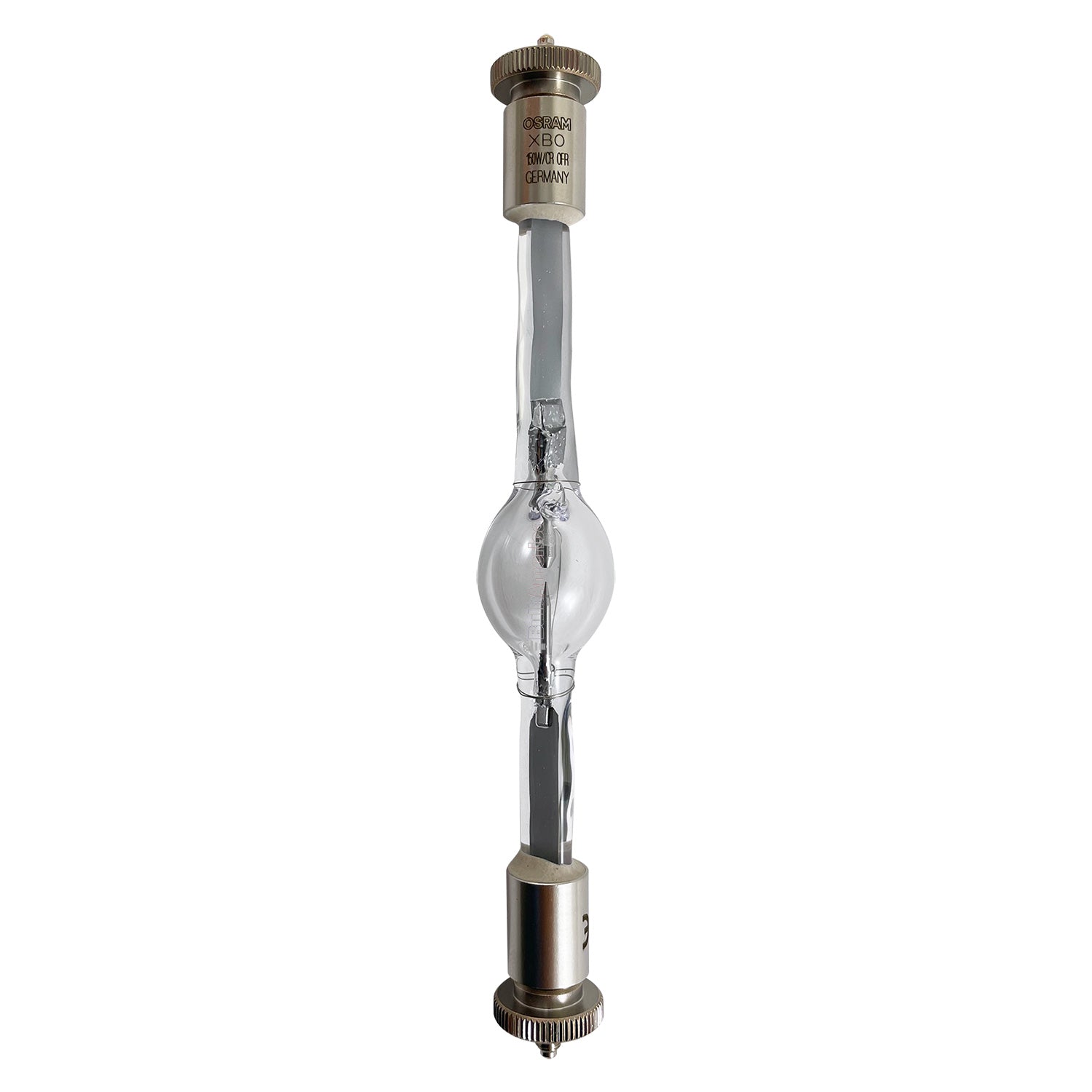

OSRAM XBO 150W/CR OFR 150W 18V xenon short arc double-ended

OSRAM SKU: 69237
$42299 $737.99 USD
95 in stock




1

Description

OSRAM 69237 XBO 150w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years.

Key Features and Benefits:
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation

Specs

Abbreviation Name XBO150WCROFR
Application Reprography
Magnetic Arc Stabilization Required
Average Luminance (cd/cm2) 20000
Average Rated Life - Horizontal (hr) 1200
Average Rated Life - Vertical (hr) 3000
Base Anode SFc12-4
Base Cathode SFcX12-4
Bulb KO131
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Current (A) 8.5
Diameter d (in) 39.331
Diameter d (mm) 999
Distance a (mm) 57
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 150
Length l1 max. (mm) 150
Length l2 (mm) 127
Length l2 max. (mm) 127
Light Center Length - LCL (mm) 57
Luminous Area w x h (mm) 0.5 x 1.6
Luminous Flux (lm) 2900
Luminous Intensity (cd) 290
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 150
Nominal Wattage (W) 150
Operating Position s15 p15
Reflector Coating 999
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
