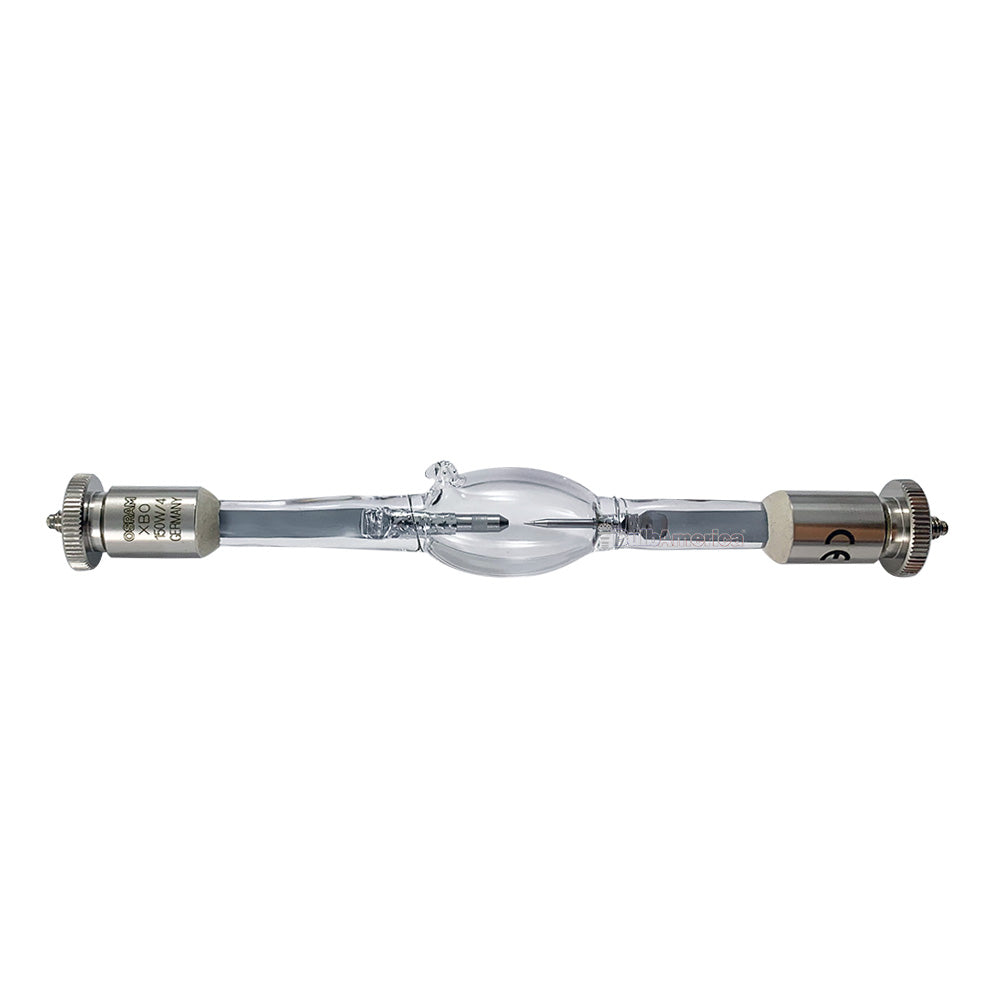

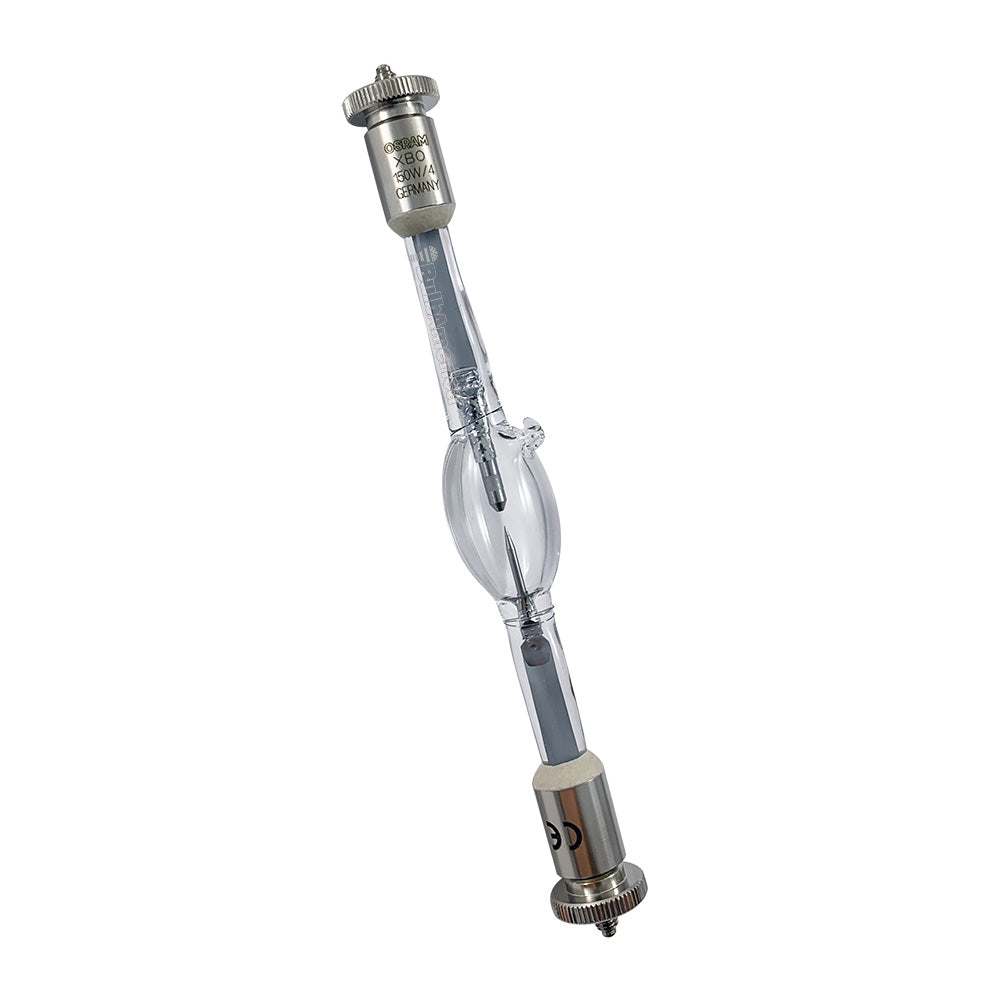

OSRAM XBO 150W/4 150W KO131 xenon short arc double-ended

OSRAM SKU: 69238
$49899 $868.99 USD
43 in stock




1

Description

OSRAM 69238 XBO 150w OFR Xenon Short Arc Discharge Lamps are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95.
This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas.
In particular, surgical devices that benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years.

Key Features and Benefits:
- High luminance / radiance with intense point source
- Broad, continuous spectral distribution
- High color rendering >95
- High arc stability
- DC operation

Specs

Abbreviation Name XBO150W4
Application Microscopy
Average Luminance (cd/cm2) 15000
Average Rated Life - Vertical (hr) 1200
Base Anode SFc12-4
Base Cathode SFcX12.4
Bulb KO131
Class C (gas)
Color Rendering Index (CRI) 98
Color Temperature (K) 6000
Current (A) 7.5
Diameter d (in) 39.331
Diameter d (mm) 999
Distance a (mm) 57
Family Brand Name XBO
Hot Restart Yes
Lamp Finish Clear
Length l1 (mm) 150
Length l1 max. (mm) 150
Length l2 (mm) 127
Length l2 max. (mm) 127
Light Center Length - LCL (mm) 57
Luminous Area w x h (mm) 0.5 x 2.2
Luminous Flux (lm) 3000
Luminous Intensity (cd) 300
Maximum Base Temperature °C 230
Maximum Overall Length - MOL (mm) 150
Nominal Wattage (W) 150
Operating Position s 15
Reflector Coating 999
Type of Current DC
CA Prop 65 Yes
CA Prop 65 Material Mercury
