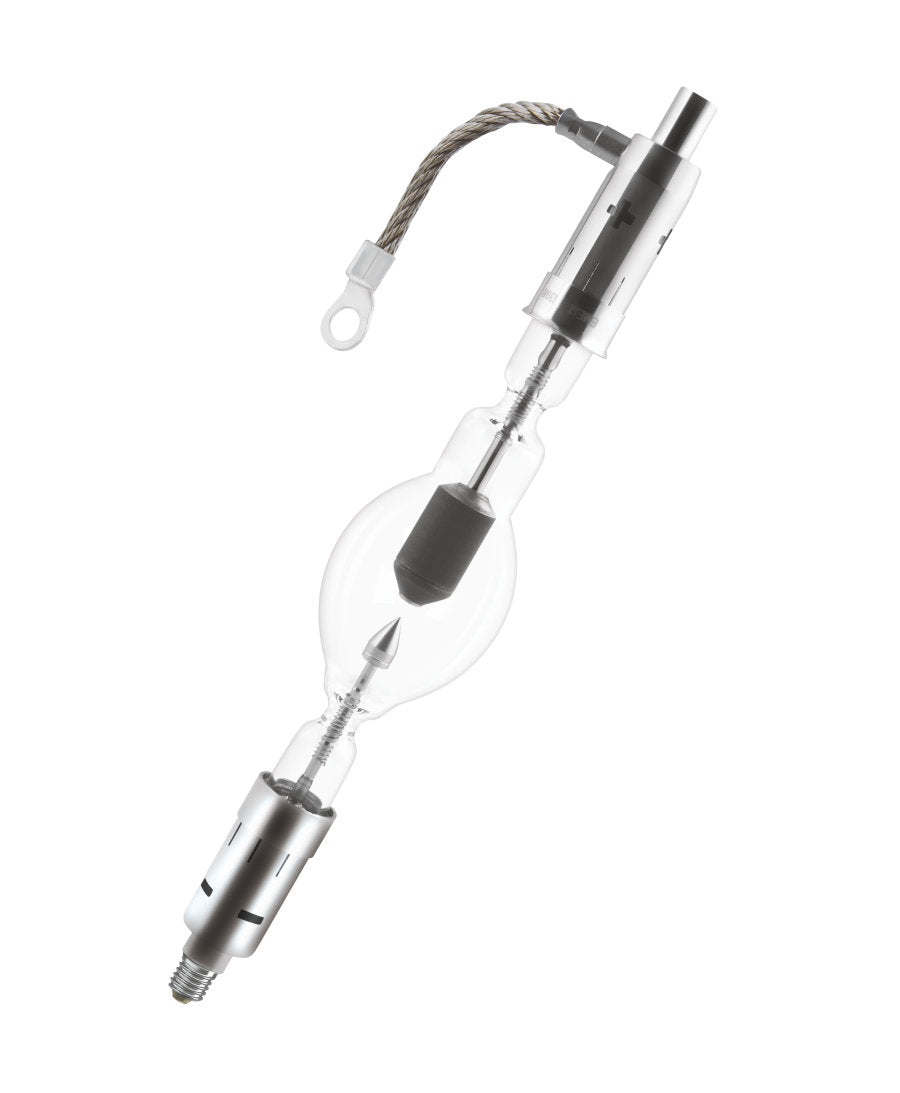

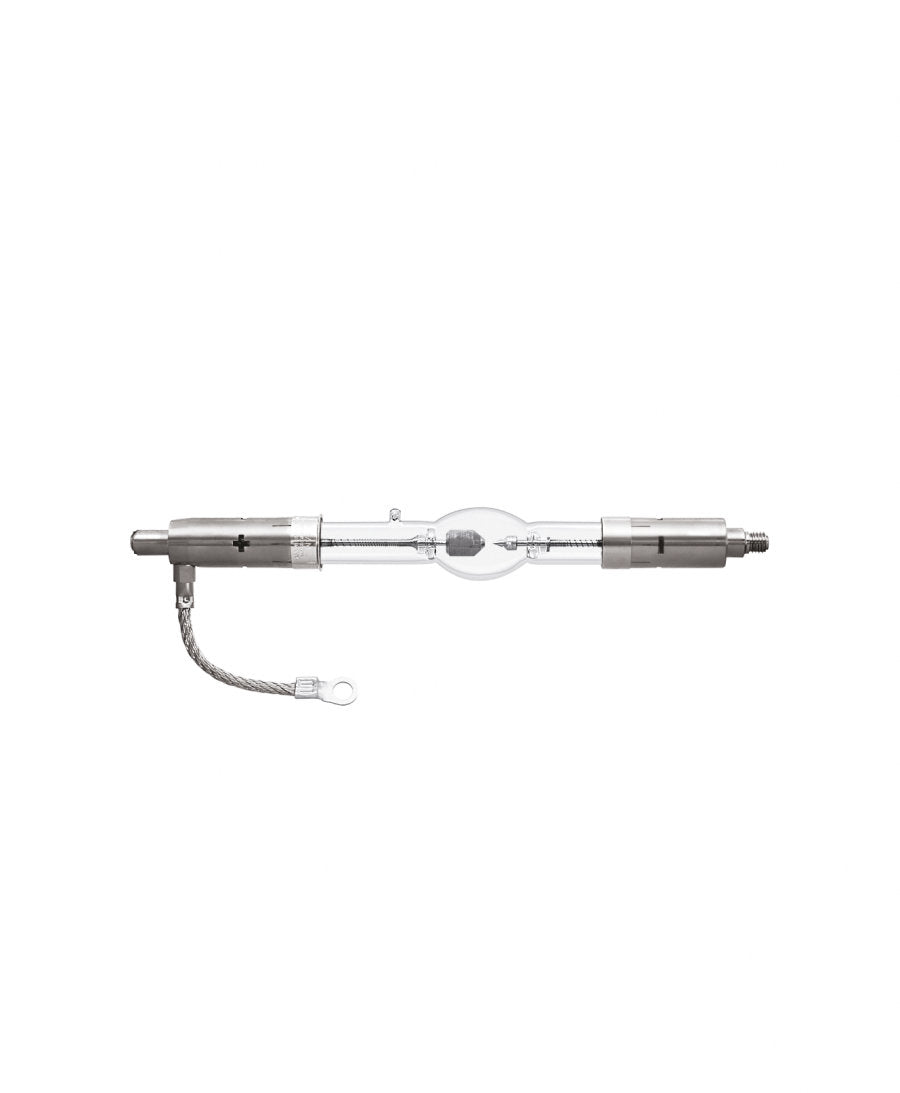

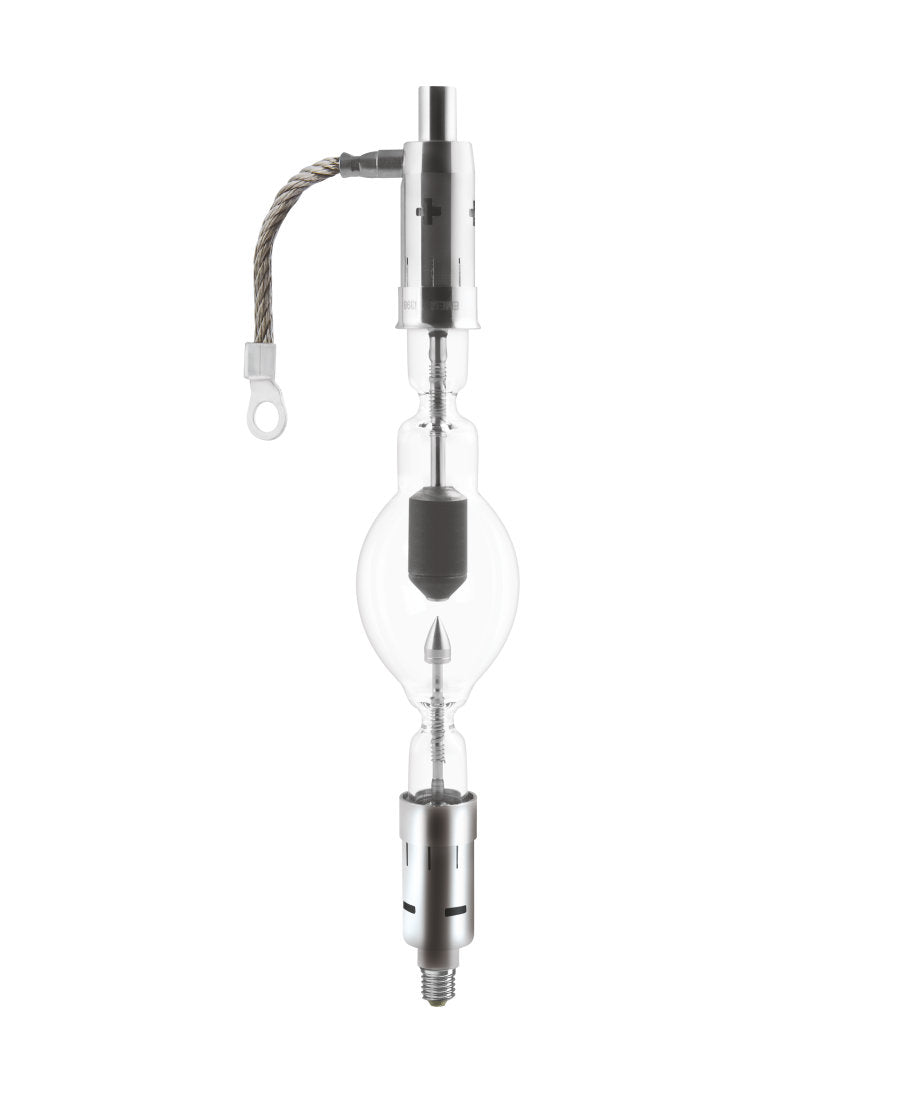

OSRAM XBO 1200W DHP OFR, XBO DHP for Digital Projection Lamp

OSRAM SKU: 69596
$1,14899 $1,718.99 USD

Sorry, this product is temporarily out of stock, please check Related Products below, or use the email for stock updates


0

Description

Osram XBO 1200W/DHP OFR, XBO DHP for Digital Projection Lamp Product features
- Short arc with very high luminance for brighter screen illumination
- Constant color temperature of 6,000 K throughout the entire lamp lifetime
- Easy to maintain
- High arc stability
- Instant light on screen thanks to hot restart function
- Wide dimming range
Areas of application
- Digital Projection
- Film Projection
- Spotlights
- Searchlights
- Solar Simulation

Specs

Nominal current 57.0 A
Current control range 41.63 A
Nominal Wattage 1200.00 W
Nominal Voltage 22.0 V
Diameter 46.5 mm
Length 345.0 mm
Length with base excl. base pins/connection 295.00 mm
Light center length (LCL) 123.0 mm
Cable/wire length, input side 130 mm
Cable length 130.0 mm
Product weight 446.00 g
Electrode gap cold 3.5 mm
Max. permitted ambient temp. pinch point 230c
Lifespan 3000 h
Service Warranty Lifetime 3800 h
Base anode (standard designation) SFaX30-14
Base cathode (standard designation) SFc30-16
Cooling Forced
Burning position s15/p15
EAN 4062172030472
Unit VS
Piece 1
Dimension l x w x h 500mm x 204mm x 204mm
Weight 1415.00g
Volume 20.81dm3
CA Prop 65 Yes
CA Prop 65 Material Mercury
