Osram TP-30 GY5.3 lamp holder ceramic socket has a rating of 4 stars based on 1 reviews.

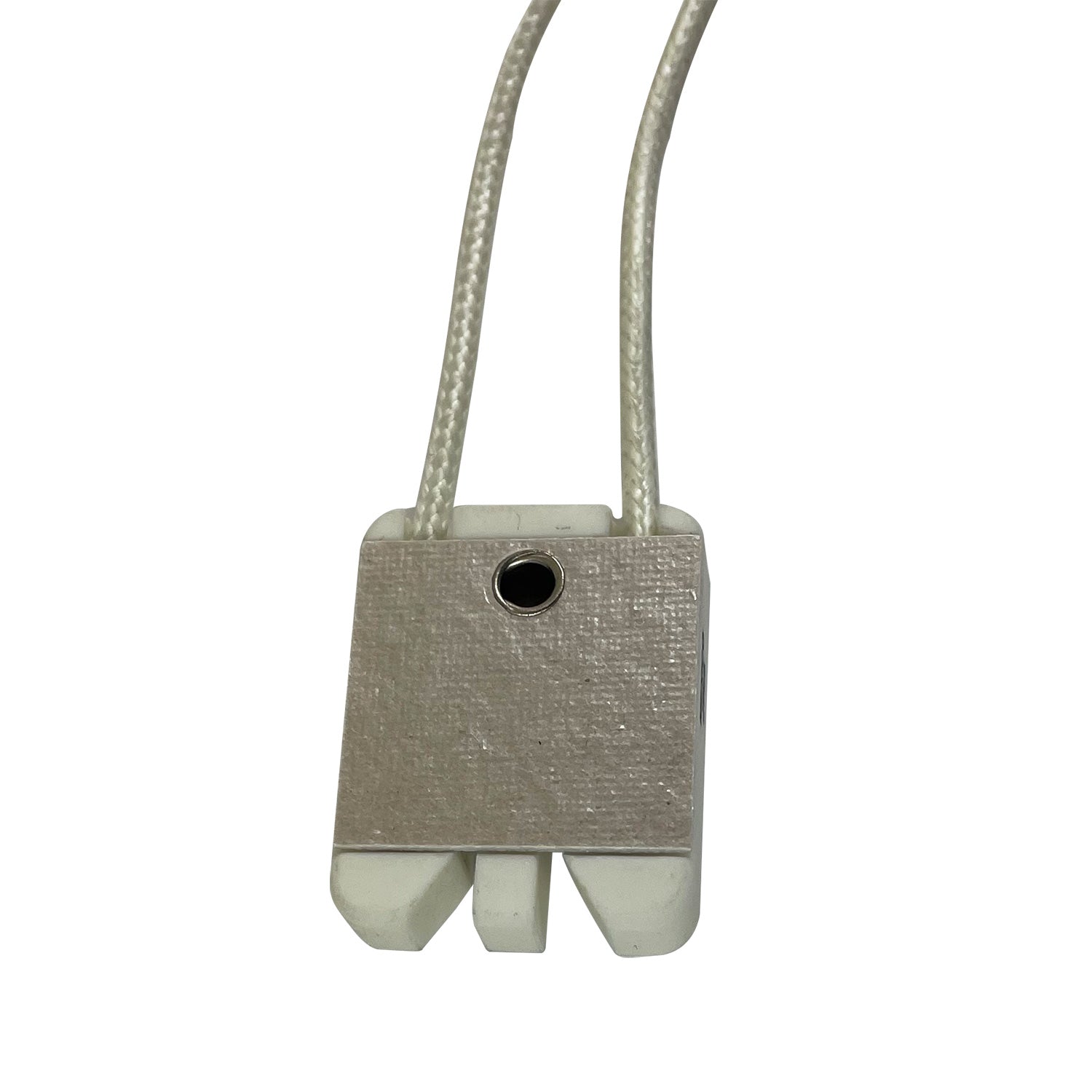

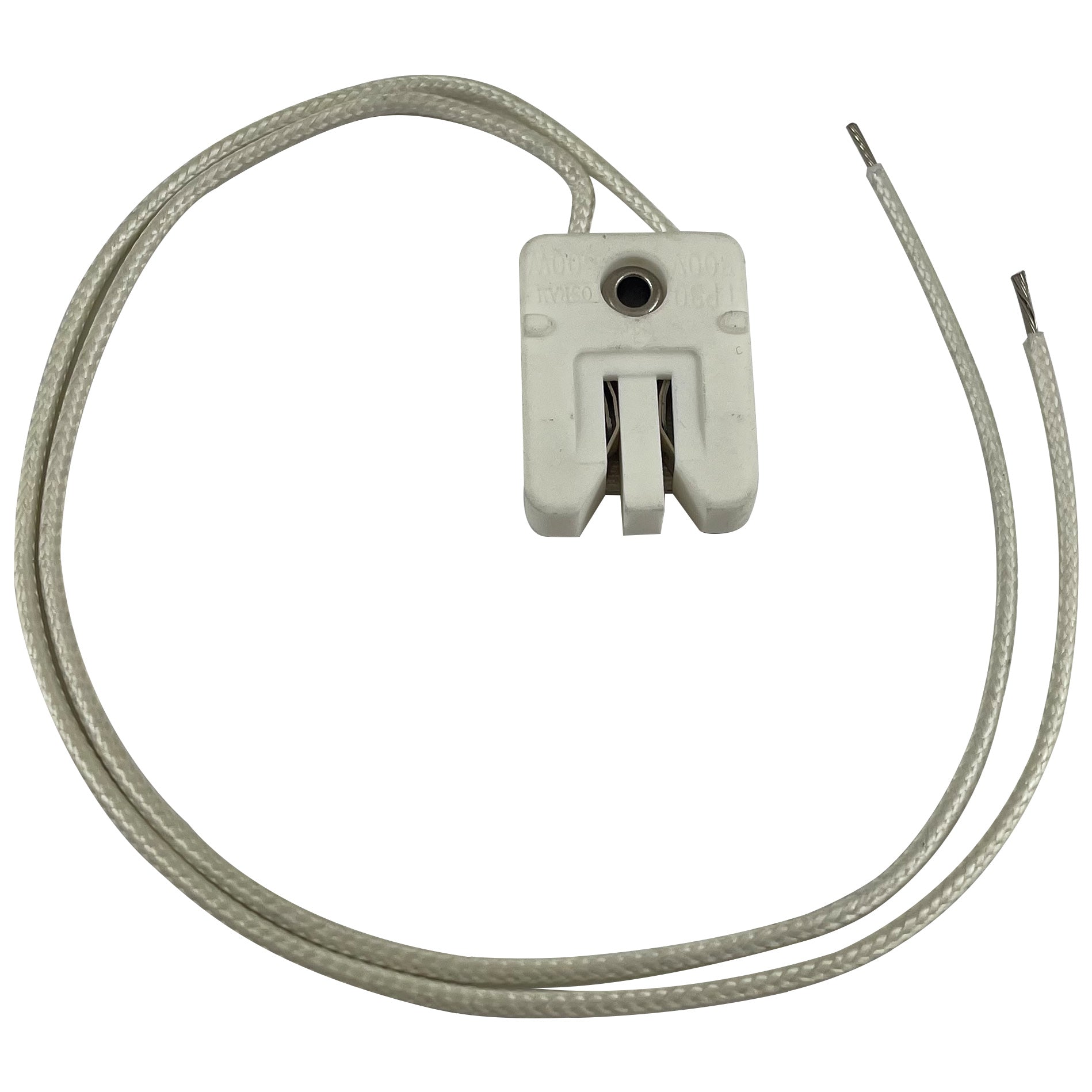

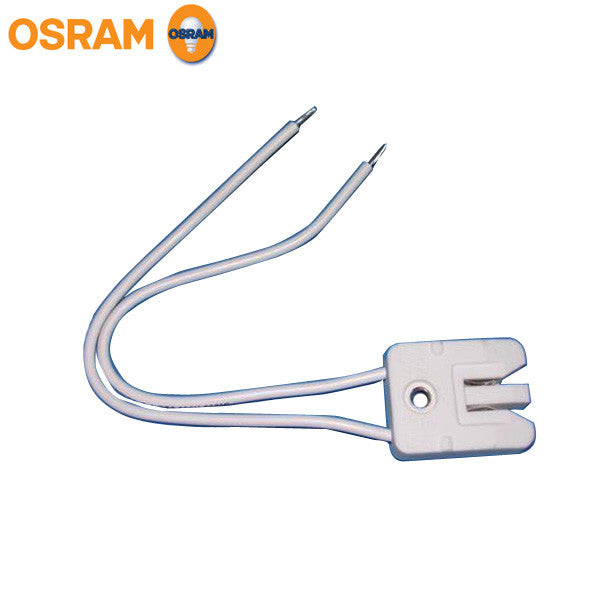

Osram TP-30 GY5.3 lamp holder ceramic socket

OSRAM SKU: 69022
$1599 $25.99 USD
227 in stock




0

Description

This item is discontinued, please check Related Products below for replacement items.

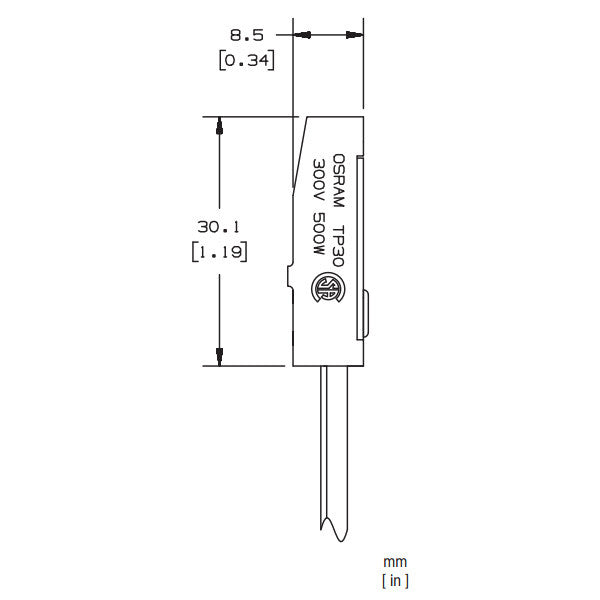

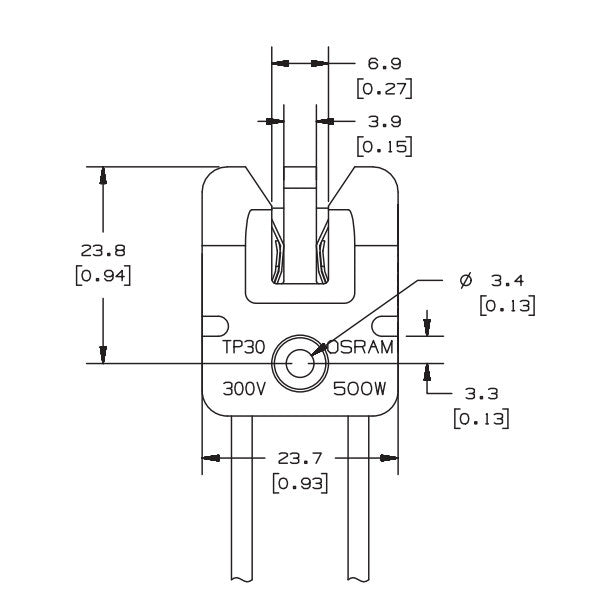

This lamp holders is for GY5.3 base for bulbs like:- ELH- ENX-5 - FLE- ENG- ENH-5 - FXL- ENH- ENX-7 - FXL-HL- ENH- ETJ- ENX- EVW Body Material: CERAMICContact Material: SILVER PLATED BRASSCSA File No.: LR20904Socket Height: 0.35 in (8.9mm)Socket Length: 1.19 in (30.2mm)Socket Width: 0.93 in (23.6mm)Lamp Base Reference GY5.3Lead Strip Length: 12 in (305mm)Wire Gauge: 18AWGMaximum Operating Temperature: 200C Maximum Voltage: 300VMaximum Wattage: 500W Wire Color: WHITE Wire Type: ULSFF1Underwriters Laboratories File No.: E31557

Specs

Application Socket

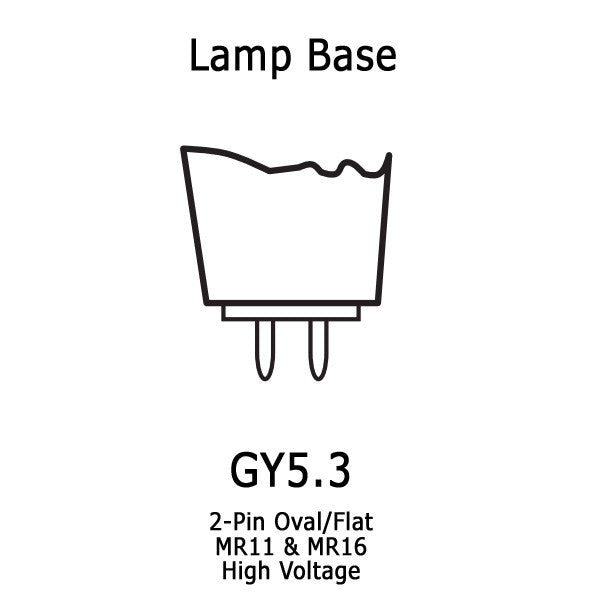

Base GY5.3 2-Pin
Color White
Contact Material Silver Plated Brass
Operation Temperature (F) 392
Type TP30
Voltage (V) 300
Wire Guage/Type 12 inch AWG18 SFF1
Length (in) 1.19
Width (in) 0.93
Height (in) 0.35
