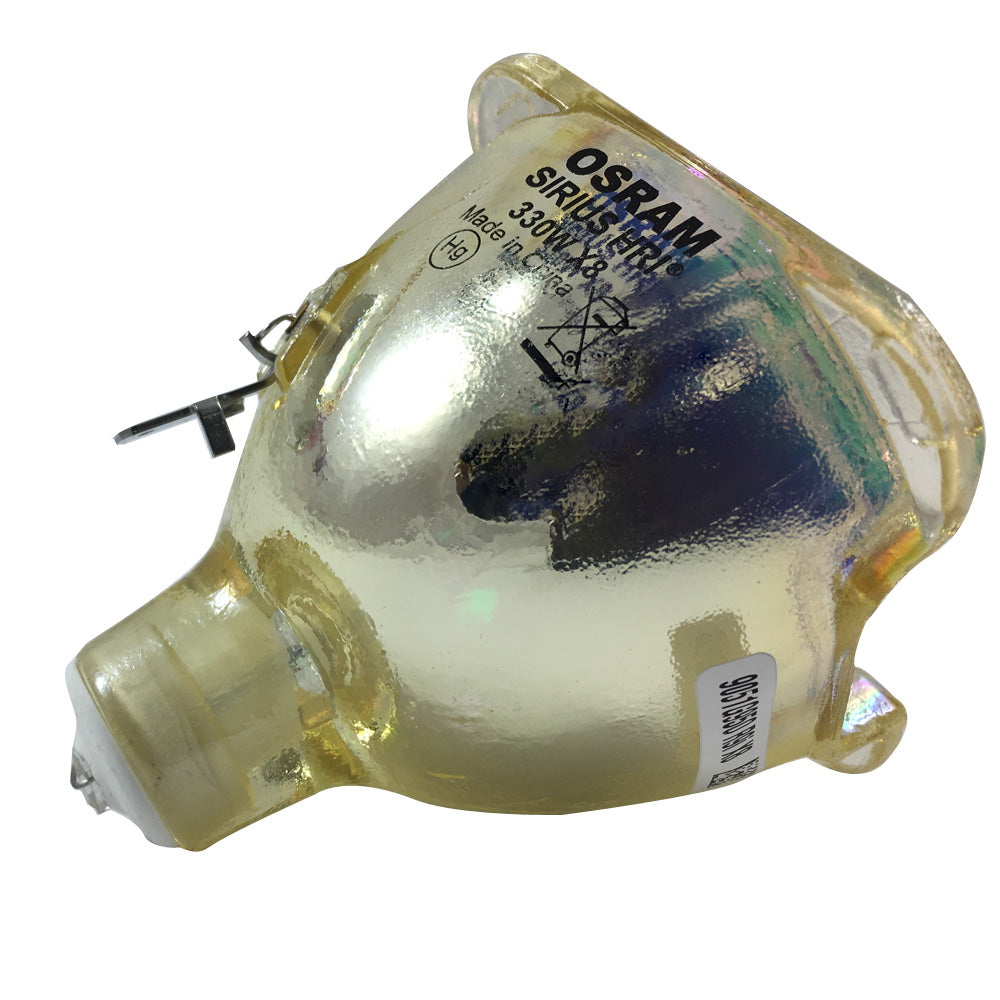

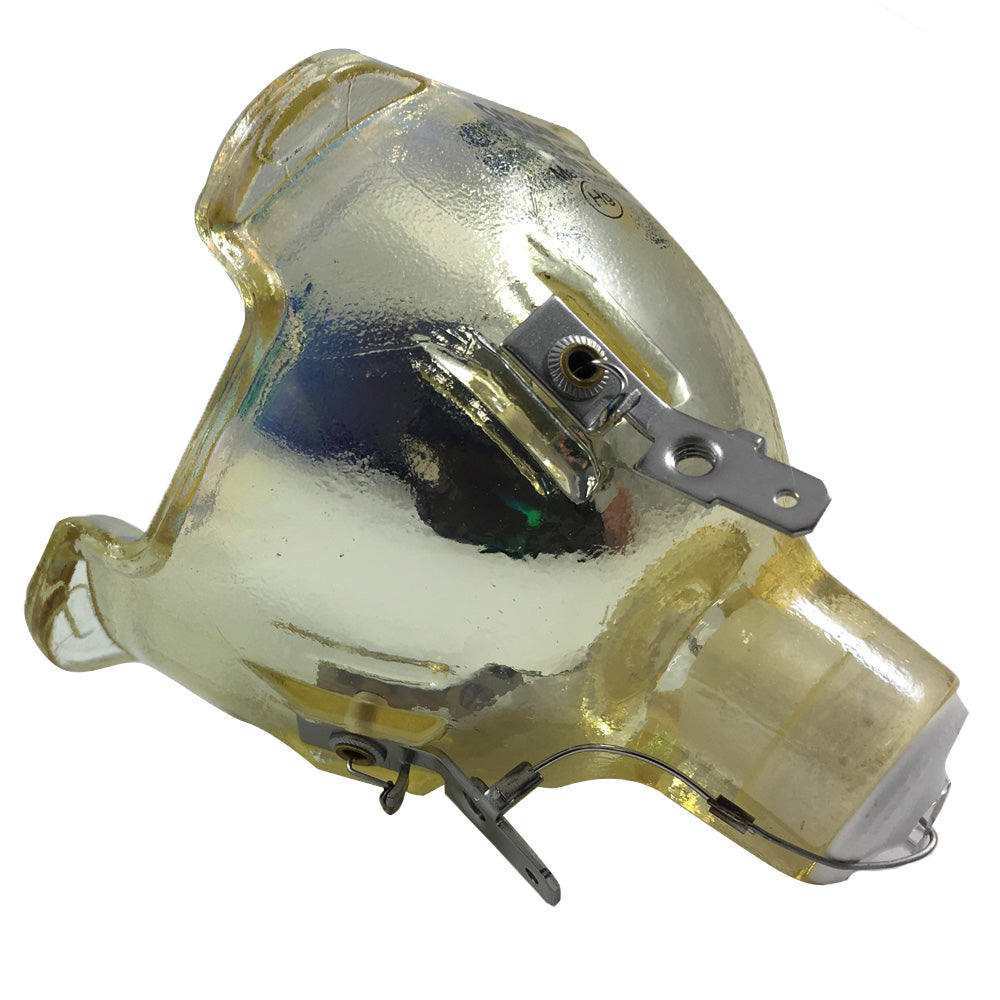

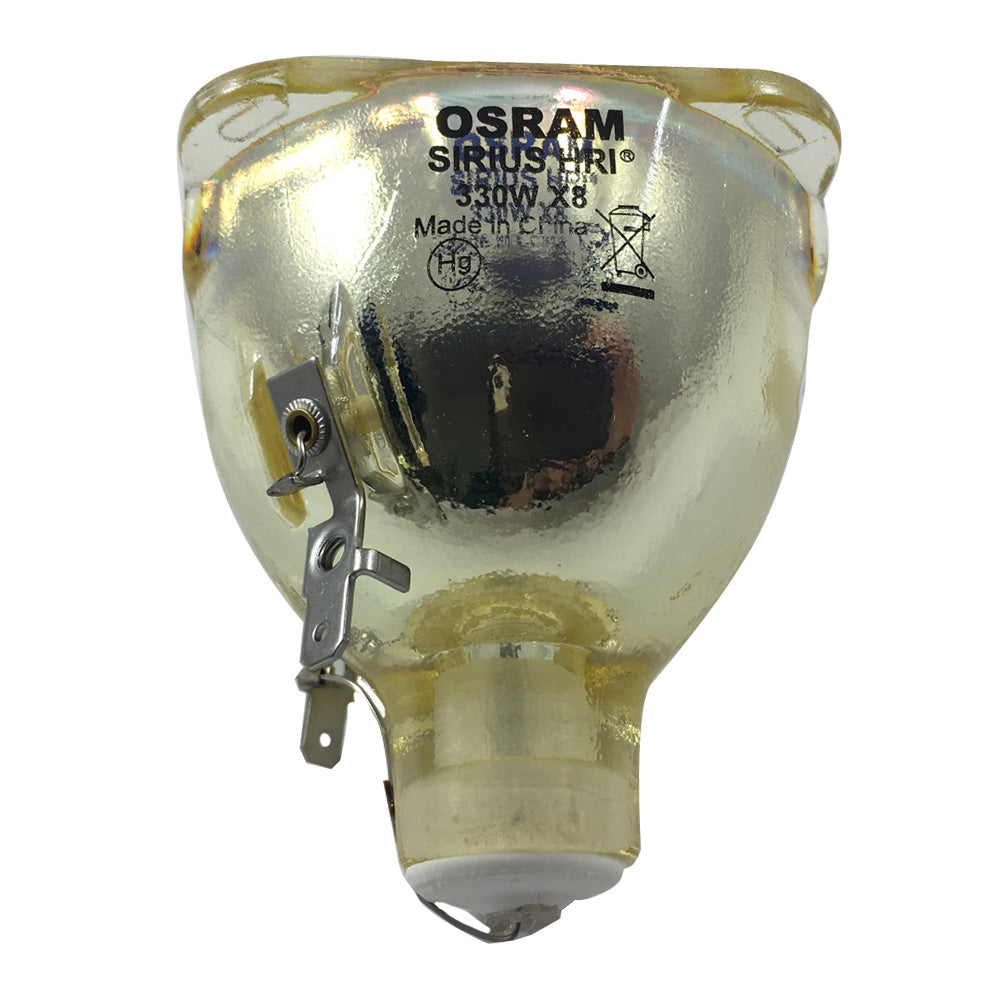

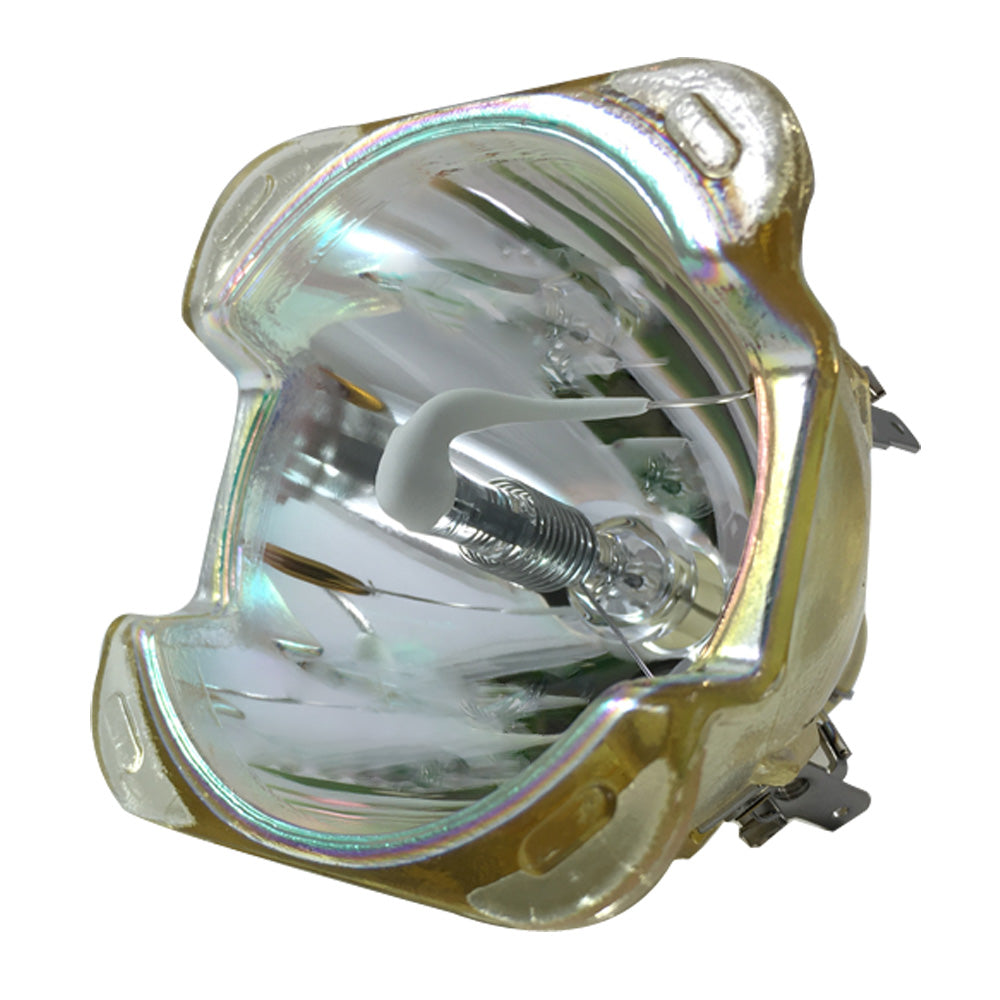

SIRIUS HRI 330W X8 - OSRAM Mercury Short Arc reflector HID Light Bulb

SIRIUS HIR 330W X8 - Mercury Short Arc reflector high intensity discharge Light Bulb.
The SIRIUS HRI 330W X8 and Philips MSD Platinum 16 R are compatible replacement bulbs.

OSRAM SIRIUS HRI are bright, high performing compact discharge lamps designed to deliver spectacular light effects in small, lightweight moving head fixtures.
As the designed in lamp for many major moving head manufacturers, the SIRIUS HRI provides exceptional brightness and beam control with long average lifetimes.

Features:
- Lightweight and compact reflector lamps with ECG
- Specifically designed for small and lightweight moving heads
- Optimized burner design allows any operating position
- Bright light for brilliant light effects
- Long lifetime
- Stable light output over the entire lifetime

Cross Reference:
- OSRAM 54738 SIRIUS HRI 330W X8
- Philips MSD Platinum 16 R

The SIRIUS HRI 330W X8 lamp is used in following equipment:
- CHAUVET Professional Legend 330SR Spot
- CHAUVET Professional Rogue RH1 Hybrid
- Cindy PRO-16R
- Clay Paky Sharpy Plus

Abbreviation Name	SIRIUS HRI 330W X8
Base	Spec
Bulb Type	High Intensity Discharge Bulbs (HID)
Color Rendering Index (CRI)	85
Color Temperature	8000K
Diameter (in)	2.28
Electrode Gap (mm)	1.2
Length (in)	2.6
Luminous Flux (lm)	12800
Rated Life (Hrs)	1500
Reflector	E21.9
Wattage (W)	330W
Working Distance (mm)	37.4
CA Prop 65	Yes
CA Prop 65 Material	Mercury

Manual:

OSRAM Sirus HRI Family
Osram SIRIUS_HRI Catalog
