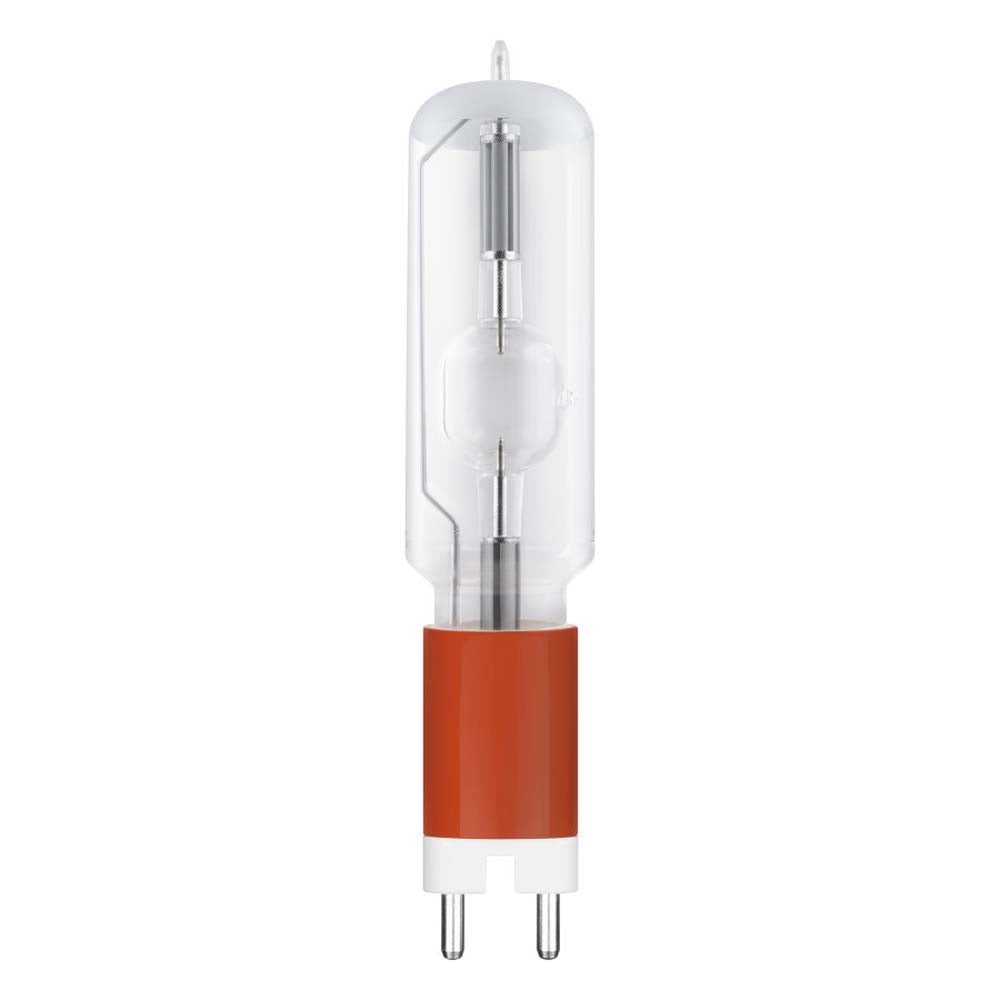

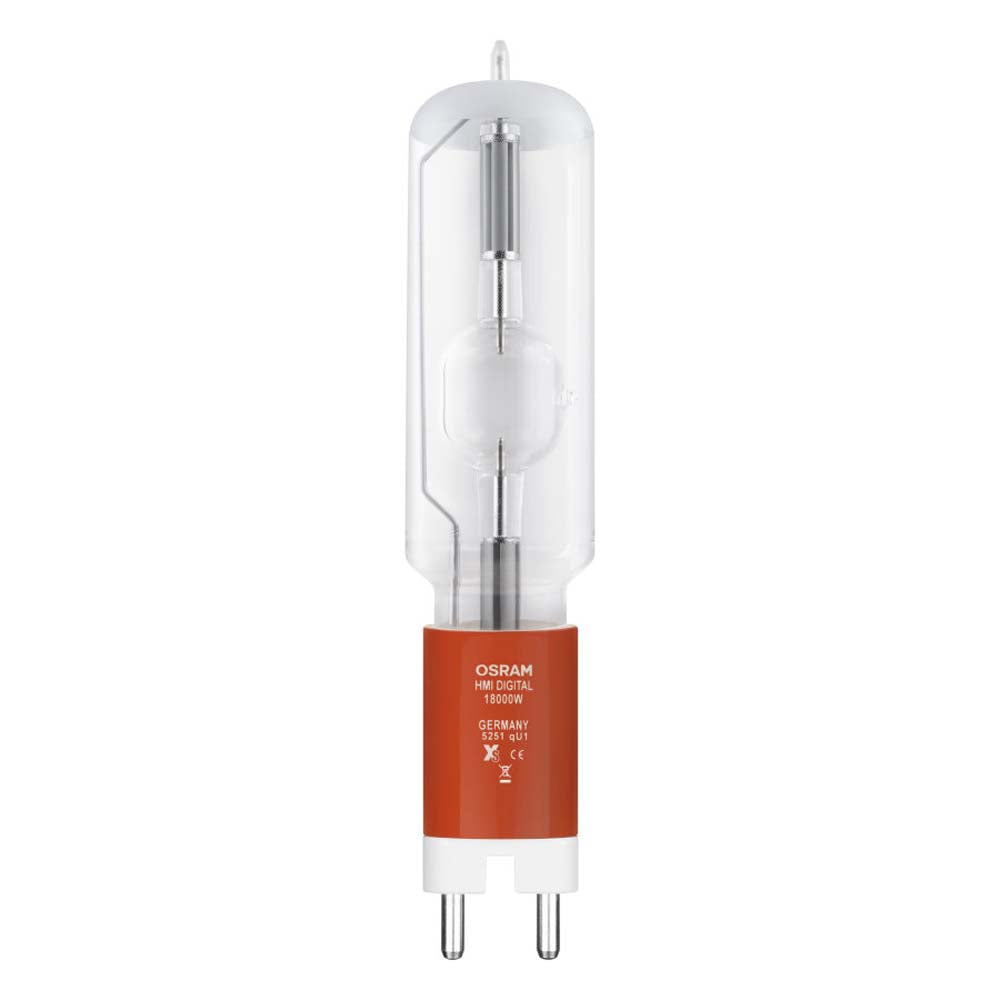

OSRAM HMI DIGITAL 18000W VS1 GX51 Mogul Bipost Base Stage and Studio HID Lamp

OSRAM HMI DIGITAL 18000W VS1 is compact light sources offer extremely high luminous flux and exceptionally long life.The new extremely robust GX51 base has been developed to meet the particularly high demands of modern film and TV lighting, especially when needed in outdoor applications. Like all HMI lamps, these new stars are impressive for their daylight temperature of 6000 K, high color rendering index of more than 90 and excellent luminous efficacy. Excellent hot-restart.

Features:
- Reduced flicker when used with high-speed electronic ballasts (up to 1000 Hz and higher)
- Suited for both analog and digital film productions
- High intensity light providing true color performance with a CRI>90
- Capable of hot restrike ignition
- High color stability with average changes in color temperature during lamp life only 1°K/hr
- High energy efficiency providing up to 100 LPW​
- Enhanced safety with UV-Stop (UVS) feature on all DIGITAL types

Areas of application:
- Studio, TV and film
- Professional Photography
- Solar Simulation

Manufacturer	OSRAM
Abbreviation Name	HMI DIGITAL 18000W VS1
Bulb Type	High Intensity Discharge Bulbs (HID)
PartNumber	59585
Base	GX51 Mogul Bipost
Wattage	18000
Volts	225
Color Rendering Index (CRI)	95
Color Temperature (K)	6000K
Lamp Finish	Clear
Luminous Flux (LM)	1600000
Maximum Overall Length (in)	19.49
Rated Life	350 hrs
Shape	T31
MOL (in)	35.4
Diameter (in)	15.7
CA Prop 65	Yes
CA Prop 65 Material	Mercury
UPC	4062172123372
EAN	4008321098955

Manual:

59585 Data Sheet
