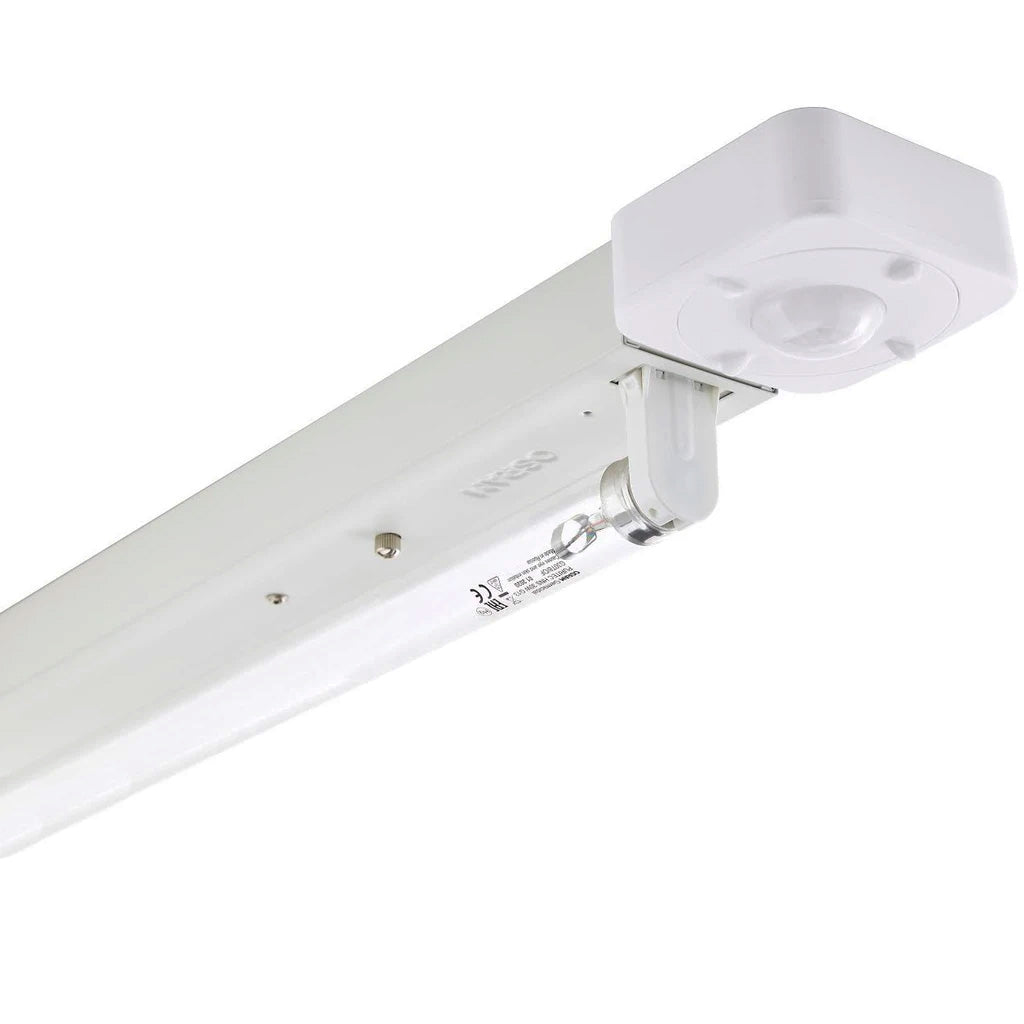

OSRAM AirZing PRO 5030 - UV-C Air & Surface Purifier - 42in Germicidal Light Fixture

OSRAM AirZing PRO 5030 - UV-C Air & Surface Purifier - 42in Germicidal Light Fixture - with IR Sensor

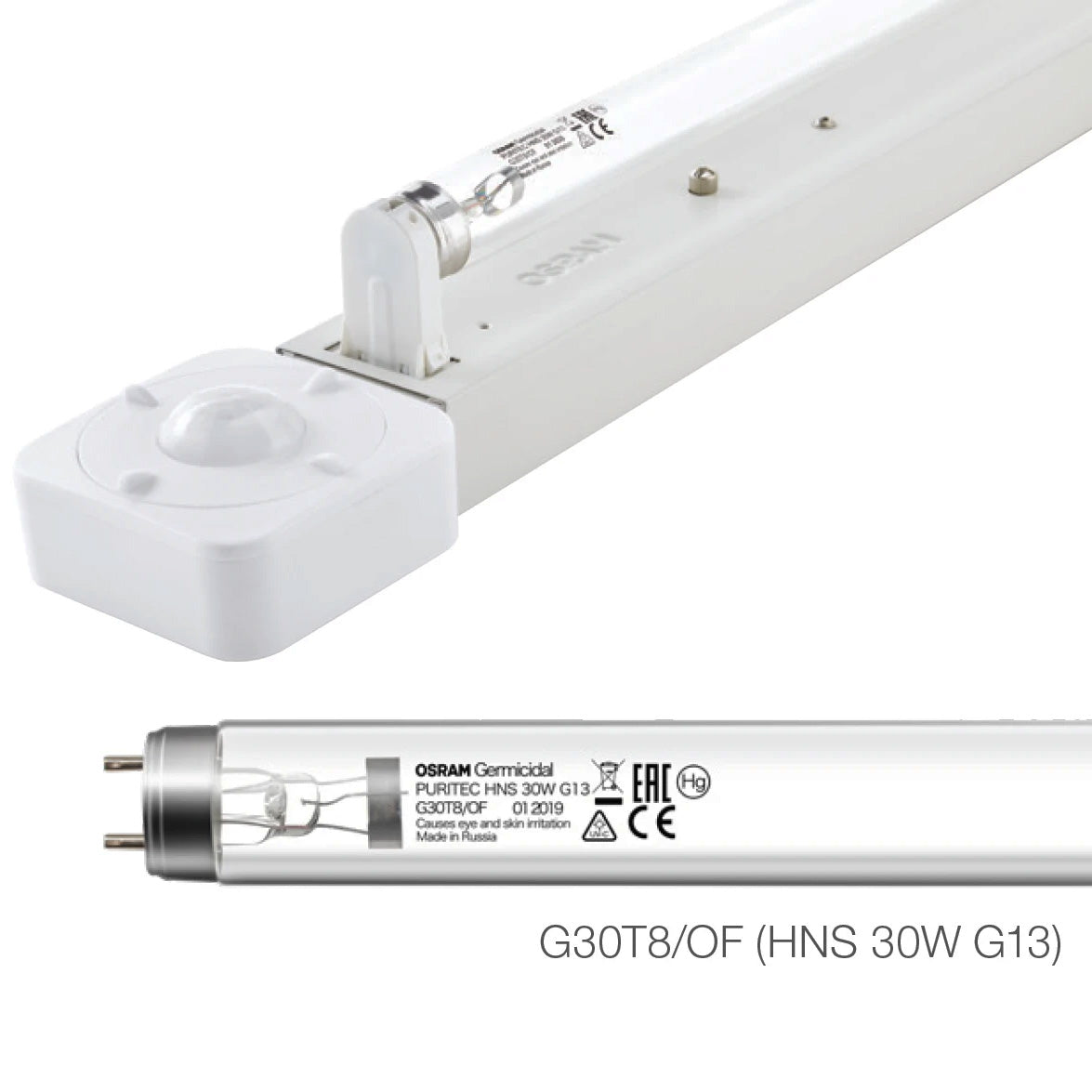

The OSRAM AirZing PRO 5030 fixture is powered by an OSRAM germicidal PURITEC® HNS® 30W lamp, which emits high intensity UV-C radiation with a wavelength of 253.7nm.

The radiation produced by the AirZing PRO 5030 UNIV is used to disinfect air and surfaces.

Research shows that UV-C lamps can destroy up to 99.9% of viruses and bacteria.

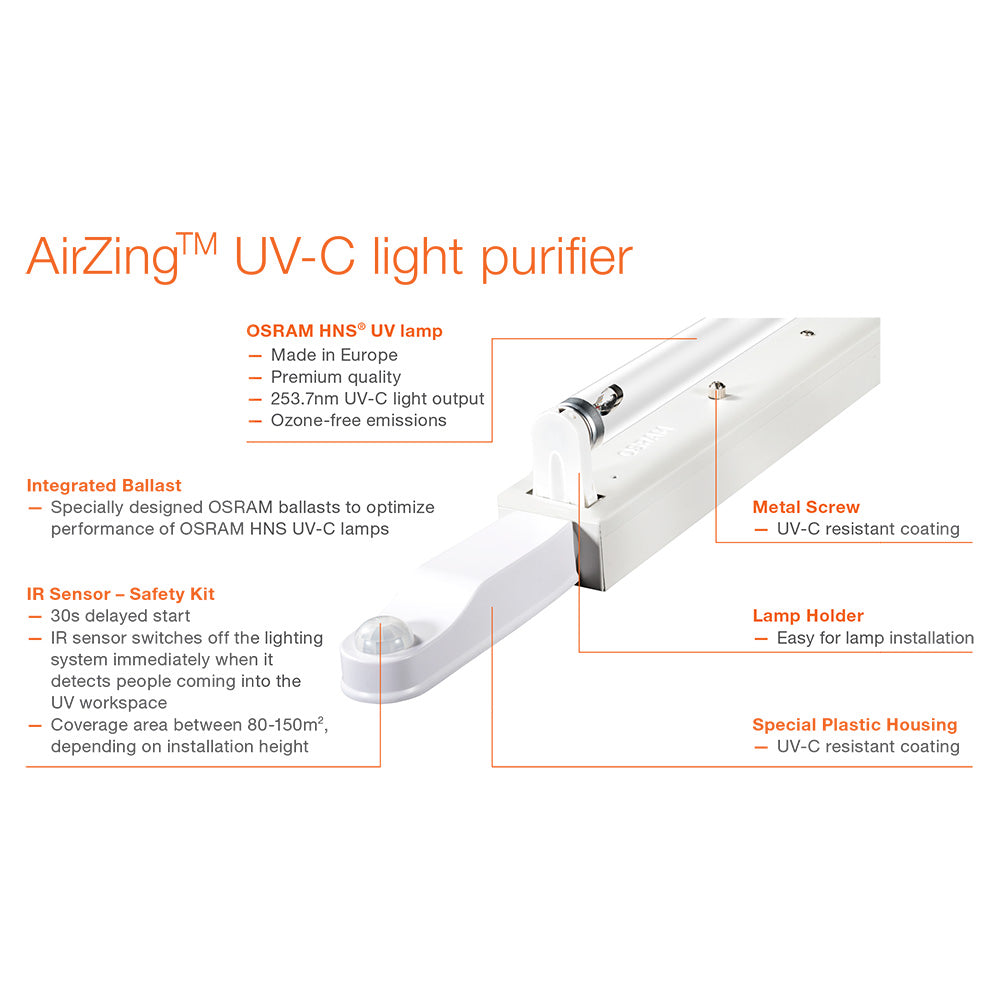

Key Features and Benefits:

• Generates 253.7nm UV light, which is ideal for highly effective sterilization and purification
• Proven technology destroying up to 99.9% of the microorganisms
• Specially designed OSRAM ballasts to optimize performance of OSRAM HNS 30W UV-C lamps
• Equipped with IR sensor to shut system down when people are detected entering the UV workspace
• 30-second-delayed start to enhance operational safety
• Ozone-free emissions
• 360 degrees coverage area

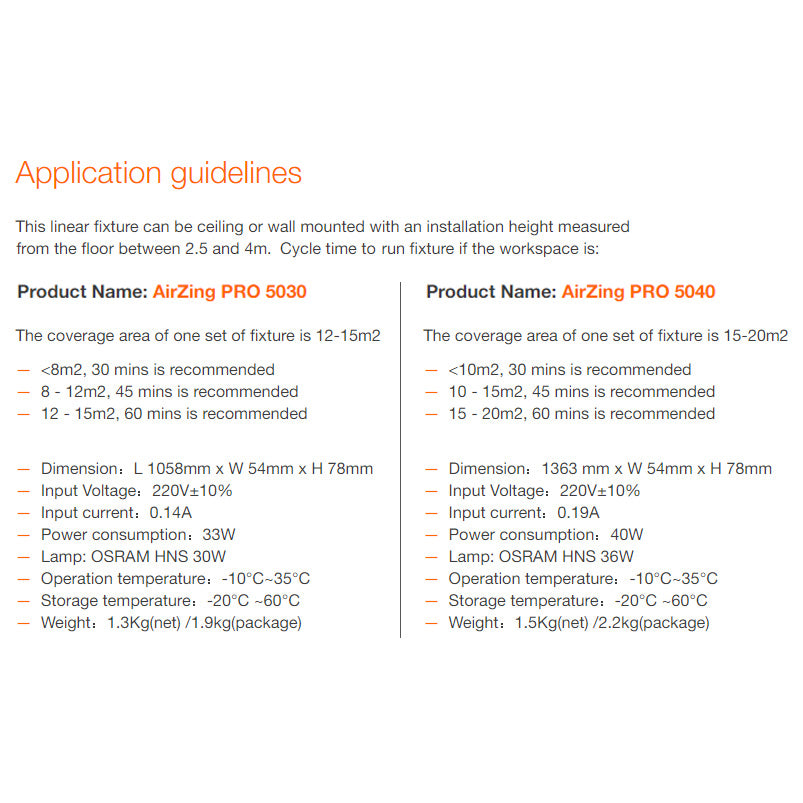

Application Guidelines:

• This linear fixture can be ceiling or wall mounted with an installation height measured from the floor between 8 to 13 ft (2.5 and 4m)
• The coverage area of one fixture is 129-161 ft2 (12-15m2)

The recommended cycle time to run one fixture based on the workspace area is:

• <86 square feet (<8m2), 30 minutes is recommended
• 86-129 square feet (8-12m2), 45 minutes is recommended
• 129-161 square feet (12-15m2), 60 minutes is recommended

To reduce exposure times or treat larger spaces, additional fixtures may be used. The layout can be adjusted according to interior design. This product is most effective on surfaces directly exposed to the light; soiled surfaces, porous materials or recessed areas may not be disinfected.

Areas of application:

• Hospitality/Long-term Care and other aseptic zones
• Health care
• Food and pharmaceutical industry
• Gym/Fitness Center
• Factory/Plant
• Office/School
• Mall/Restaurant
• Bus/Train Station
• Medical/Dental
• Cinema
• Entertainment

Safety Warning

- This product emits UV-C light during operation. Always avoid direct or reflected UV-C light exposure to eyes or skins of humans and animals.

- Keep humans and animals out of the operation space when this product is in service.
- This product is intended for indoor air purification purposes only and may not be used for any general lighting application.
- The product is not suitable for cleaning, disinfection or sterilization of medical devices.
- This product may degrade certain materials and paint, and can damage plants.

Product Name	AirZingTM PRO 5030
Input Voltage	220 V~240 V, 50/60 Hz
Input Current	0.16 A
Output Current	360 mA
Power Consumption	34 W
Lamp Wattage	30 W
Power Factor	>0.9
THD	< 20%
UV-C Output (253.7nm)	11-12 W
Initial UV-C Irradiance	>1.2 W/m @1m
UV-C Irradiance @ 9000 h	>0.96 W/m @1m
Lamp Lifetime	9,000 h
Relative Humidity	≤80%
Dimension	L 42in. x W 2.13in. x H 3.07in.
Weight	1.3 kg (net)
Operational Temperature	-10 °C ~ 40 °C
Storage Temperature	-20 °C ~ 60 °C
