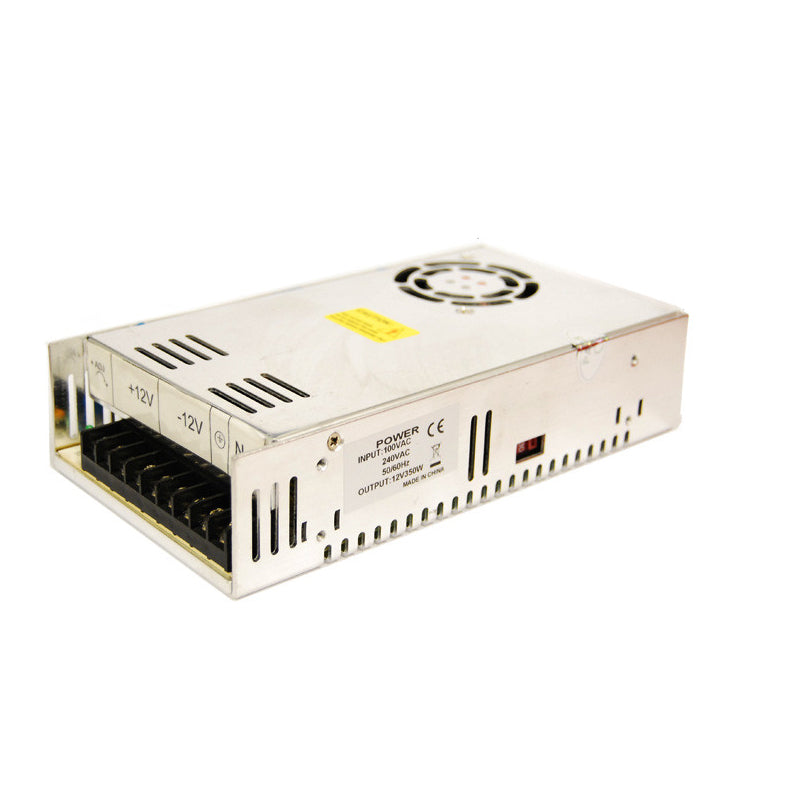

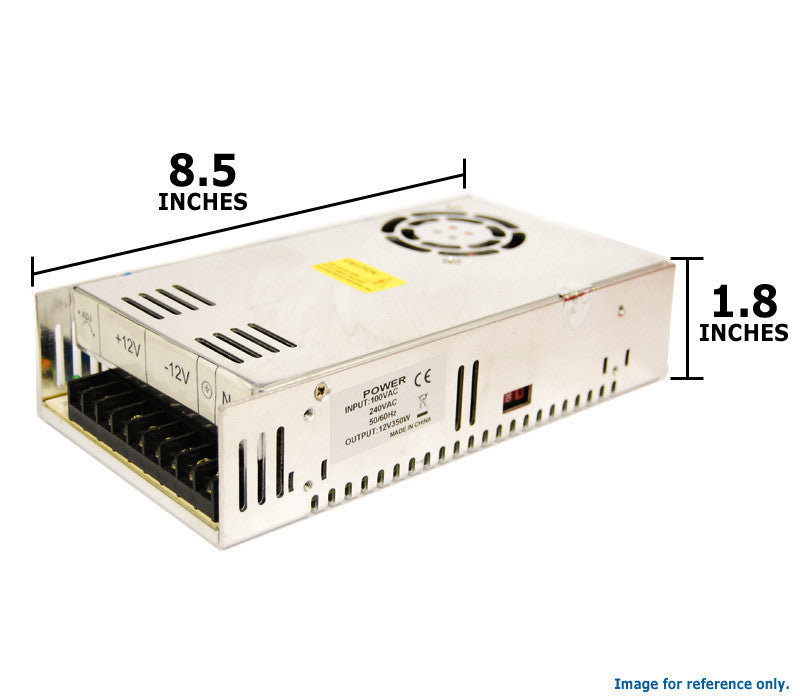

OPTIMA 350W Single Output LED Strip Power Supply LED-HF350-12
SKU: LED-HF350-12Description
Features:
- AC input voltage range:90-250V AC
- Input frequency:47-63Hz
- Out put : DC12V 29.2A 350W
- Output adjustment range:V1:10%
- Output over load protection:110-150%
- Output over voltage protection:115-150%
- Withstand voltage:I/P-O/P:1.5KV AC/1min
- I/P-F/G:1.5KV AC/1min
- Rise time:50ms
- Hold up time:20ms
- Working temerature:-10~+50
- Storage temperature: -20~+85
- Safety standards:design fefer to GB4943.UL60950.EN60950
- EMC standards:design refer to GB9254.EN55022 class A
- MTBF:>50,000hours
- Cooling method:convection
Please note: This power supplies fan will turn on ONLYafter the internal temperature will reach 120 F
Specs
Power Supply | |
12V | |
9.5 | |
1.875 | |
8.5 |
