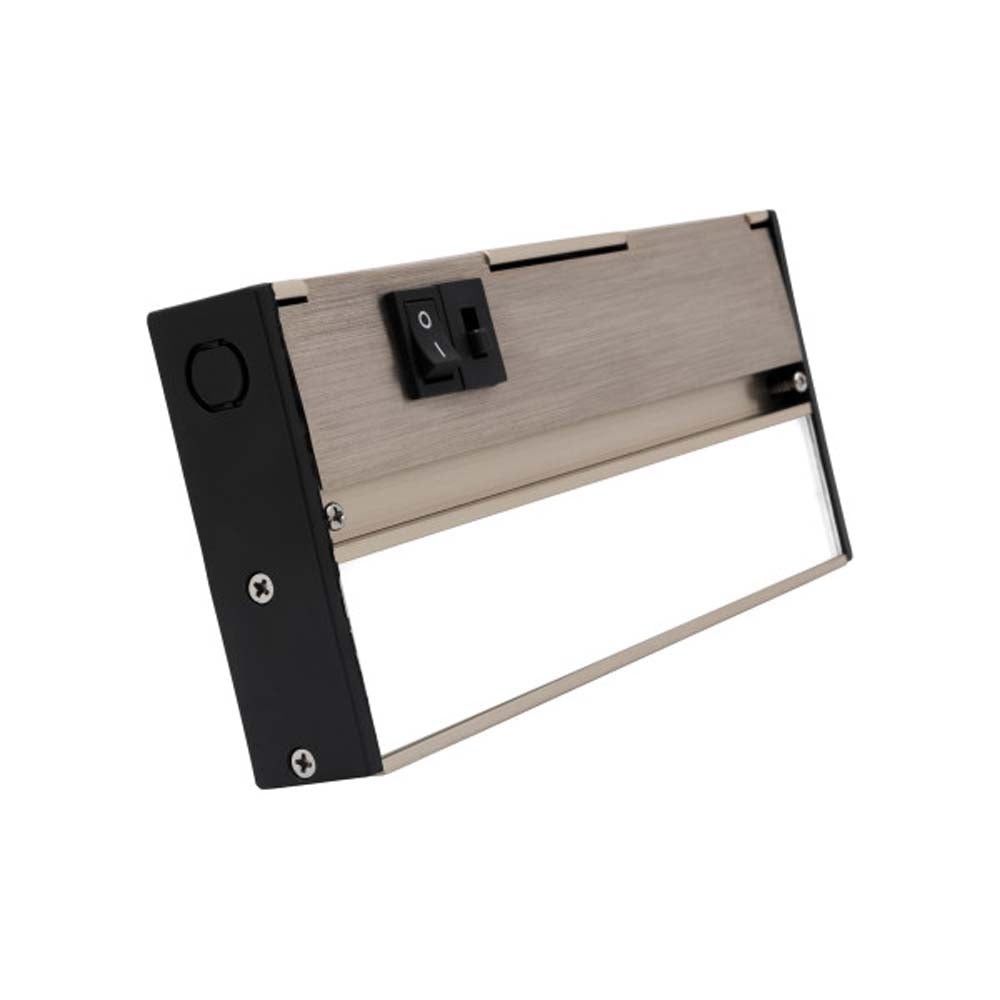

NUC-5 Series 8-inch Nickel Selectable LED Under Cabinet Light

NICORs fifth generation LED Undercabinet light features the latest in LED technology. The NUC Series Selectable LED Undercabinet allows you to change the color temperature of the light to 2700K, 3000K, and 4000K. The selectable color temperature switch is located next to the on/off rocker switch for easy access. This fixture is designed for easy hardwire installation that can be done through various knockout ports. This allows you to control the undercabinet lights from a wall switch or dimmer for full range dimming. The 1-inch low profile design keeps the fixture out of sight to provide pure ambient light without heat or harmful UV light. This Selectable LED Undercabinet is available in Black, Nickel, Oil-Rubbed Bronze, and White in sizes ranging from 8-inches to 40-inches. It features a projected lifespan of over 100,000 hours and is protected by NICORs 5-year limited warranty.

Features:
- Selectable color temperature (2700K, 3000K, 4000K)
- Full range dimming using standard LED dimmers
- Ready to install directly out of the box. No other parts required
- Requires hardwire installation with standard residential voltage (120V)
- Easy access to wiring for linking fixtures together end-to-end

Size (in.)	8
Product Color	Nickel
Finish	Powder Coat
Light Source	LED
Wattage	3.36w
Wattage Equivalent	25w
Voltage	120VAC
Lumen Output	247 (2700K), 276 (3000K), 289 (4000K)
Lumens Per Watt	68.1 (2700K), 76.2 (3000K), 79.7 (4000K)
Color Temperature (CCT)	2700K, 3000K, 4000K
CRI	93
R9 Value	>50
Dimmable	Yes
Dimming Type	TRIAC
Operating Temperature	0F to 120F (-18C 49C)
Listings/Certifications	UL Listed, CUL Listed, Energy Star, Title 24, FCC Class B, Damp-Location
Other Certifications	Testing performed in accordance with IESNA standards
Warranty	5 Year Limited

Manual:

LED Under Cabinet Installation Instructions
Nicor_NUC5 Catalog
