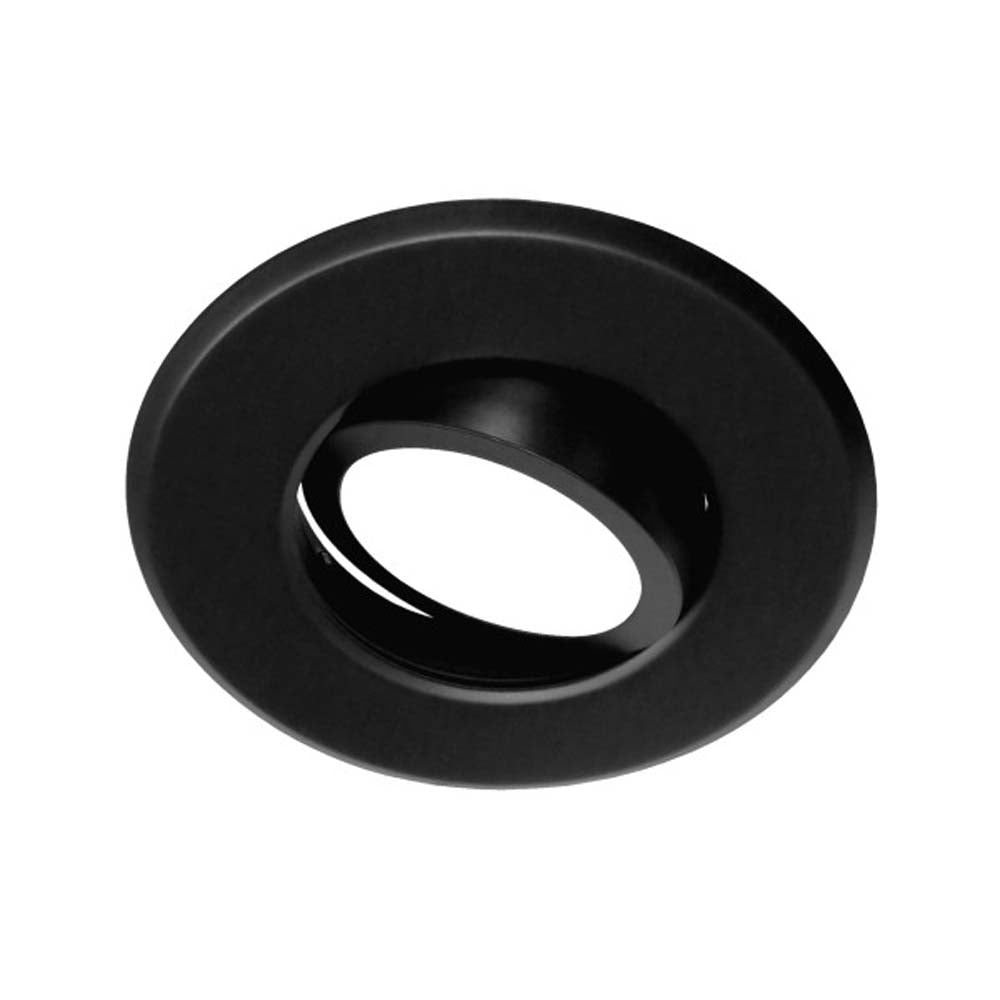

NICOR DLG56 Series 5/6 in. LED Gimbal Downlight Retrofit Kit, Black 3000K
SKU: DLG56-10-120-3K-BKDescription
The NICOR DLG56 is the perfect LED Downlight solution for directional accent lighting. This 5-inch/6-inch Recessed LED Downlight is designed to fit both 5-inch and 6-inch recessed housings. The DLG56 features Integrated LED's and offers an aesthetic appeal for both wall lighting and sloped ceilings. With a 360� rotation and 35� tilt range of motion, the twist-and-turn design allows for fine adjustment of the gimbal position. The DLG56 allows you to light up areas where a standard recessed downlight simply cannot. The durable steel constructed DLG56 features an aluminum heatsink to keep the downlight running cool. The DLG56 is dimmable (down to 10%) with standard LED dimmers and features high performance LED's to produce a Color Rendering Index (CRI) rating of 94 with an astonishing R9 value of over 50! This means that under this light, your reds will be �redder� and your blues will be �bluer� no matter which color temperature you choose (2700K, 3000K, or 4000K). The DLG56 includes a Medium (Edison) base and Quick-Connect adapters to make installation a breeze. On top of everything, the DLG56 is compatible with Sloped Housings, Energy Star rated, Title 24 compliant, Damp-Location rated, CEC compliant, UL Classified, and protected by and industry best 5-Year Limited Warranty.
Features- Utilizes high performing LEDs with greater than 90 CRI and an R9 greater than 50
- Polycarbonate diffuser and reflector cone create a uniform light distribution that reduces glare
- Durable stamped steel construction with die cast aluminum heat sink routes heat away from electrical components
- Thermally protected, high efficiency driver standard
- Operating temperature rating of 0F to 120F (-18C � 49C)
Specs
Model Number | DLG56-10-120-3K-BK |
Size (in.) | 5/6 |
Product Color | Black |
Finish | Powder Coat |
Light Source | LED |
Wattage | 12.5 |
Wattage Equivalent | 65 |
Voltage | 120V |
Lumen Output | 1034 |
Lumens Per Watt | 82.5 |
Color Temperature (CCT) | 3000K |
CRI | 94 |
R9 Value | >50 |
Dimmable | Yes |
Dimming Type | TRIAC |
Operating Temperature | 0� to 120�F (-18�C to 49�C) |
Listings/Certifications | ETL Intertek Listed Title 24 Energy Star IC-Rated Wet-Location |
Other Certifications | Testing performed in accordance with IESNA standards |
Warranty (Years) | 5 |
