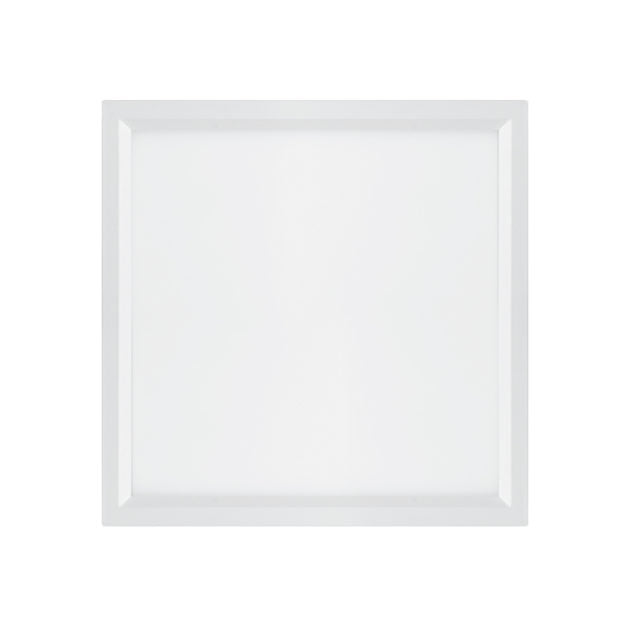

Nicor 4in 5000K Square Edge Lit Recessed LED Downlight

Nicor 4in 5000K Square Edge Lit Recessed LED Downlight

The DSE4 Square LED Surface Mount Downlight features the latest in LED technology to make installation as easy as possible.
The slim profile downlight utilizes edge-lit technology with a reflective guide panel to disperse light evenly across the face of the diffuser, making this an efficient fixture with high performance output. The driverless technology allows the DSE4 to be installed in a 4-inch junction box and snapped into place with the integrated snap tabs on the back of the fixture. The DSE4 produces incredible color accuracy (at 92 CRI) and flexible dimming, compatible with standard LED dimmers. The narrow injection molded polymer housing with matte white finish creates the perfect design aesthetic for a modern look.
With a calculated lifespan of over 54,000 hours, accompanied by an industry best 5-year limited warranty, the DSE4 delivers quality and durability for years to come.

Features:
- Shape: 4 inch Square
- Wattage: 10W
- Light Output: 661 Lumens
- Color Temperature: 5000K Cool
- precision engineered optical stack creates uniform light distribution that maximizes lumen output
- Utilizes high performing LEDs with a greater than 90CRI and R9 greater than 50

Specifications
- Aluminium Backplate with integral snap tabs
- injection molded polymer trim
- Driverless design minimizes installation height
- Input voltage of 120VAC, 50/60Hz
- Dimmable to less than 5% with compatible TRIAC dimmers
- Operating temperature of 0° to 120°F (-18°C to 49°C)
- TM-21 Reported L70(9K) hours >54,000

SPECIFICATIONS
Voltage	120
Wattage	10
Lumens	661
Wattage Equivalent	60
Color Temperature	5000
CRI	92
Dimmable	Yes
Dimming Type	TRIAC
Rec. Dimmers	Lutron DIVA DVELV-303P, Lutron Skylar SELV-300P, Leviton C22-06672-1LW
Light Source	LED
Beam Angle	114°
Reported Lifespan	>54,000

Manual:

DSE Specs
DSE Installation Instructions.pdf
