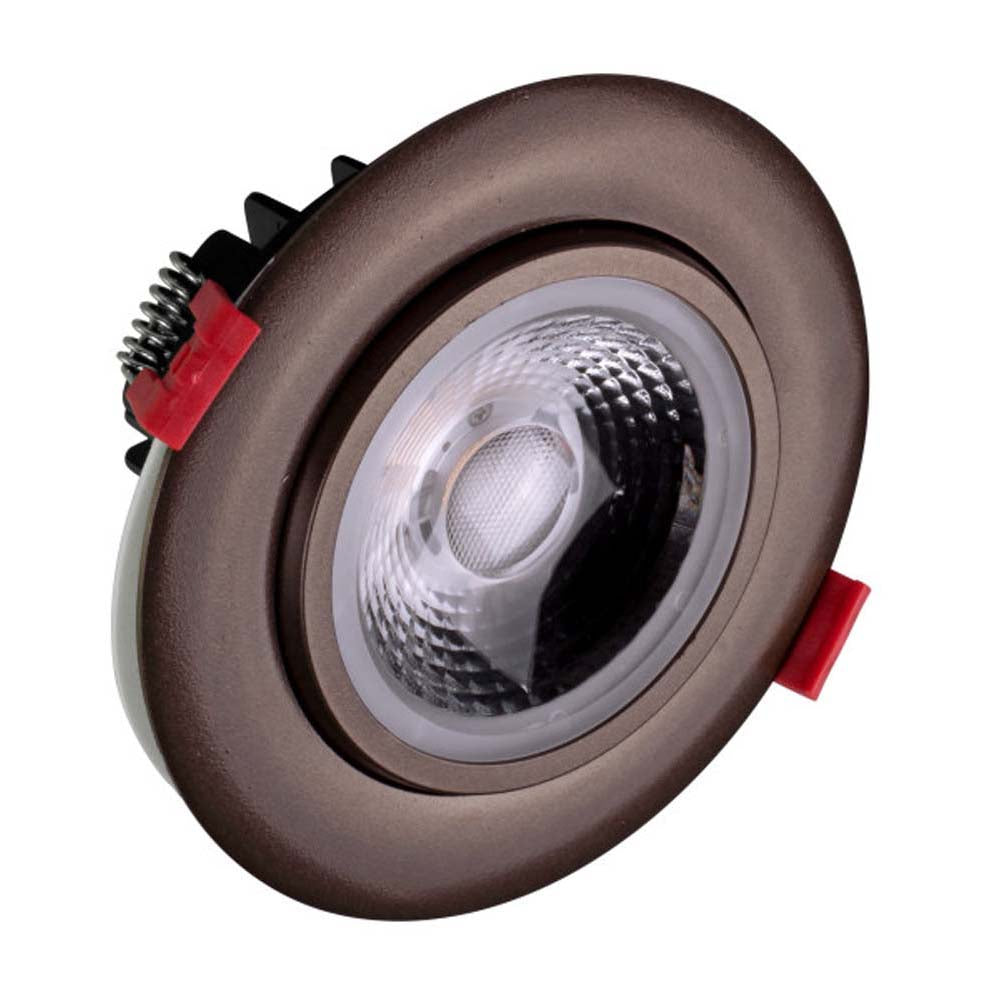

NICOR 4-inch LED Gimbal Recessed Downlight in Oil-Rubbed Bronze, 3000K

The DGD4 LED Downlight Gimbal features the latest in performance LED Downlight technology, designed to create an attractive visual aesthetic that's incredibly easy to install. The high-performance DGD4 is Dimmable and features a 92 CRI rating, with an R9 value exceeding 50, making it one of the highest quality light fixtures on the market. Installation does NOT require a recessed housing or junction box, only a simple 4.125-inch diameter cut-out in the ceiling using the provided template. The elegantly designed fixture and off-board driver (included) allows for a more flexible installation and an increased lifespan thanks to the superior heat management system separated from the LED module itself. The DGD4 features adjustable spring-loaded retention tabs for a secure fit, eliminating the need for a recessed housing or junction box. Adding an adjustable, multi-directional light system to highlight artwork or architectural design features in your home just got easier. Freedom from having to use a housing or junction box allows this light to be installed in places others simply cannot. Available in Black, Nickel, Oil-Rubbed Bronze, and White. Choose from 2700K, 3000K, 4000K, or 5000K Color Temperatures. The DGD4 is Energy Star rated, Insulation Contact rated (IC-rated), Title 24 Compliant, Wet-Location rated, and is protected by NICORs 5-Year Limited Warranty.

Features
- 3000K Color Temperature
- 1,006 Lumens
- 11.6-Watts
- Includes LED downlight module, plenum-rated cable, and off-board LED driver
- Includes 4.125-inch cut-out template

Model Number	DGD411203KRDOB
Size (in.)	4
Product Color	Oil-Rubbed Bronze
Finish	Powder Coat
Light Source	LED
Wattage	11.6
Wattage Equivalent	75
Voltage	120V
Lumen Output	1006
Lumens Per Watt	86.7
Color Temperature (CCT)	3000K
CRI	92
R9 Value	>50
Dimmable	Yes
Dimming Type	TRIAC
Operating Temperature	0 to 120F (-18C to 49C)
Listings/Certifications	ETL Intertek Listed Title 24 Energy Star IC-Rated Wet-Location
Other Certifications	Testing performed in accordance with IESNA standards
Warranty (Years)	5

Manual:

DGD411203KRDOB Data Sheet

Installation Guide:

Installation Manual - 1
Installation Manual - 2
