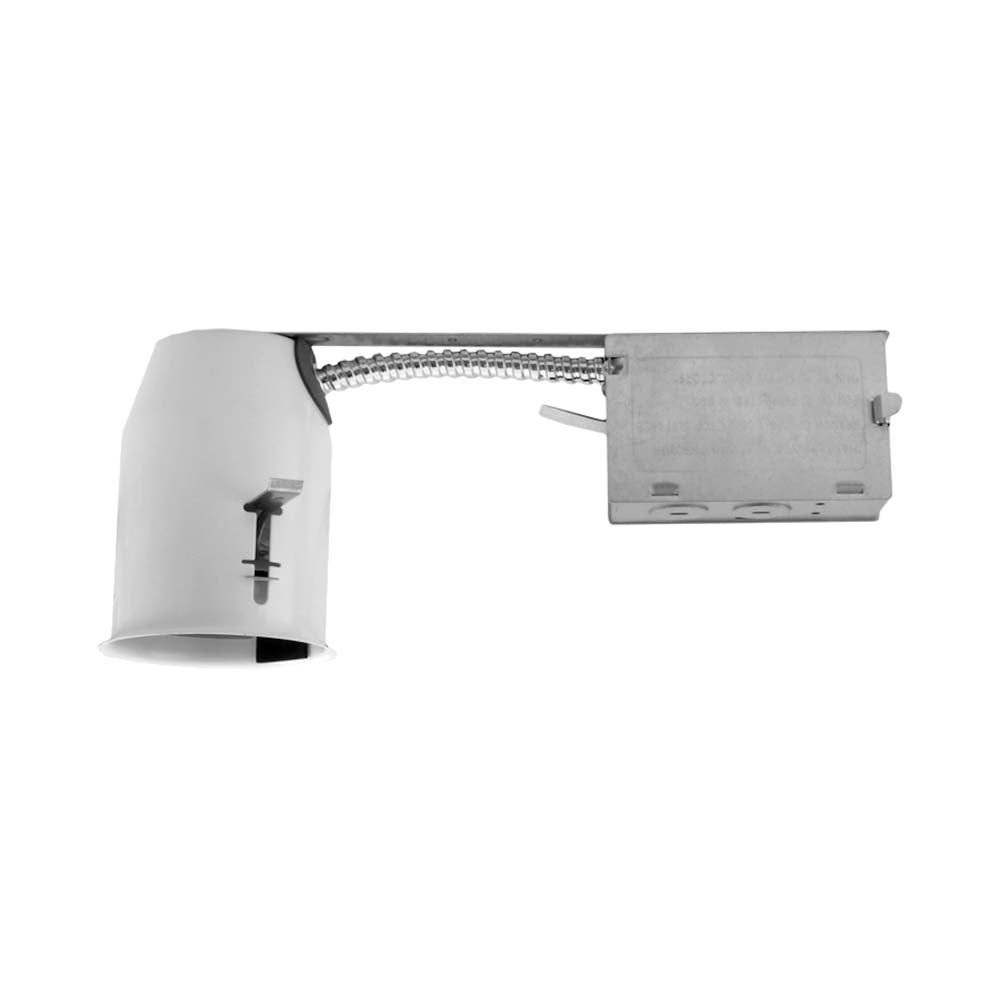

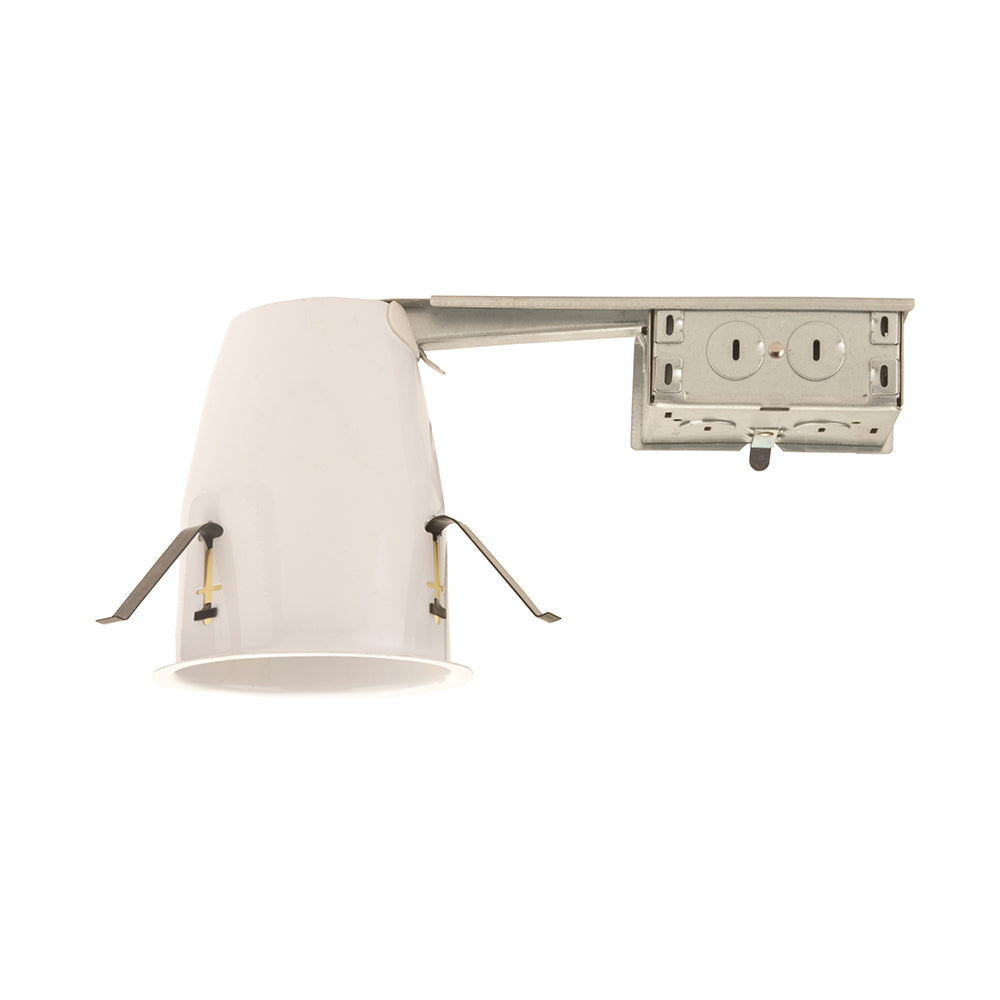

NICOR 3 in. LED Housing for Remodel Applications

The 13201AR-LED features IDEAL connections that allows for quick, snap-in connection of NICOR D-series LED downlights. Suitable for residential and commercial applications. Suitable for direct contact with insulation. IC rated and airtight.

Features:
- Suitable for existing construction and remodel applications
- IC rated. Suitable for direct contact with insulation
- Removed socket bracket allows for easy installation of LED downlights

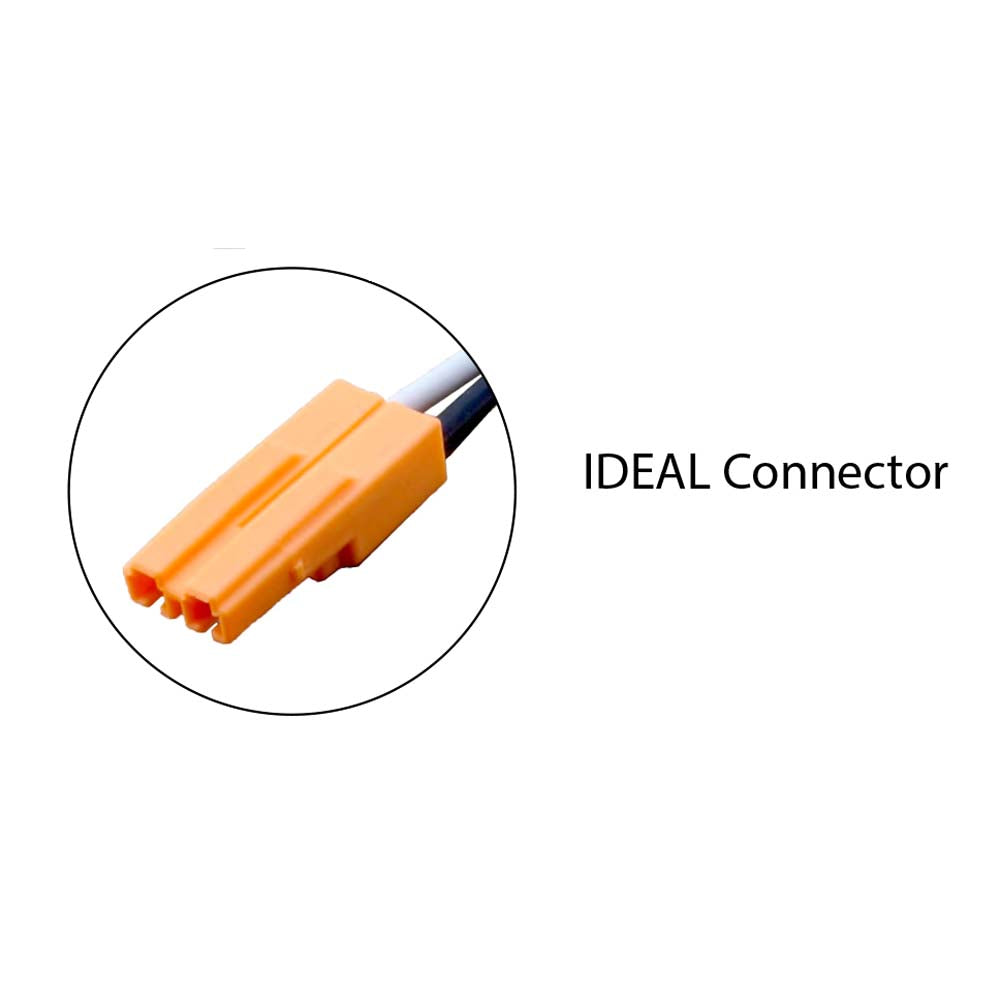

- Features an IDEAL connection for simple LED downlight installation
- Supplied with 3 IDEAL push-in wire connectors
- Airtight rating provides for additional insulation and energy efficiency
- Listed for through branch circuit wiring and includes several 3/4" knockouts
- Airtight housing limits the exchange of air between ceiling plenum and heated/cooled area
- Perfect for NICOR 3 inch LED downlights
- Protected by NICOR's 1 year limited warranty

Finish	Neutral White
Product Type	Remodel Housing
Size	3"
Application	Residential or Commercial
Watts	150W Max
Volt	120V
Bulbtype	LED
Bulbs Included	No
Recommended Bulb Type	LED
Adapter/Bulb Base	IDEAL
Hardwire/Plug/Socket	Hardwire

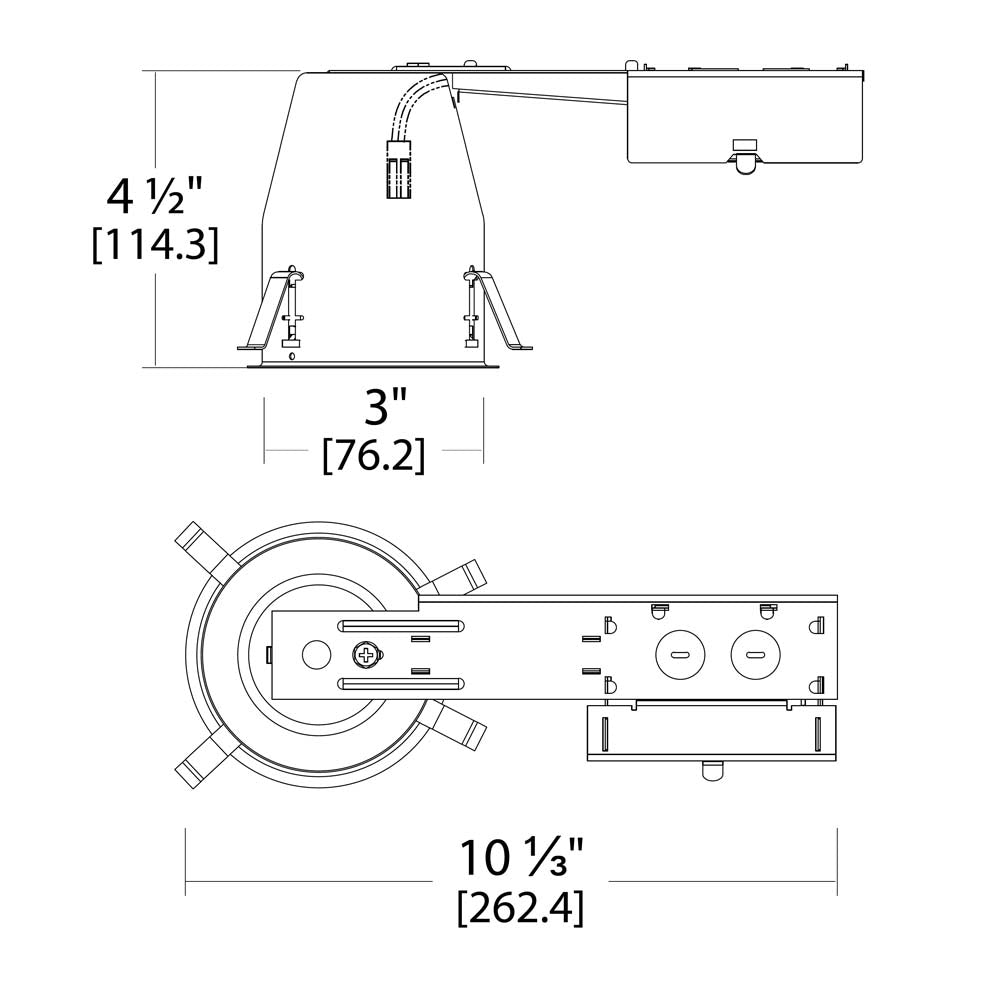

Product Length	10.33
Product Width	4.5
Product Depth	3
Product Weight	3.5
Certification	UL Listed, cUL Listed, IC-Rated, Airtight, UL Feed-Through, Damp-Location
Warranty (Year)	1 Year Limited

Manual:

Nicor 13201AR-LED Data Sheet
Nicor 13201AR-LED Installation Manual
