NARVA Air-H 6146 - 45w 6.6A MR16 Female Round Connector Airfield Bulb

NARVA Air-H 6146 - 45w 6.6A MR16 Female Round Connector Airfield Bulb (OSRAM 64337B J1/85B8)

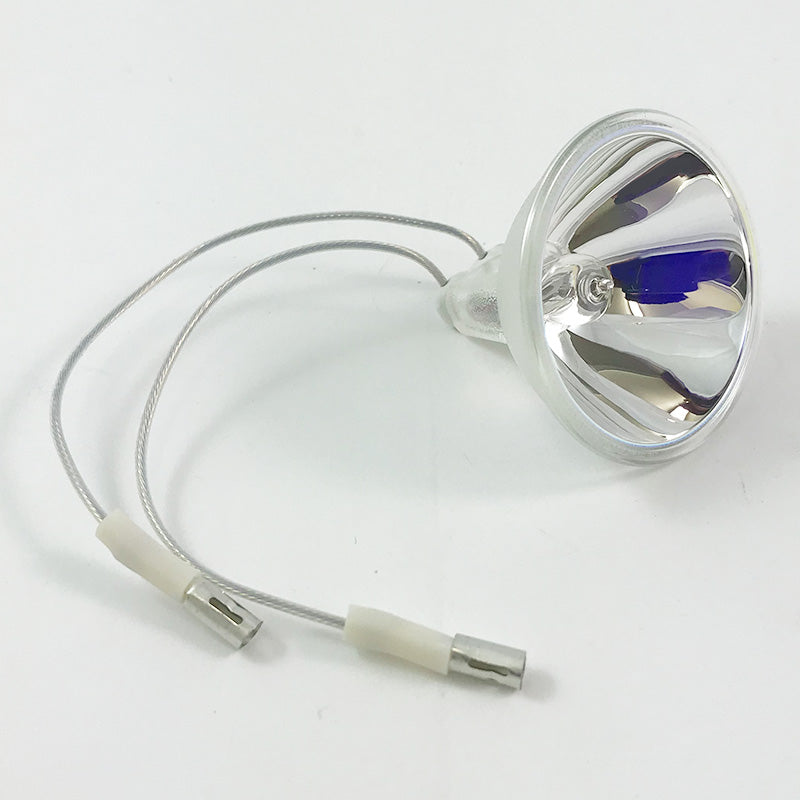

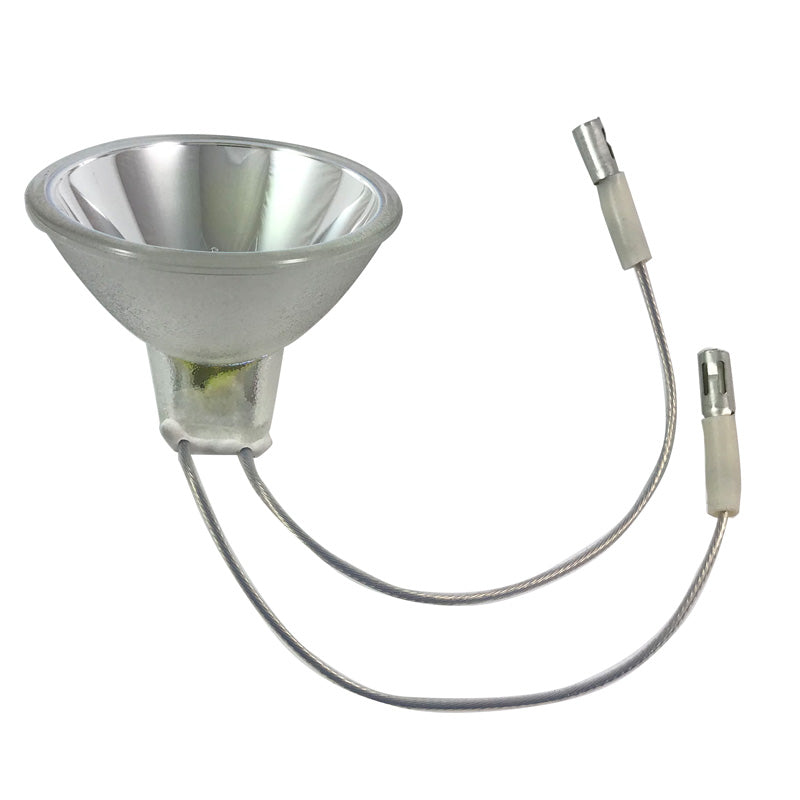

This Narva Aircraft/Airfield Light Bulb SKU 58382 is a tungsten halogen bulb that has 45-watt (6.6A) and Leads w/Female Round Connectors.

FEATURES:
- High and constant lumen output, long lifetime, excellent optical adjustment, strong focus light
- Current controlled
- Leads w/Female Round Connectors
- 45 watts and 6.6 Amps
- Airfield/Aircraft applications - Approach and threshold lights, Runway and taxiway lights, Airport Signs, Stop bar and touchdown zone lights
- Rated life: 1500hr

CROSS REFERENCE:
- NARVA 58306, 58382, 58304
- AFL # J1/85B8 LAMP 45W / 6.6A / Reflector with Female Round Leads
- OSRAM 64337B SKU 58908
- Philips 6107, 6146

Please see below all the available options for 64337 airfield bulb:
- Famele Flat Connector 64337A
59070 64337A IRC 48w 3000hr
58905 64337A IRC 48w 3000hr
58891 64337A 48w 1500hr
58907 64337A 45w 1500hr
- Female Round Connector 64337B
58906 64337B IRC 48w 3000hr
58908 64337B 45w 1500hr
- Male flat connector: 64337C
58952 64337C IRC 48w 3000hr
59071 64337C IRC 48w 3000hr

Brand	NARVA
Bulb Type	Halogen Bulbs
Shape	MR16
Lamp Finish	Reflector
Wattage	45W
Base	Leads w/Female Round Connectors
Color Rendering Index (CRI)	100
Rated Life	3,000 hrs
Filament Type	C-8
Burning Position	S90
Cable connector	round female 4 mm diameter
Maximum allowed cable temperature	250
Maximum allowed pinch temperature	350

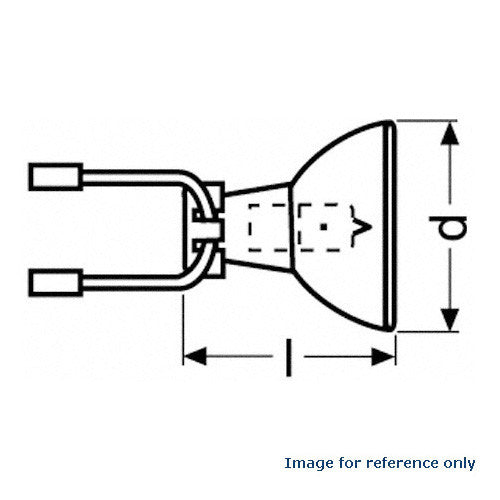

Diameter (in)	1.98
Maximum Overall Length (in)	1.77
Cable Lenght (in)	4.9
Front Glass	No Front Glass

Manual:

58382-NARVA Data Sheet
