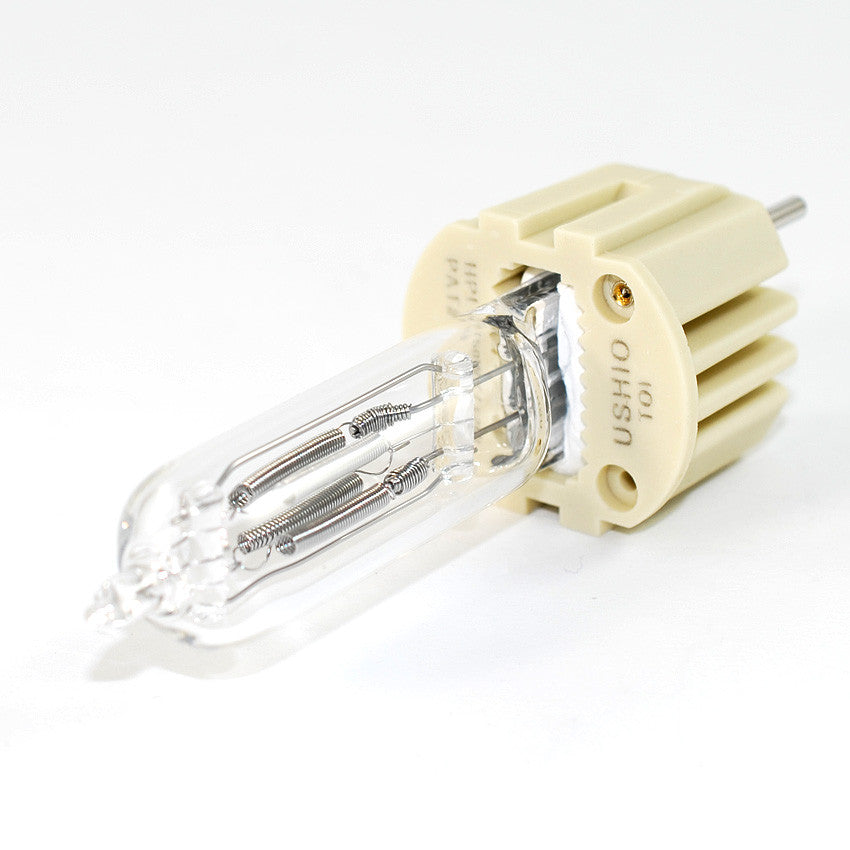

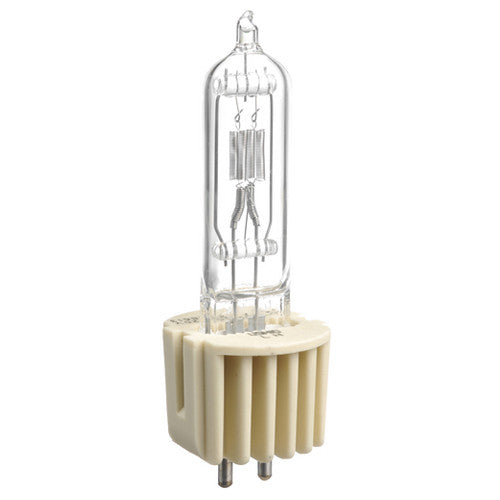

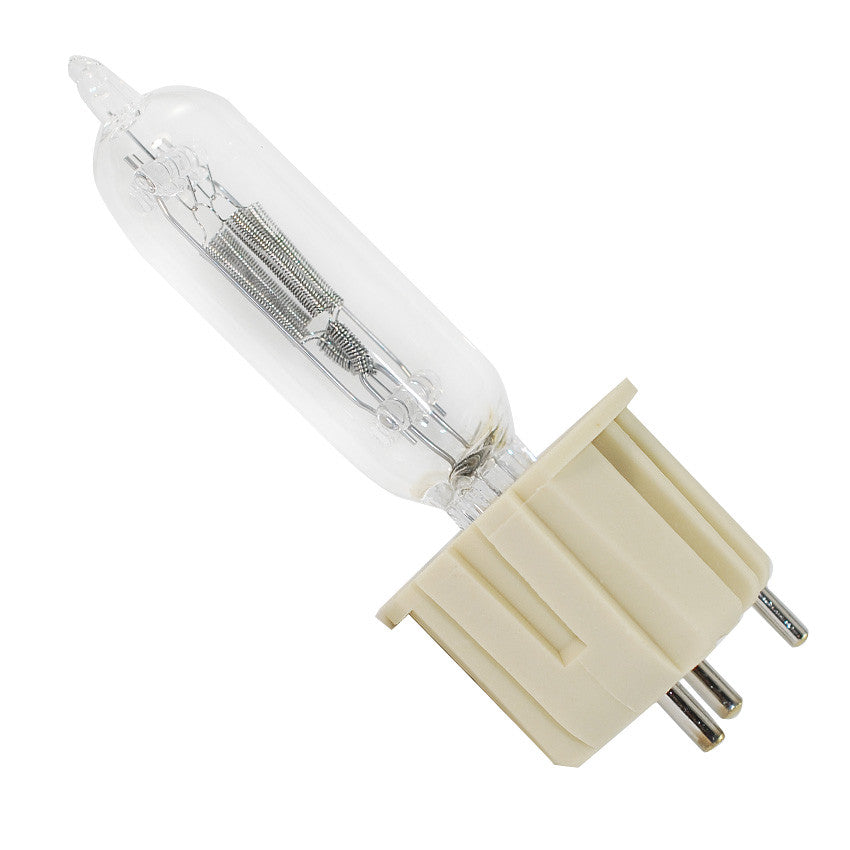

HPL 750w lamp 77v USHIO HPL-750/77V 750 watt halogen bulb

Ushio HPL-750/77V, JS77V-750WC 750 Watt 77 Volt tungsten halogen, HPL Lamp

The High performance Ushio 1000676 HPL-750/77V, JS77V-750WC, 300 Hours lamp has been redesigned to be the most powerful HPL ever. It's ultra-compact filament geometry now improves the optional efficiency of your ETC Source Four fixtures to produce up to 20% more fixture lumens. That's up to 20% more light from the same fixture as compared to the old lamp design.

Features:
- Abbreviation Name: HPL-750/77V, JS77V-750WC, 300 Hours
- Description 2: 750W 77V

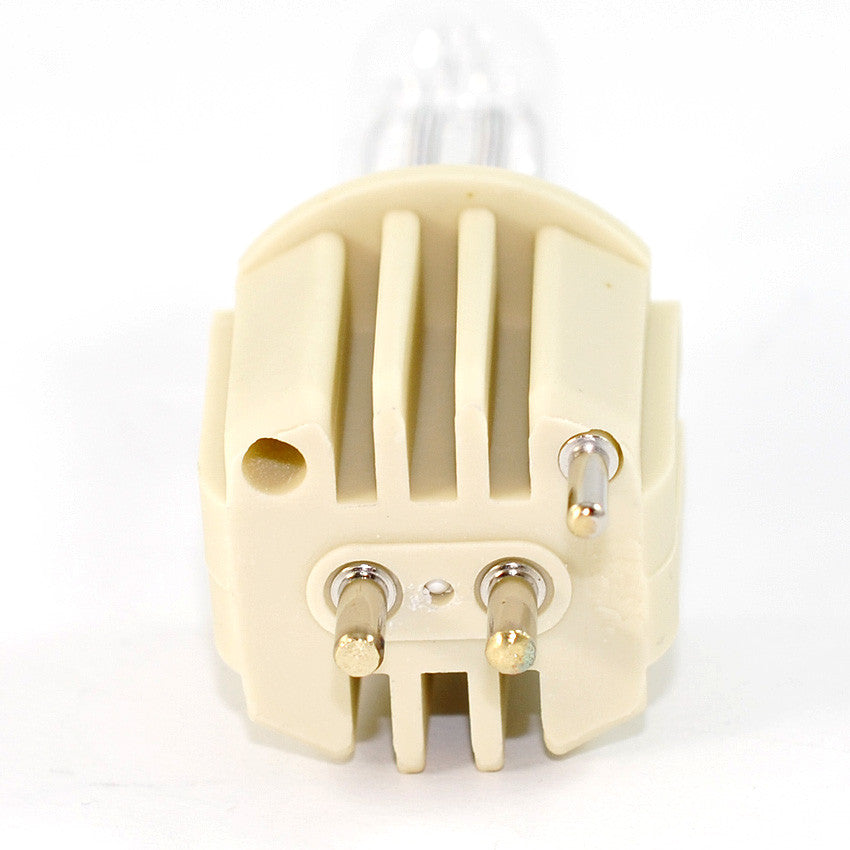

- Base: G9.5 2-Pin w/ Heat Sink
- Bulb Type: Halogen Bulbs
- Color Rendering Index (CRI): 100
- Color Temperature (K): 3250K

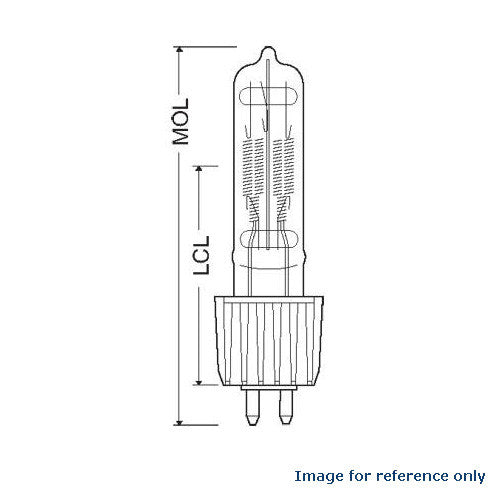

- MOL (in): 4.09
- Diameter (in): 0.72
- Light Center Length (in): 2.38
- Filament: 4-C8
- Lamp Finish: Clear
- Luminous Flux (LM): 22950
- Maximum Overall Length (in): 4.09
- Rated Life (Hours): 300
- Shape: T6
- Voltage: 77V
- Wattage: 750W

Abbreviation Name	HPL-750/77V, JS77V-750WC, 300 Hours
Description 2	750W 77V
Base	G9.5 2-Pin w/ Heat Sink
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3250K
MOL (in)	4.09
Diameter (in)	0.72
Light Center Length (in)	2.38
Filament	4-C8
Lamp Finish	Clear
Luminous Flux (LM)	22950
Maximum Overall Length (in)	4.09
Rated Life (Hours)	300
Shape	T6
Voltage	77V
Wattage	750W

Manual:

HPL Cross Reference
Ushio 1000676 HPL-750/77V
