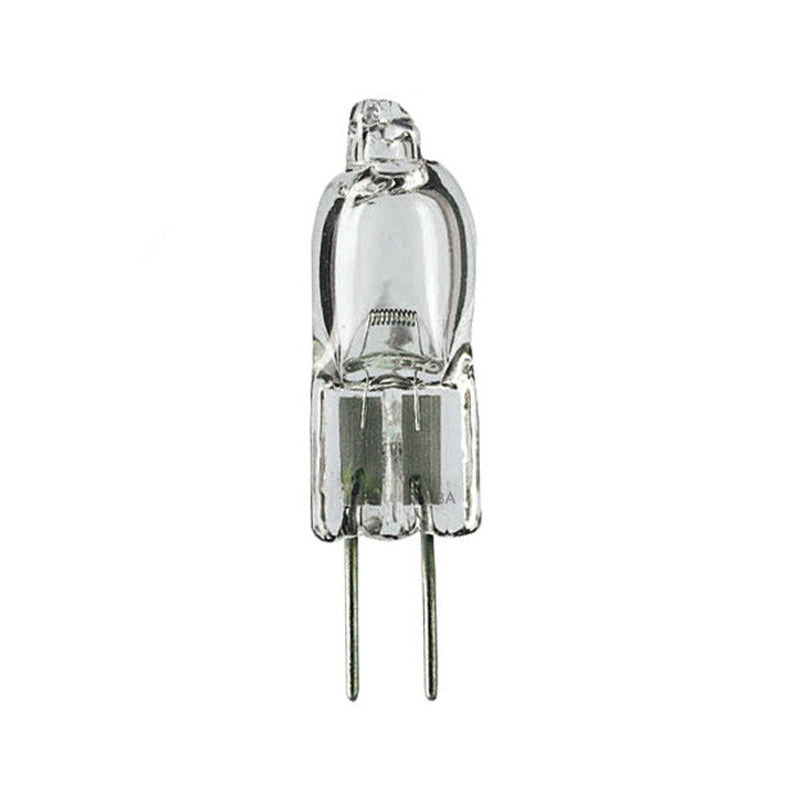

OSRAM FHE/ESB 64250 bulb HLX 20w 6v G4 Single Ended Halogen Light Bulb

This OSRAM ESB / FHE bulb is a 20 watt, 6 volt HLX lamp. It has a base of G4 2-Pin, a shape of T3.5 and a rated life of 100 hours. It has a maximum overall length of 1.209 inches, lumens of 480, and a clear lamp finish. This OSRAM ESB / FHE bulb has a diameter of 0.351 inches and a color rendering index of 100.

This bulb can be used for the following applications:
- Commercial Theaters
- Museums
- Landscape lighting
- Living rooms and more

Cross Reference:
- Philips: 409867, 7388, M/30, M30
- Philips: 256784, ESB
- Osram: 54261, ESB / FHE
- Ushio: 1000532, FHE/ESB, JC6V-20W

Cautions and warnings:
- 1. To avoid electric shock, turn off power (or unplug) before attempting lamp replacement.
- 2. Caution: This lamp emits UV.
- 3. This lamp operates at high internal pressure and a high surface temperature.
- 4. Caution: This bulb must be used in a fixture that has a suitable protective shield and /or screening technique to protect people and surroundings against the risk of personal injury and/or property from bulb shattering and UV exposure.
- 5. Caution: to avoid risk of serious eye injury from the intense light, do not stare at the operating bulb.

Abbreviation Name	ESB64250HLX
Base	G4 2-Pin
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100

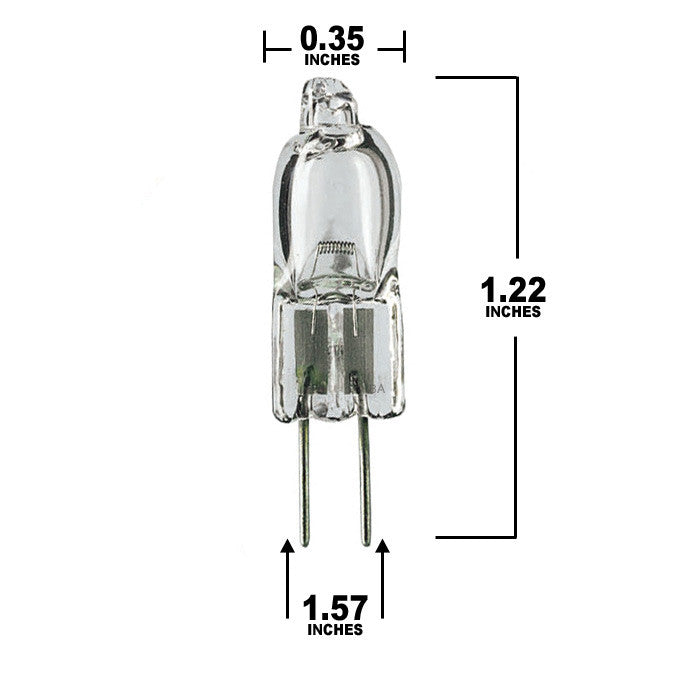

Diameter (in)	0.351
Lamp Finish	Clear
Luminous Flux (LM)	480
Maximum Overall Length (in)	1.209
Rated Life (Hours)	100
Shape	T3.5
Voltage (V)	6V
Wattage (W)	20W

Manual:

OSRAM 54261 ESB 64250 HLX
