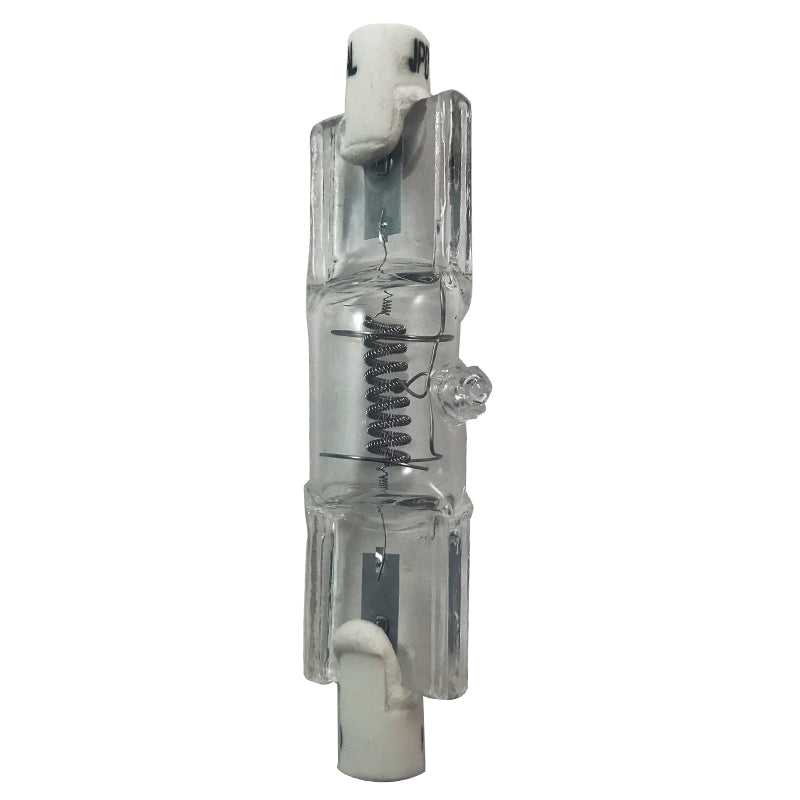

FAL bulb - Osram 420w 120v Frosted Double Ended Halogen Light Bulb

Osram 58860 FAL - 420w 120v Frosted Double Ended Halogen Light Bulb

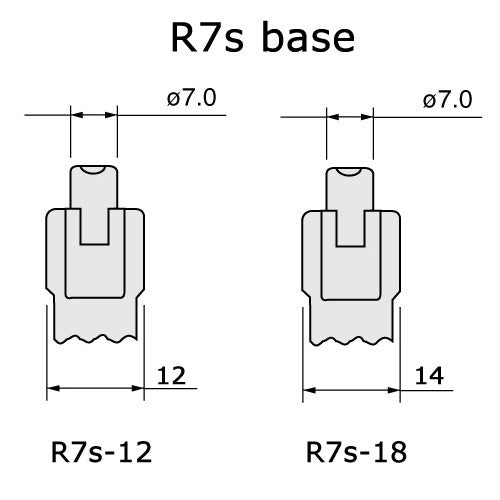

This OSRAM FAL halogen bulb has a R7s Recessed Single Contact base with a CC-8 filament.
The OSRAM FAL Double Ended halogen bulb has a rated life of 75 hours.

APPLICATIONS
- Color Printer
- Opaque/Transparency
- Overhead Projector
- Stage/Studio

CROSS REFERENCES
- Imported Lamp Code 605030
- 3M 78-8454-3461-8
- Atlas/Thorn A1/227
- Eiko 03020 FAL
- EYE JPD420WC FAL
- GE 29581 FAL
- Osram Sylvania 58860 FAL
- Philips 12216R
- Philips 23976-4 FAL
- Ushio 1000472 FAL, JPD120V-420WC

Note:

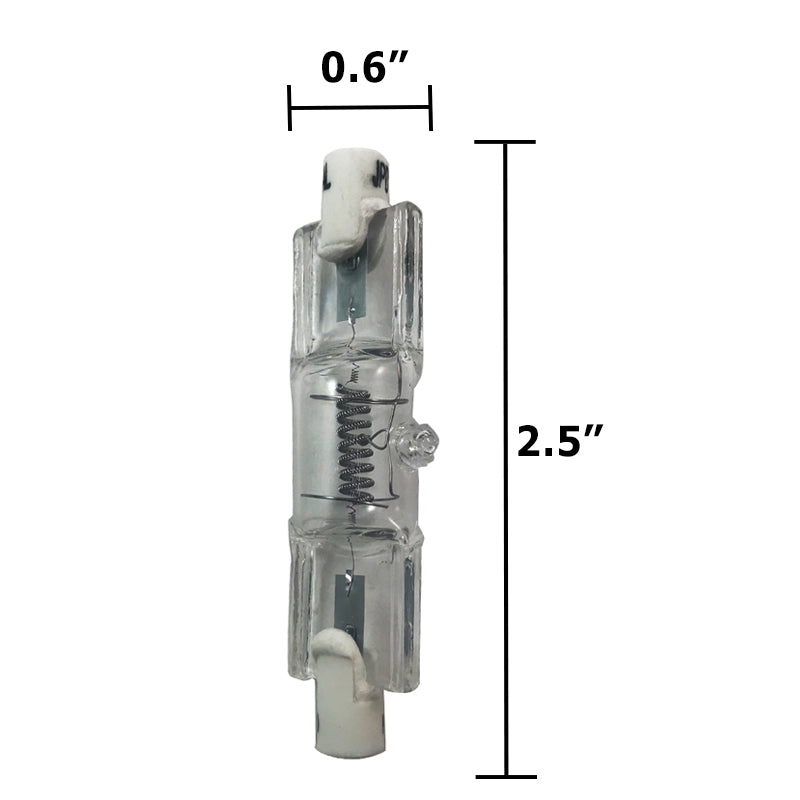

Maximum Overall Length:2.40 (in)

Base	R7s Recessed Single Contact
Bulb Type	Halogen Bulbs
Color Rendering Index (CRI)	100
Color Temperature (K)	3200K

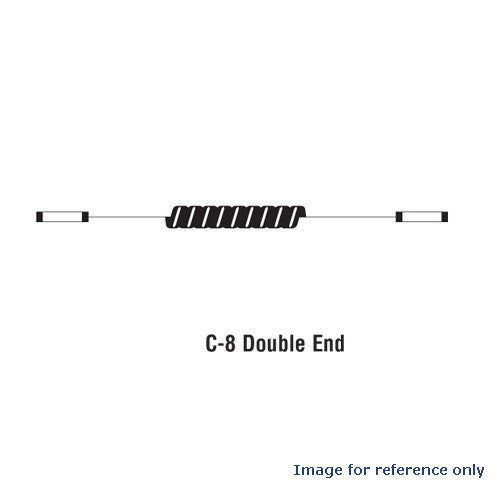

Filament	CC-8
Lamp Finish	Frosted
Luminous Flux (LM)	11000
Maximum Overall Length	2.40 (in)
Rated Life (Hours)	75
Shape	Double-Ended
Voltage (V)	120V
Wattage (W)	420W

Manual:

Osram 58860 FAL

EQUIPMENT:
- 3M Model 60
- 3M Model 66 (to 66AG1101E)
- American Optical Apollo 3640
- American Optical Apollo 3641
- American Optical Apollo 6 3650
- American Optical Apollo 6 3651
- American Optical Apollo 6 3653
- American Optical Apollo 6 3654
- American Optical Apollo 6 3669
- American Optical Apollo 6 3672
- Beseler Porta-Scribe 15700
- Beseler Porta-Scribe 15710
- Eastman Kodak 2600
- Eastman Kodak 5S3
- Eastman Kodak 5S5
- Eastman Kodak VCB Lamphouse
- Projection Optics Co. Travel-Graph 21000
- Victorlite Industries Visualcast 5000
