EML Series Low Profile Adjustable LED Emergency Light Fixture, Remote Capable

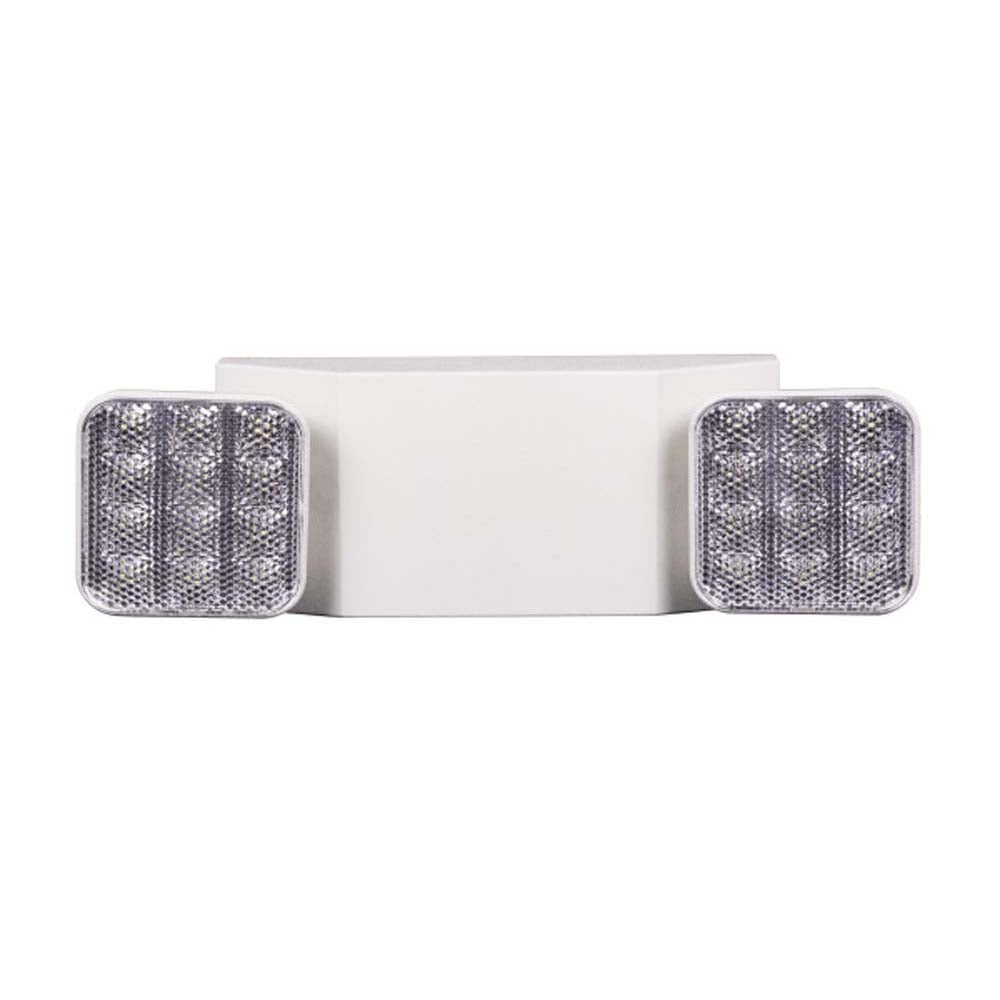

The NICOR EML3 Emergency Remote Capable LED Light features a low-profile design with two independent adjustable LED Heads. The Remote capability allows the EML3 to support up to four 3.6VDC remote lighting fixtures. Each head can rotate 330° and tilt to 90° making it easy to direct light to where it needs to be. The injection-molded thermoplastic is UL-94v-0 flame retardant and damp-location rated. The EML3 features 90 minute emergency backup lighting (also to remote lights) that kicks on if the power is cut. The EML3 uses only 2.1-Watts of energy to produce 203 lumens of light. It can be installed in both residential (120V) and commercial (277V) settings. It's designed to install easily into any junction box using a universal mounting plate with EZ quick connects for wiring. The EML3 is also available in a non-remote capable option (see EML310UNVWH). Includes a 2-Year Limited Warranty.

Manual:

DSE Specs

Brochure.pdf

Installation Instructions.pdf
