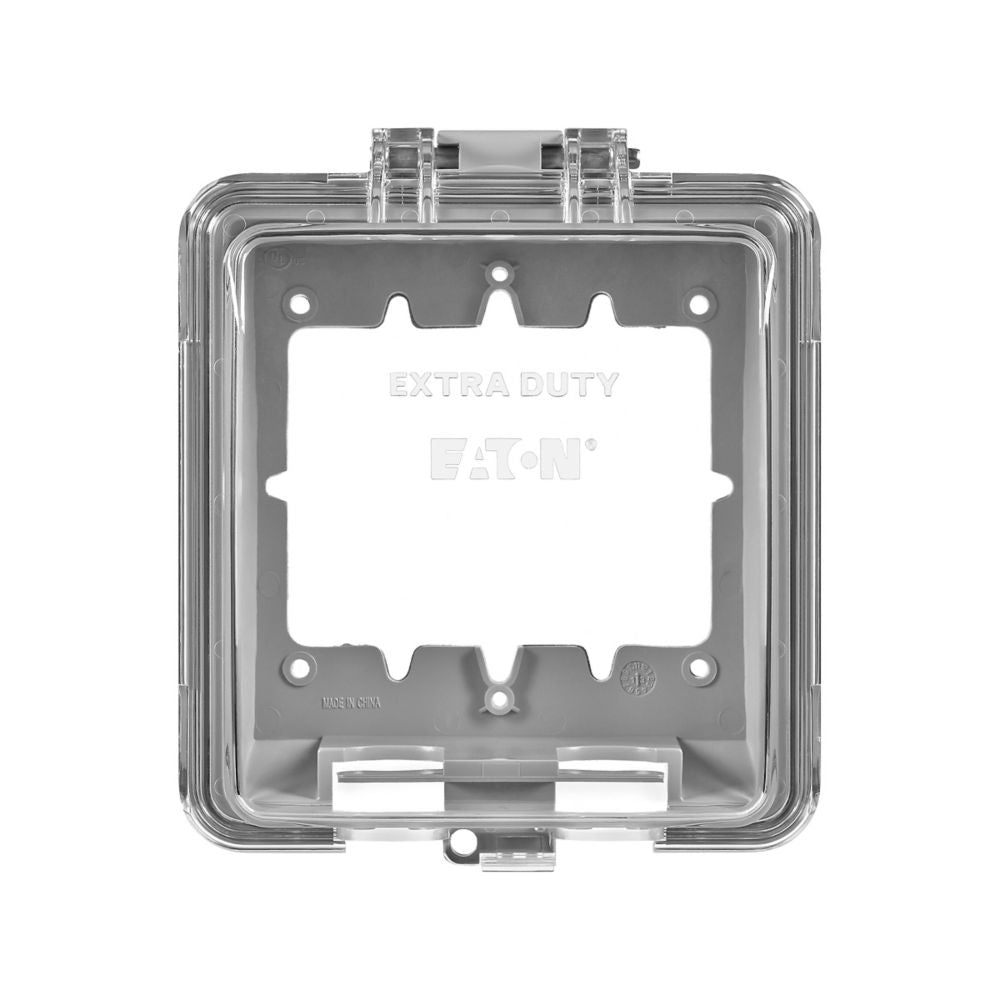

EATON 2-Gang Self-Closing Weatherproof Protective Clear Cover

Eaton non-metallic while-in-use weather protective cover, Selfclosing, 3.25 in depth, Extra duty, Surface mount, Gray, Multiple Configurations, Wet, Polycarbonate, Single-gang, Horizontal, vertical, Standard

Features:
- seals out moisture; sheds water, ice and snow
- Meets NEC 2017 406.9 Extra Duty requirements.
- Has a rugged UV-resistant polycarbonate cover & back protects devices without cracking or breaking & is non-corrosive.
- Has a self-closing cover.

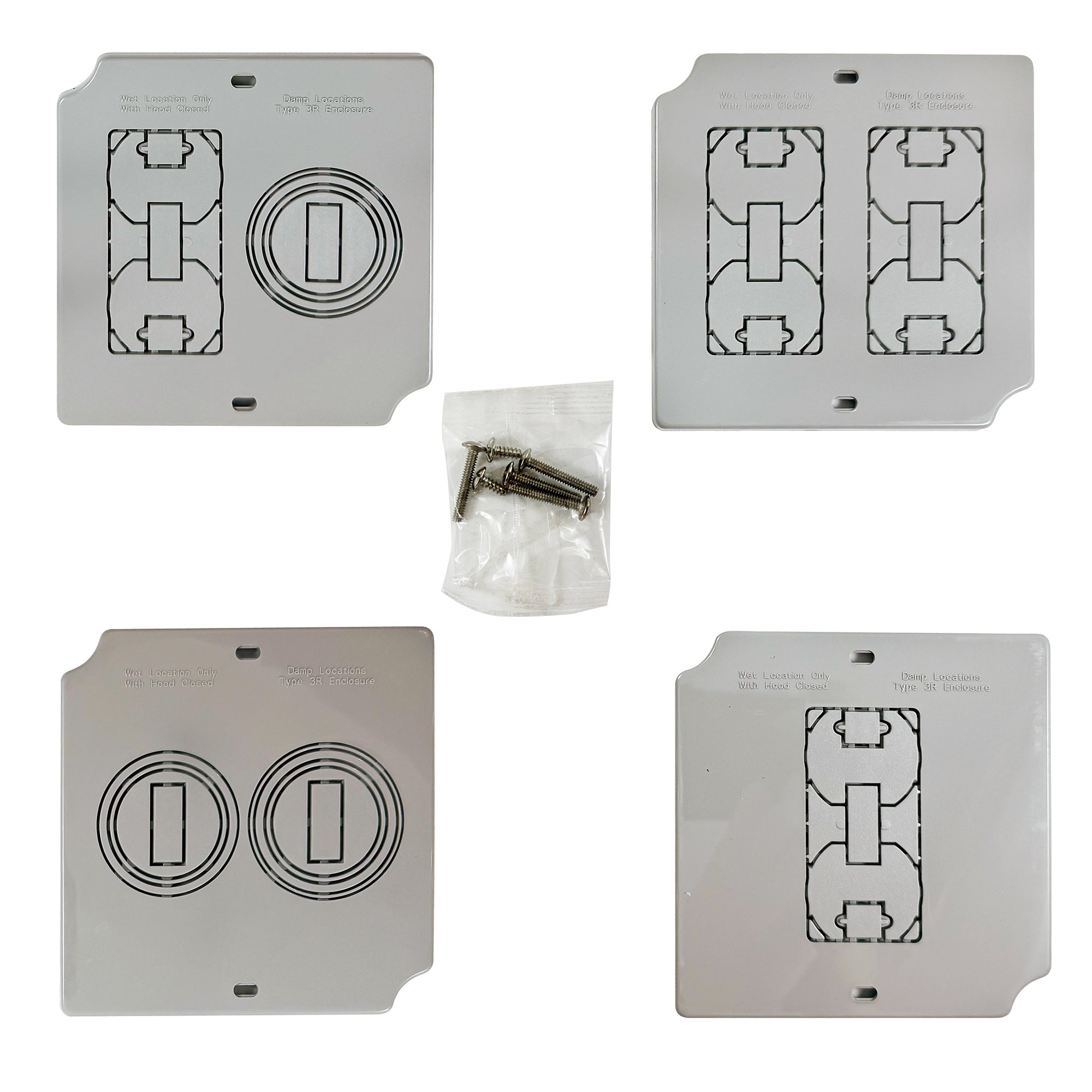

- 1-Gang Box includes 3-inserts for 16 different configurations.
- 2-Gang box includes 3 inserts for over 60 different configurations.
- Box inserts accommodate decora devices, duplex receptacles, & a variety of single receptacles, & toggle switches.
- Cover cord opening fits #12 AWG or lighter.
- Exceeds UL outdoor low voltage landscape lighting requirements.

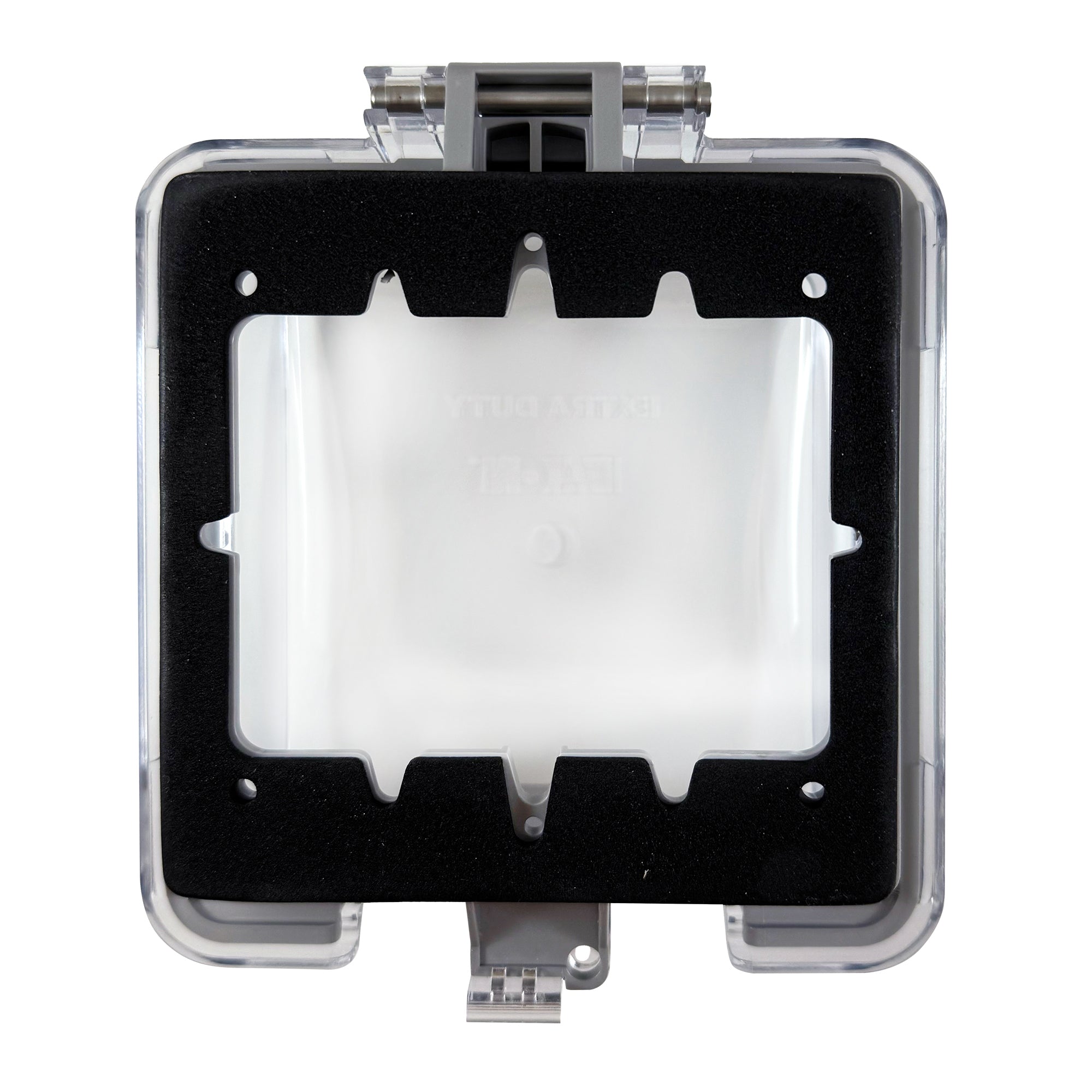

- Box cover includes pre-mounted gasket.

General Specifications
Product Name	Eaton While-in-Use cover
Catalog Number	WIU-2X
UPC	032664739576
Product Length/Depth	3.45 in
Product Height	6.57 in
Product Width	5.7 in
Product Weight	0.838 lb
Compliances	RoHS Compliant
Certifications	cULus Listed
Product Specifications
Product Specifications	Self-closing, 3.25 in depth, Extra duty
Type	While-in-use weather protective cover
Cutout	Multiple Configurations
Orientation	Horizontal, Vertical
Wallplate Size	Standard
Color	Gray
Environmental Conditions	Wet
Mounting Method	Surface
Material	Polycarbonate

Manual:

Eaton WIU-2X Data Sheet 01
Eaton WIU-2X Data Sheet 02
