Eaton 2.4Apm USB Charger with 15Amp Outlet Receptacle Tamper Resistant White
SKU: TR7741W-BOX
$999 $19.99
USD
Description

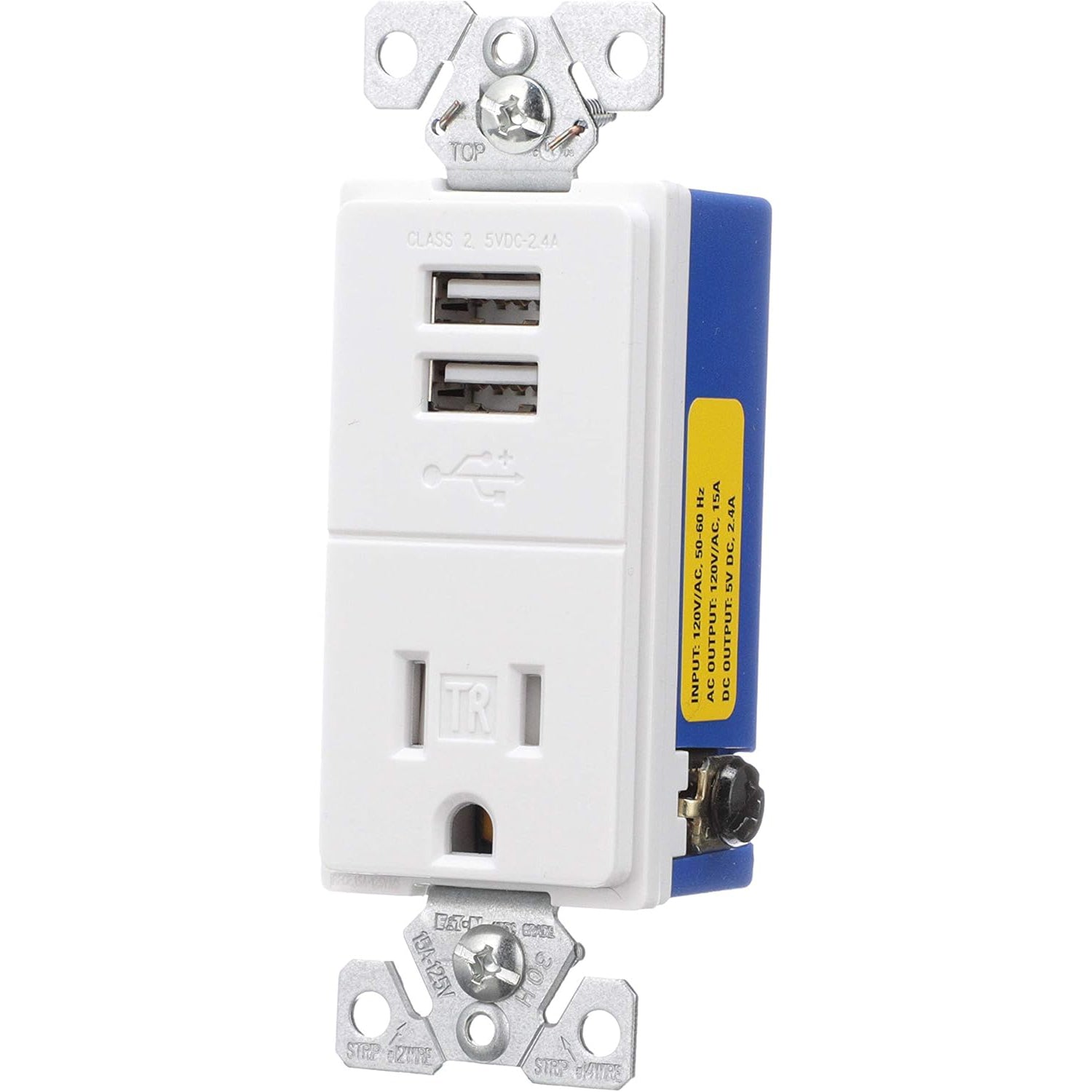

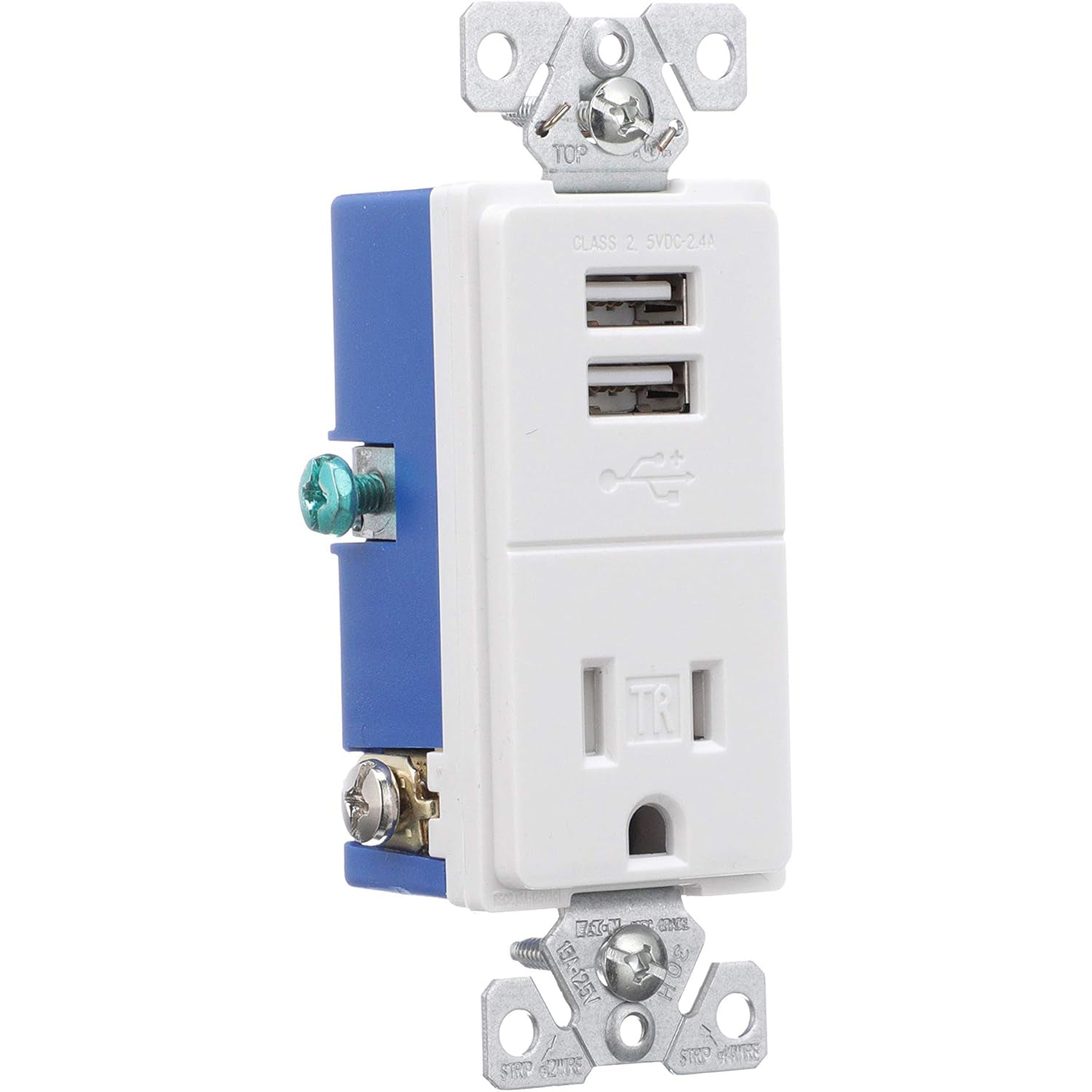

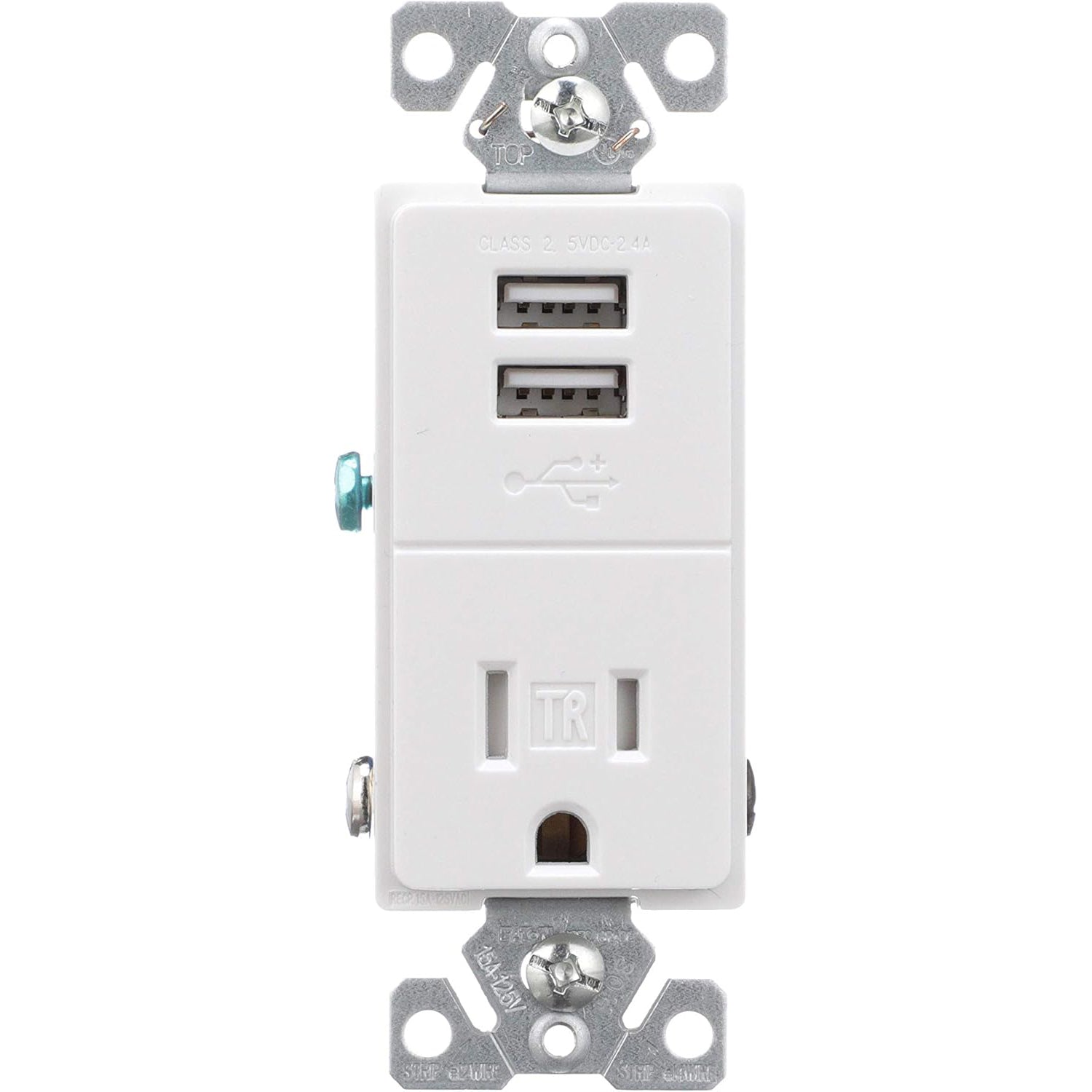

The Cooper Wiring Devices Combination USB Charger features dual USB-A charging ports that charge most compatible electronic devices using a 5-volt charger adapter. This standard USB-A duplex receptacle is rated 2.4 Amp

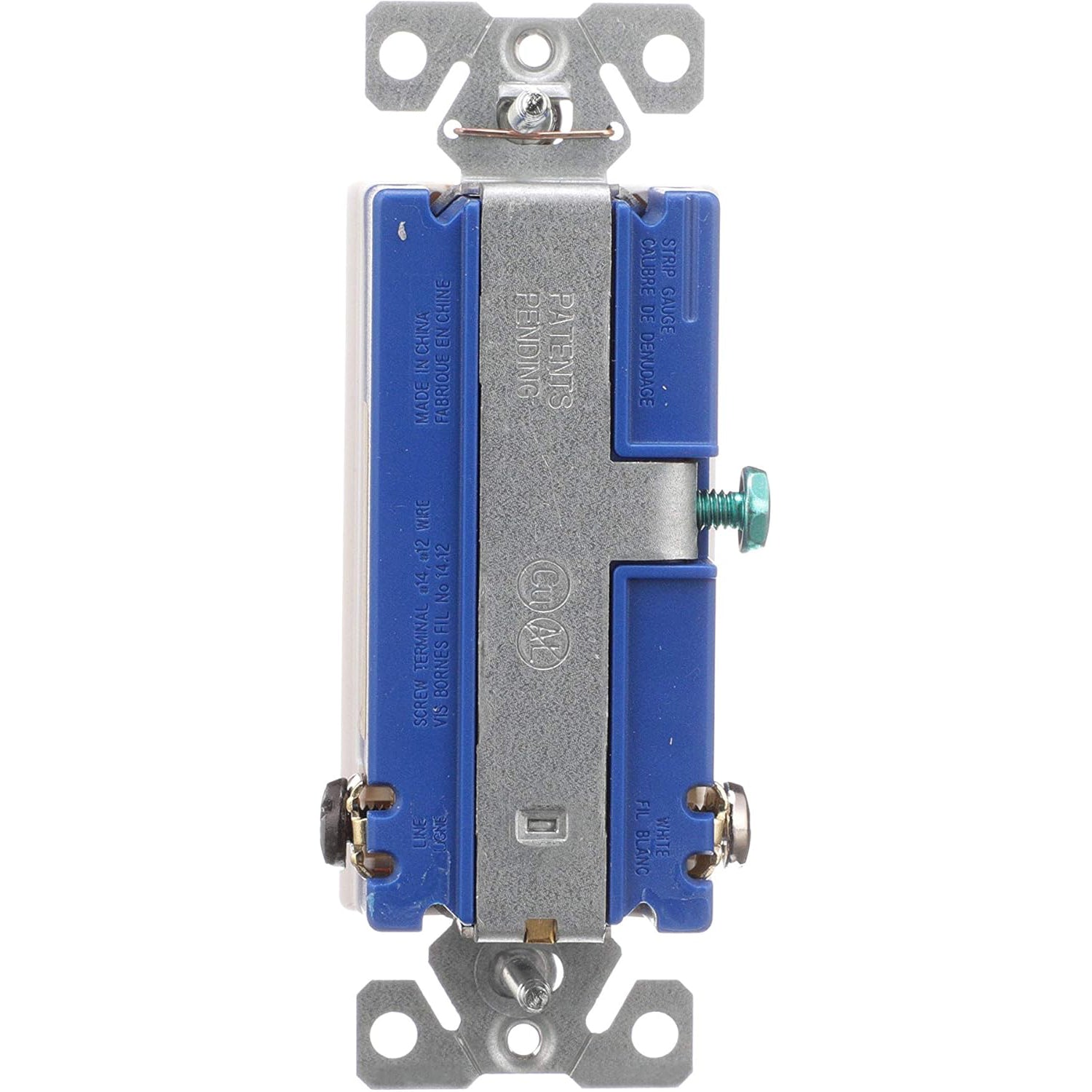

The steel mounting strap is zinc-plated for added corrosion resistance. This unit replaces any standard duplex receptacle with the thermoplastic top and back body, which are virtually unbreakable.
- Standard AC receptacle with 2 USB-A charging ports for conveniently charging most electronic devices.
- Dual USB-A charging ports charge most compatible electronic devices that charge using a 5V power adapter.
- Tamper-resistant shutters provide compliance with 2017 and 2020 NEC which requires that all 15A and 20A, 125V, and 250V, non-locking type receptacles installed in dwelling units must be tamper resistant
- Automatic grounding system removes the need for bonding jumper.
- Thermoplastic top & back-body are virtually unbreakable for durable performance.
- Has zinc-plated steel mounting strap for corrosion resistance.
- Patented built-in wire strippers speeds up installation.

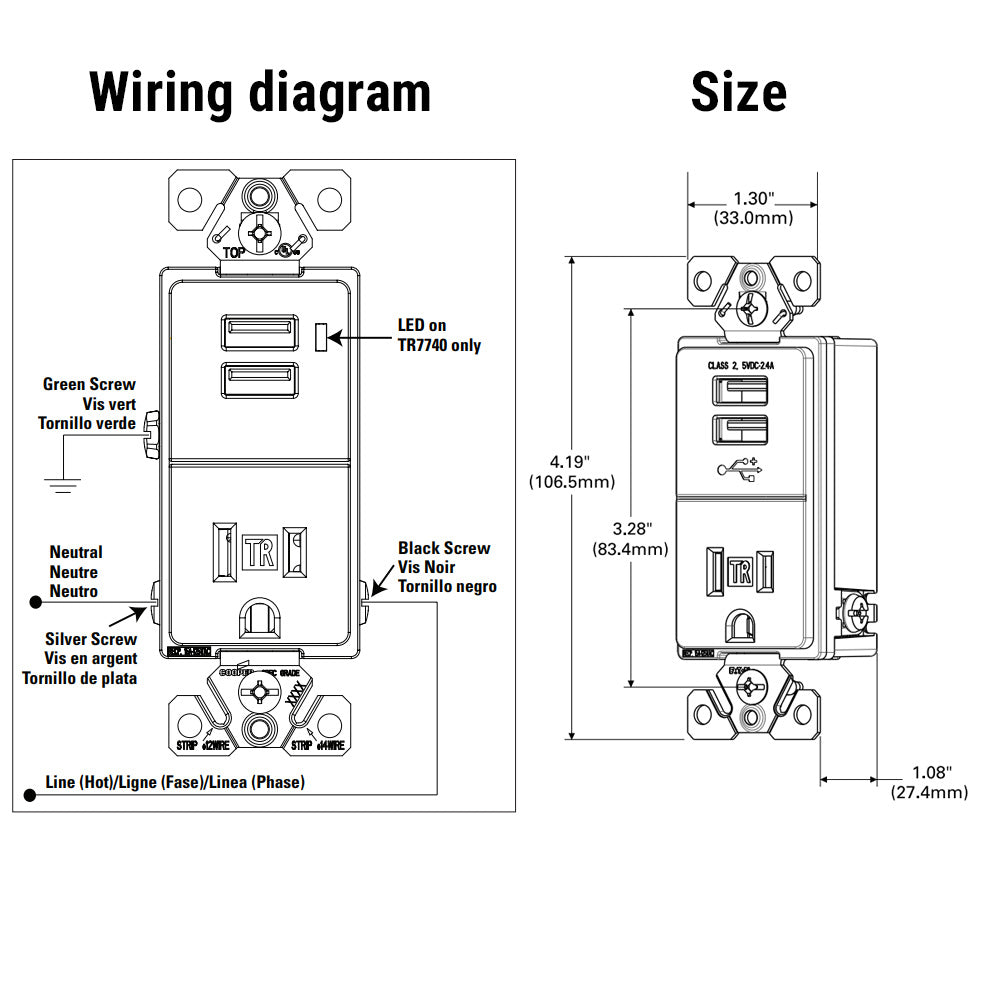

- Backwire clamps on side terminals provide easy installation of #12 & #14 AWG wire.
- Triple wipe blade contacts & double wipe ground contacts to ensure long-lasting plug retention.
- Replaces a standard duplex receptacle.
- Is compatible with a decora-style wallplate - NOT INCLUDED.
Specs
GENERAL CHARACTERISTICS | |
Item Type | Receptacle |
Finish | White |
Control Style | 2-Pole |
Material | Thermoplastic |
ELECTRICAL CHARACTERISTICS | |

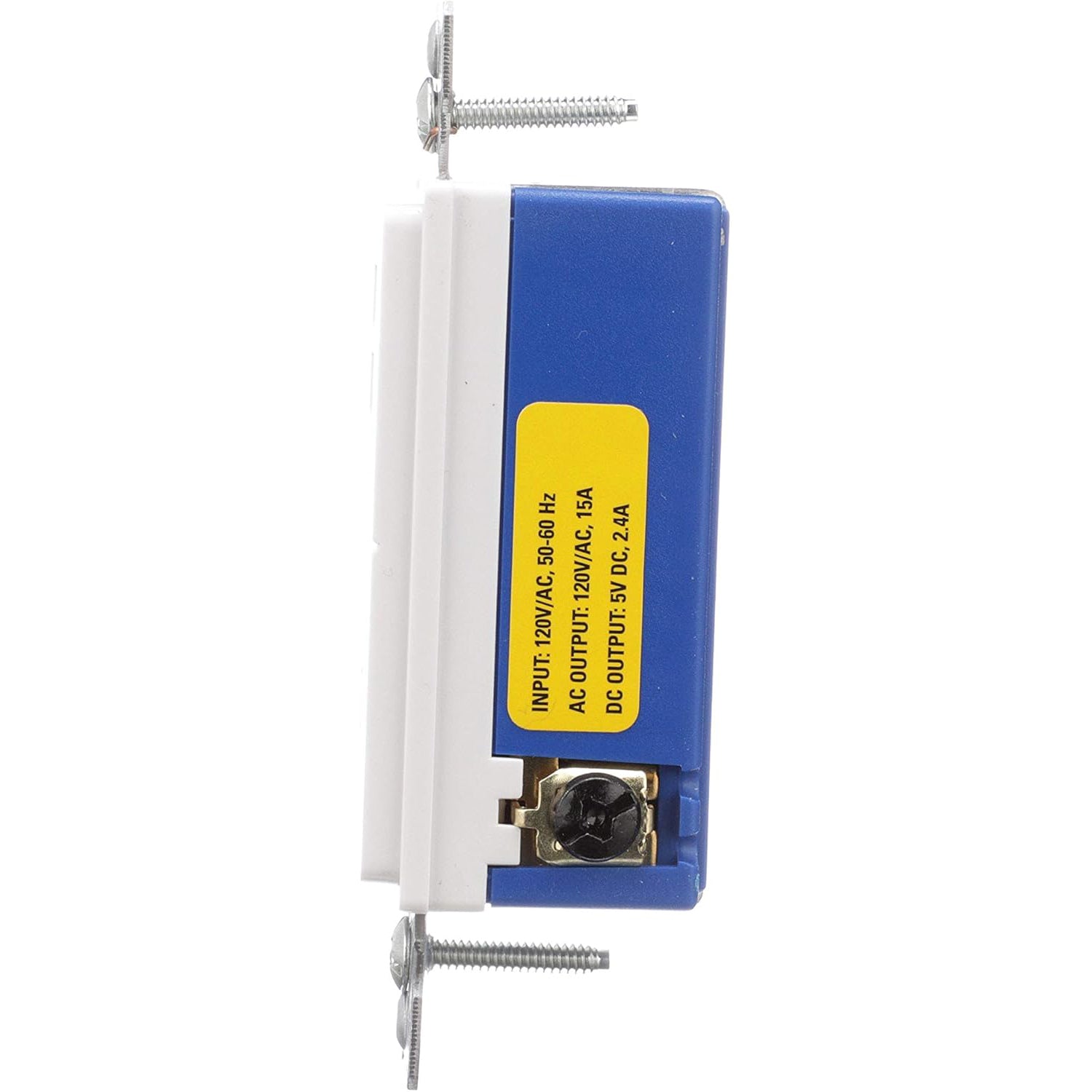

USB-A AMPS | 2.4Amp 5V |
Receptacle AMPS | 15Amp 125V |
PRODUCT DIMENSIONS | |
Package Dimensions (in) | 4.50-in X 1.75-in X 1.88-in |
Weight | 0.24-lb |
PRODUCT DATA | |
Testing & code compliance | cULus Listed to UL498 and UL1310 |
Item Number | ETW-TR7741W |
UPC | 032664745638 |
Brand | Eaton |
Safety Rating | cUL/UL Listed |
