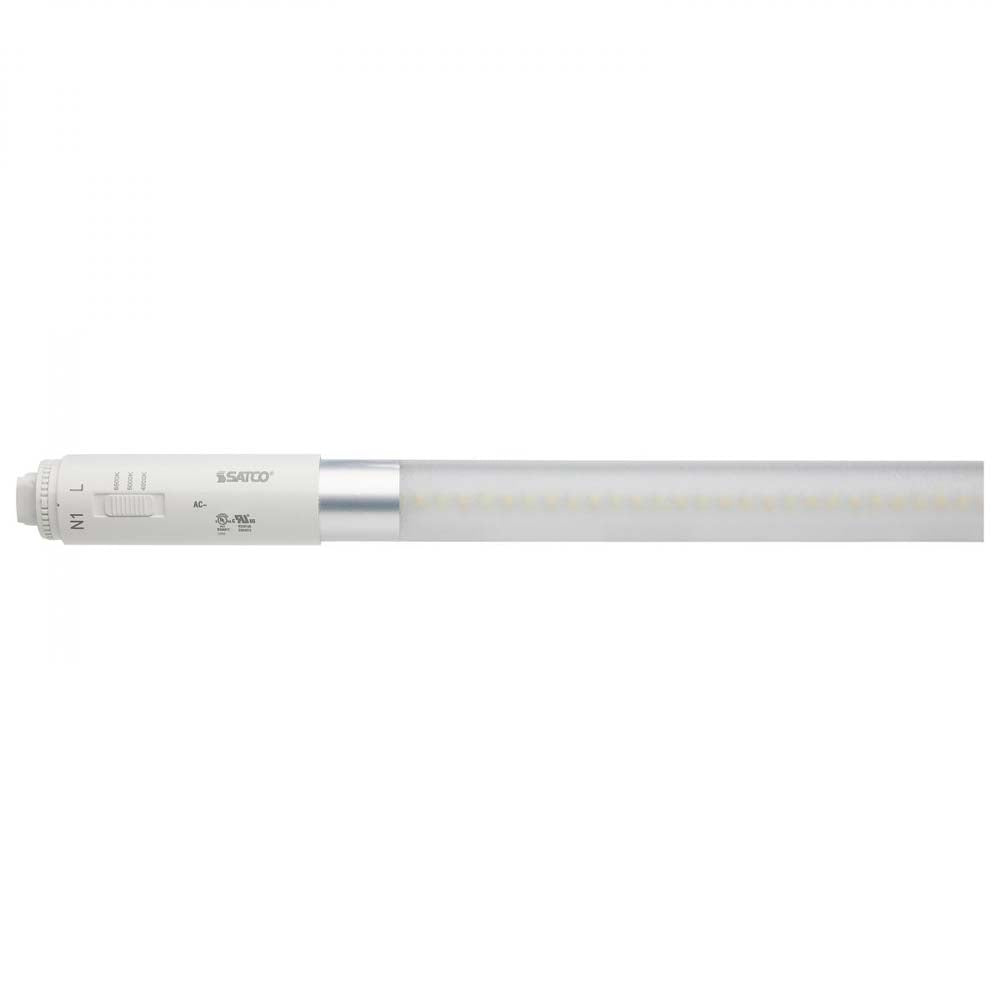

9W T8 LED CCT Selectable Type B Ballast Bypass 120-277v LED Tube

9W T8 LED CCT Selectable Single or Double Ended Type B Ballast Bypass 120-277v

Features:
- Watts: 9W, Incandescent Equivalent: 40W
- Volts: 120V-277V, Shape: T8

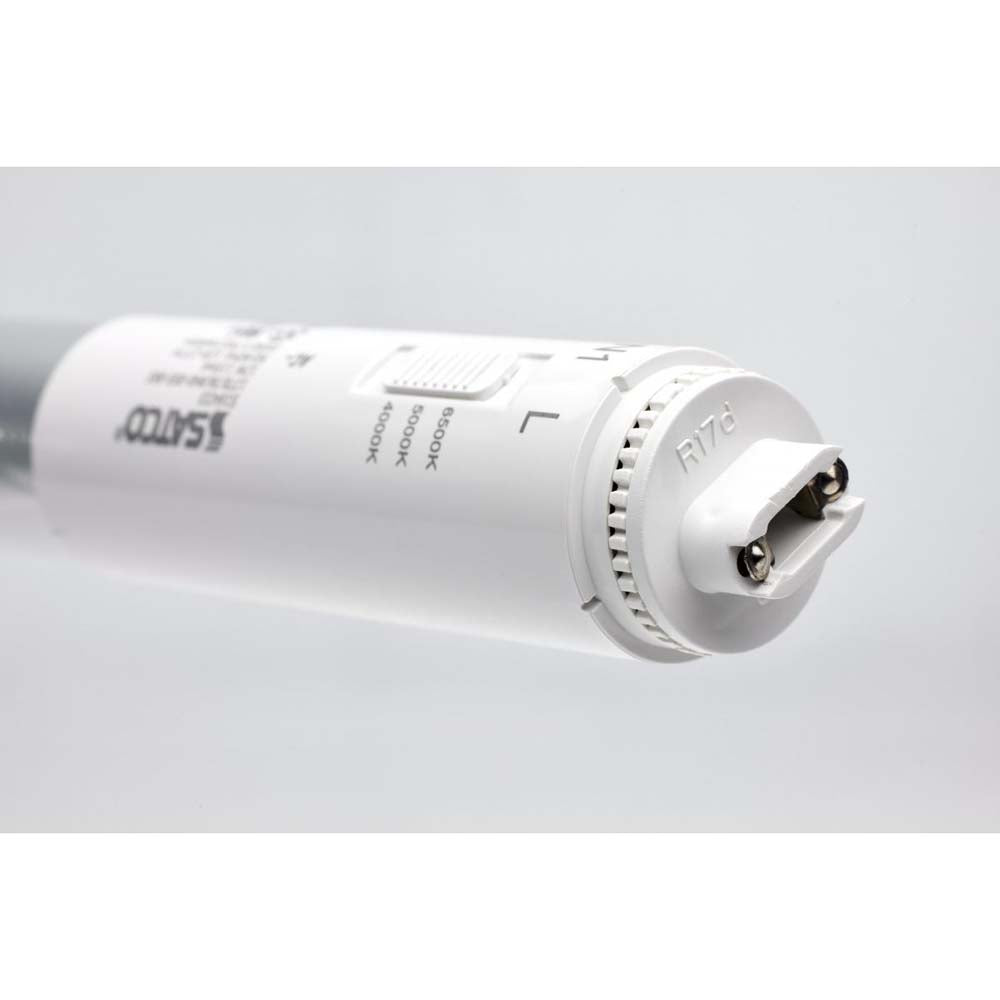

- Base: Recessed Double Contact HO, VHO, ANSI Base: R17d

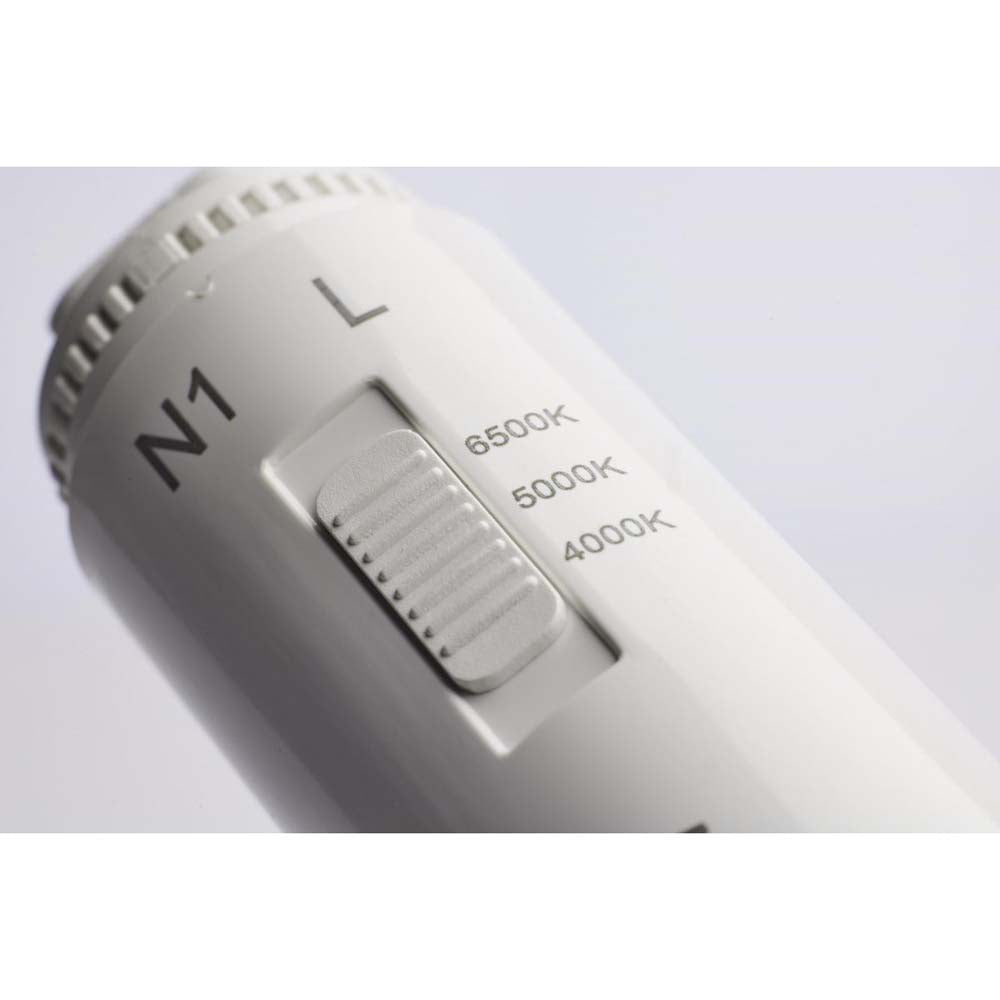

- CCT (Kelvin): 4000K, 5000K, 6500K, Temperature: Cool White to Daylight
- CRI: 83, Lumens: 1250L, 1300L, 1200L
- Beam Spread: 360, Non-Dimmable
- Rated Life: 50,000 hrs
- Warranty: 5 Year Limited

General
Watts	9W
Incandescent Equivalent	40W
Volts	120V-277V
Shape	T8
Base	Recessed Double Contact HO/VHO
ANSI Base	R17d
CCT (Kelvin)	4000K/5000K/6500K
Temperature	Cool White to Daylight
CRI	83
Lumens	1250L/1300L/1200L
Beam Spread	360
Dimmable	Non-Dimmable
Rated Life	50,000 hrs
Lamp Type	Linear
Technology	LED
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	-20C (-4F) to +45C (+113F)
Physical
MOL	21.81
MOD	1.13
Lens Finish	Frost
Lens Material	Plastic
Weight (lb.)	0.33
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	5 Year Limited - T8 LED Bulbs
Compliance
Safety Listing	cRUus - Recognized Component;cULus - Classified;ETLus - SANITATION RECOGNIZED COMPONENT
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S16431 Data Sheet
S11766 Installation Manual
