2X2 Single Basket LED Troffer Fixture CCT Tunable Lumens Tunable 100-277V

Nuvo Lighting SKU: 65-690
$14299 $202.99 USD
379 in stock




Description

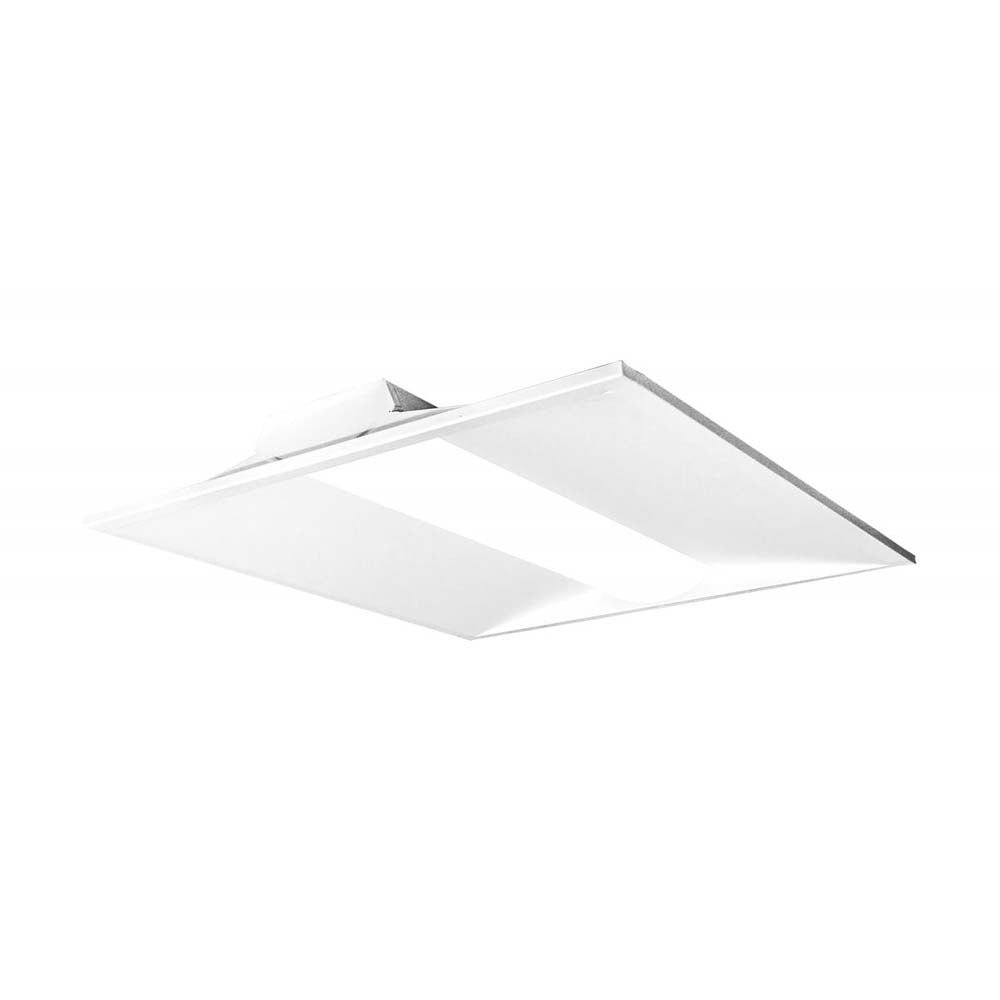

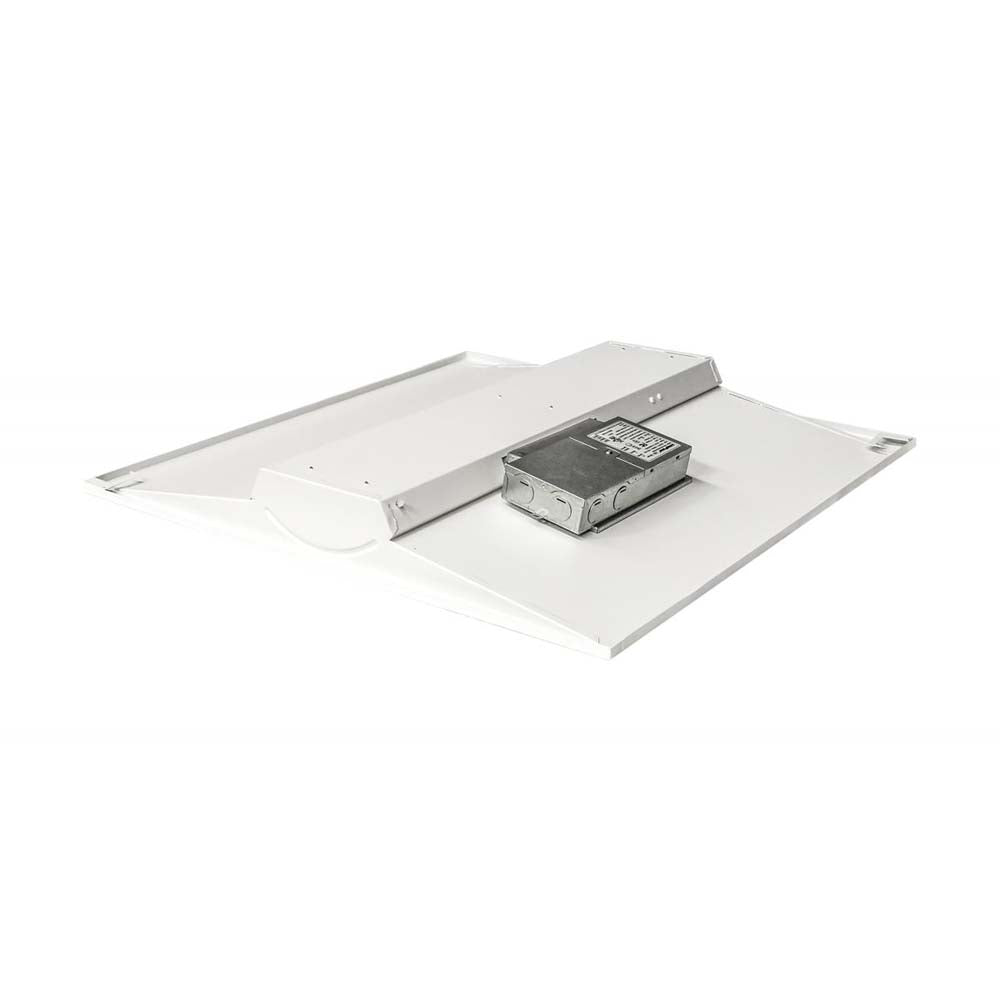

A two foot by two foot single basket troffer which feature selectable wattage and color temperature. The troffer features an acrylic linear prismatic lens which allows for broad, even light distribution. The driver allows for flicker-free illumination, and the troffer drops into a T-bar grid.

Features:
- Volumetric design
- Watts: 30W - 35W - 40W
- Lumens: 3300L - 4400L
- Color temperature: 3500K/4000K/5000K
- Operating temperature: -20C (-4F) to a maximum of 40C (104F)

Specs

General
Finish White
Style Utility
Height (in.) 2.61
Width (in.) 23.74
Length (in.) 23.74
Specifications
Base Integrated
Bulb Type LED
Max Wattage 30W/35W/40W
Voltage 100V-277V
Bulb Included Integrated
Weight (lb.) 6.06
Fixture Type Troffer
Fixture Material Steel
Dimensions
Height (in.) 2.61
Width (in.) 23.74
Length (in.) 23.74
Compliance
Safety Listing cULus - Listed
Location Rating Damp
Energy Star No
CA T20 / T24 Rationale T20 Exempt - Fixtures Not Regulated
California Status Lawful for sale in California
California Prop 65 Lead
RoHS Compliant Yes
FCC Compliant Yes
Additional Information
Warranty 5 Year Limited
