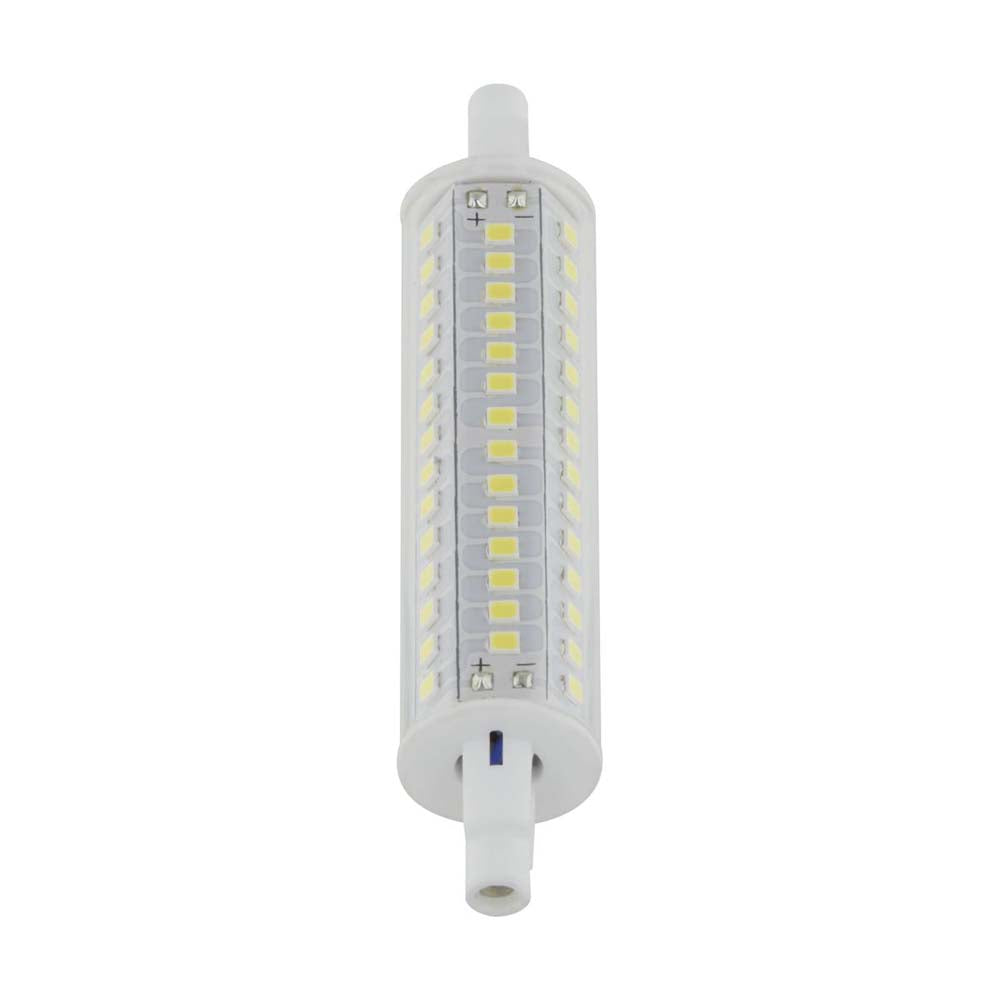

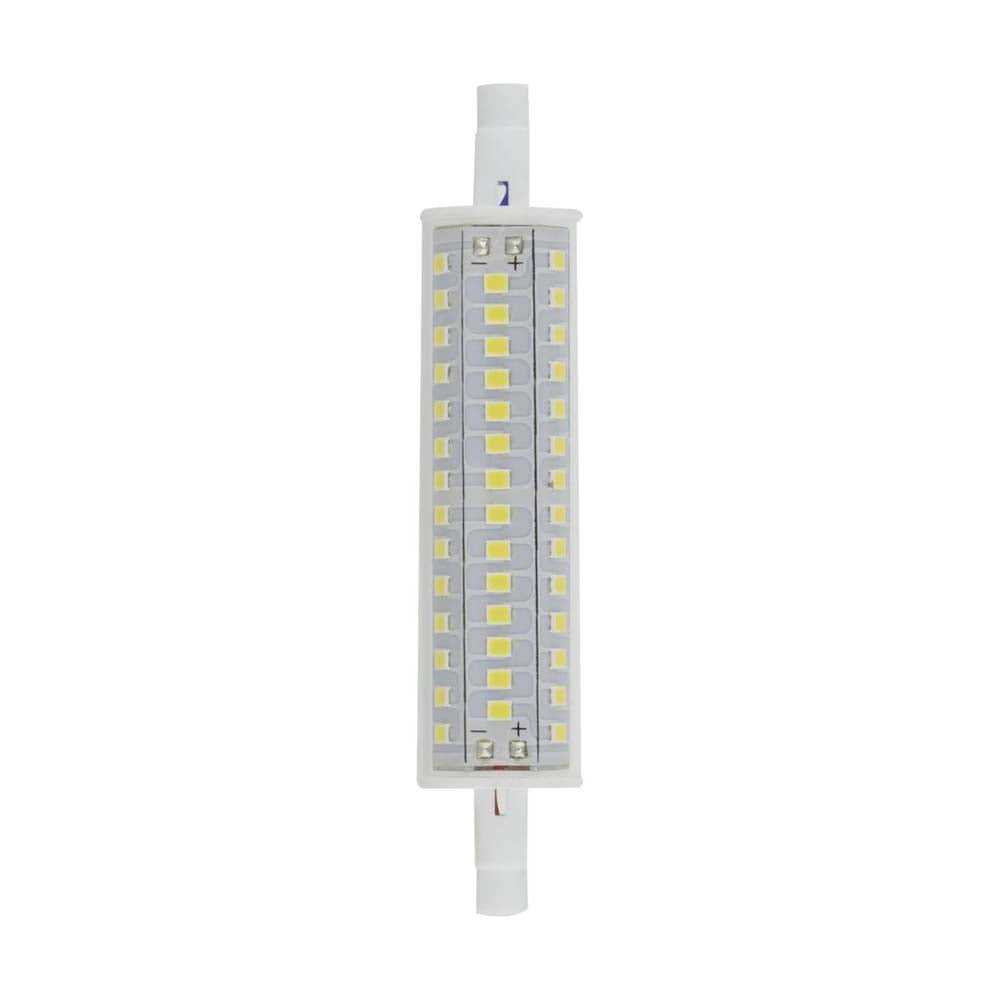

10W LED T3 118mm R7S Base 4000K 200 Beam Angle Double Ended Bulb 120v

Satco 10-watt LED J-type direct halogen replacements help to provide bright, efficient lighting indoors and outside. Illuminate homes, offices, walkways, and paths with this double ended bulb. This dimmable bulb has a 200 degree beam spread and is rated for 15,000 hours of cool white light.

Features:
- Watts: 10W, Incandescent Equivalent: 75W
- Volts: 120V, Shape: T3
- Base: Double Ended Recessed Single Contact, ANSI Base: R7s
- CCT (Kelvin): 4000K, Temperature: Cool White
- CRI: 80, Lumens: 1100L
- Beam Spread: 200, Dimmable
- Rated Life: 15,000 hrs
- Warranty: 3 Year Limited

General
Watts	10W
Incandescent Equivalent	75W
HID Equivalent	100W
Volts	120V
Shape	T3
Base	Double Ended Recessed Single Contact
ANSI Base	R7s
CCT (Kelvin)	4000K
Temperature	Cool White
CRI	80
Lumens	1100L
Beam Spread	200
Dimmable	Yes-Dimmable
Rated Life	15,000 hrs
Lamp Type	J-Type
Technology	LED
Electrical
Operating Frequency	60Hz
Candlepower	150
Power Factor	0.7
Operating Temperature	-20C (-4F) to +45C (+113F)
Physical
MOL	4.65
MOD	0.98
Lens Finish	Clear
Lens Material	Polycarbonate (PC)
Housing Color	White
Weight (lb.)	0.11
Additional Information
Rated For Enclosed Fixture	Yes
Warranty	3 Year Limited
Compliance
Safety Listing	cULus - Listed
Location Rating	Damp
Energy Star	No
California Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S11223 Data Sheet
