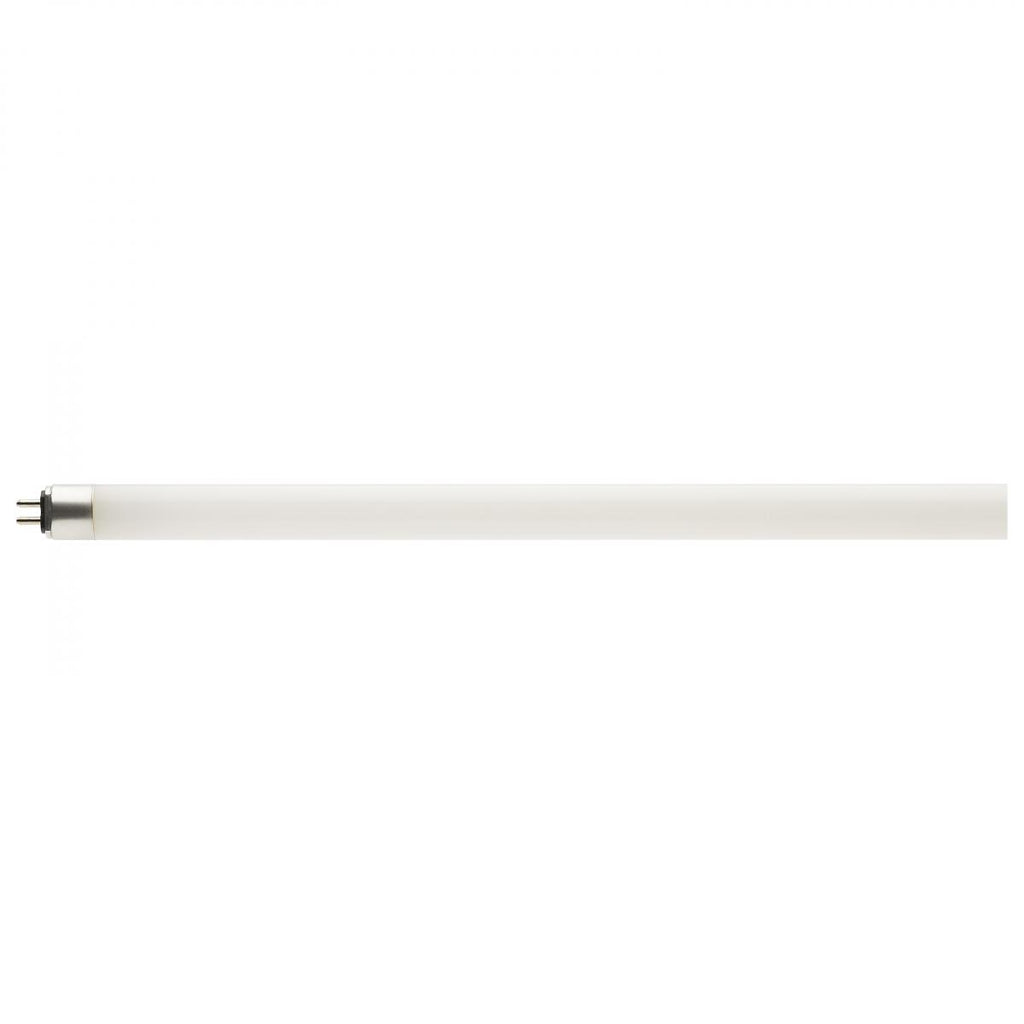

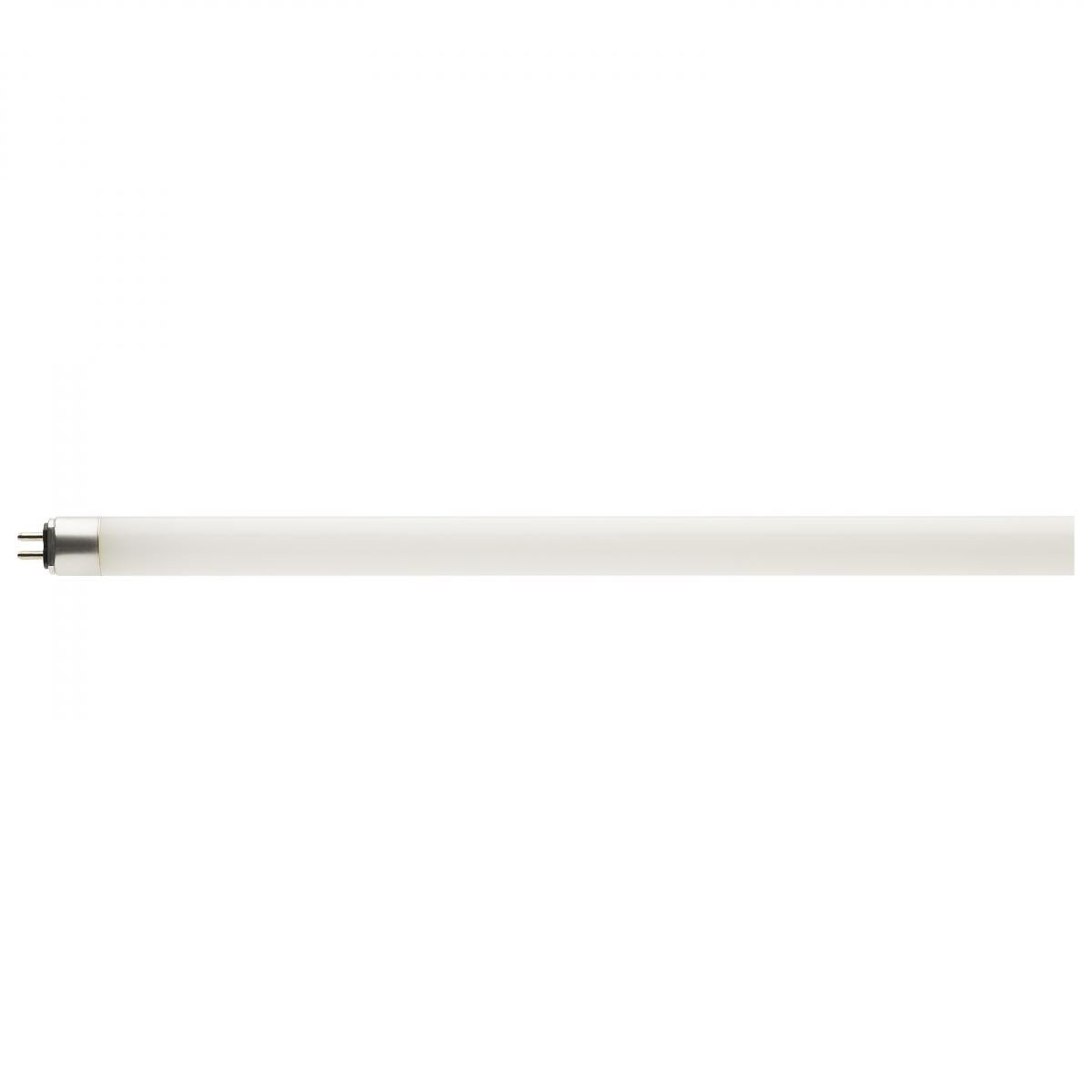

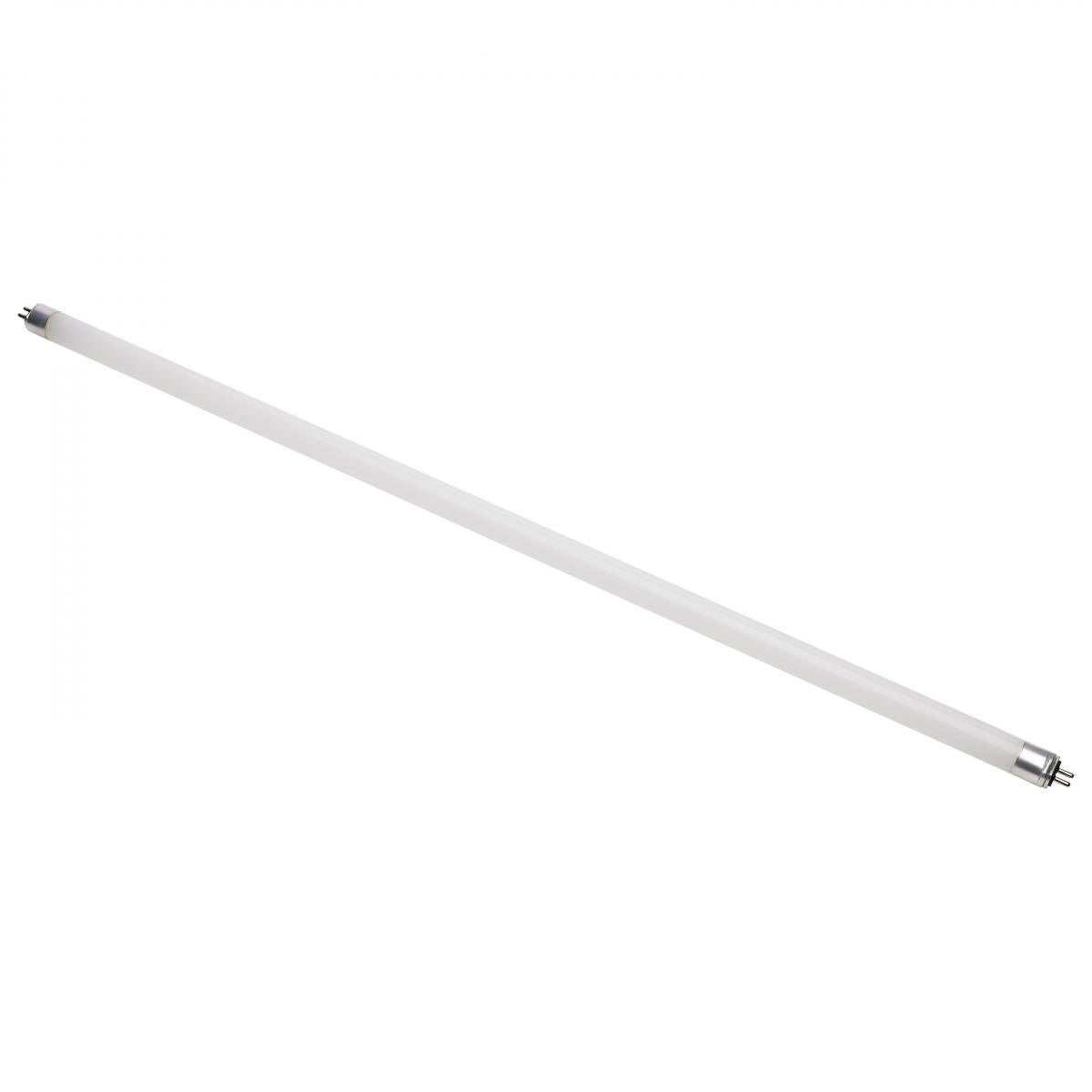

Satco 11w 2-Ft T5 LED Miniature Bi Pin Base 3500K 1350Lm Type A Bulb

SATCO NUVO S19946 2-foot LED Linear T5 Ballast Compatible Lamp has over 50 percent more energy savings when compared to standard T5 systems. The 11 watt, 3500K lamp provides enhanced safety thanks to the integrated thermal fuse located at the pins. The all-glass tube construction not only delivers exceptional clarity, but also adds a touch of elegance to any space.

Features:
- Watts: 11W, Incandescent Equivalent: 50W
- Volts: Ballast Dependent, Shape: T5
- Base: Miniature Bi Pin, Ansi Base: G5
- Finish: White, Lumens: 1350L
- Temperature: Neutral White, CCT (Kelvin): 3500K
- Warranty: 5 Year Limited

General
Watts	11W
Incandescent Equivalent	50W
Volts	Ballast Dependent
Shape	T5
Base	Miniature Bi Pin
Ansi Base	G5
Finish	White
CCT (Kelvin)	3500K
Temperature	Neutral White
CRI	80
Lumens	1350L
Beam Spread	185
Dimmable	Yes-Dimmable
Rated Life	50000
Electrical
Operating Frequency	50/60Hz
Power Factor	0.9
Operating Temperature	-20C (-4F) to 45C (113F)
Physical
MOL	22.5
MOD	0.63
Housing Color	None
Weight (lb.)	0.13
Additional Information
Rated For Enclosed Fixture	Yes
Installation Notes	Not for use in vapor tight fixtures.
Warranty	5 Year Limited
Compliance
Safety Listing	cULus - Certified;cULus - Listed
Location Rating	Damp
California Status	Lawful for sale
Title 20 / 24 Status	Lawful for sale
RoHS Compliant	Yes
FCC Compliant	Yes

Manual:

S19946 Data Sheet
S19946 Installation Manual
