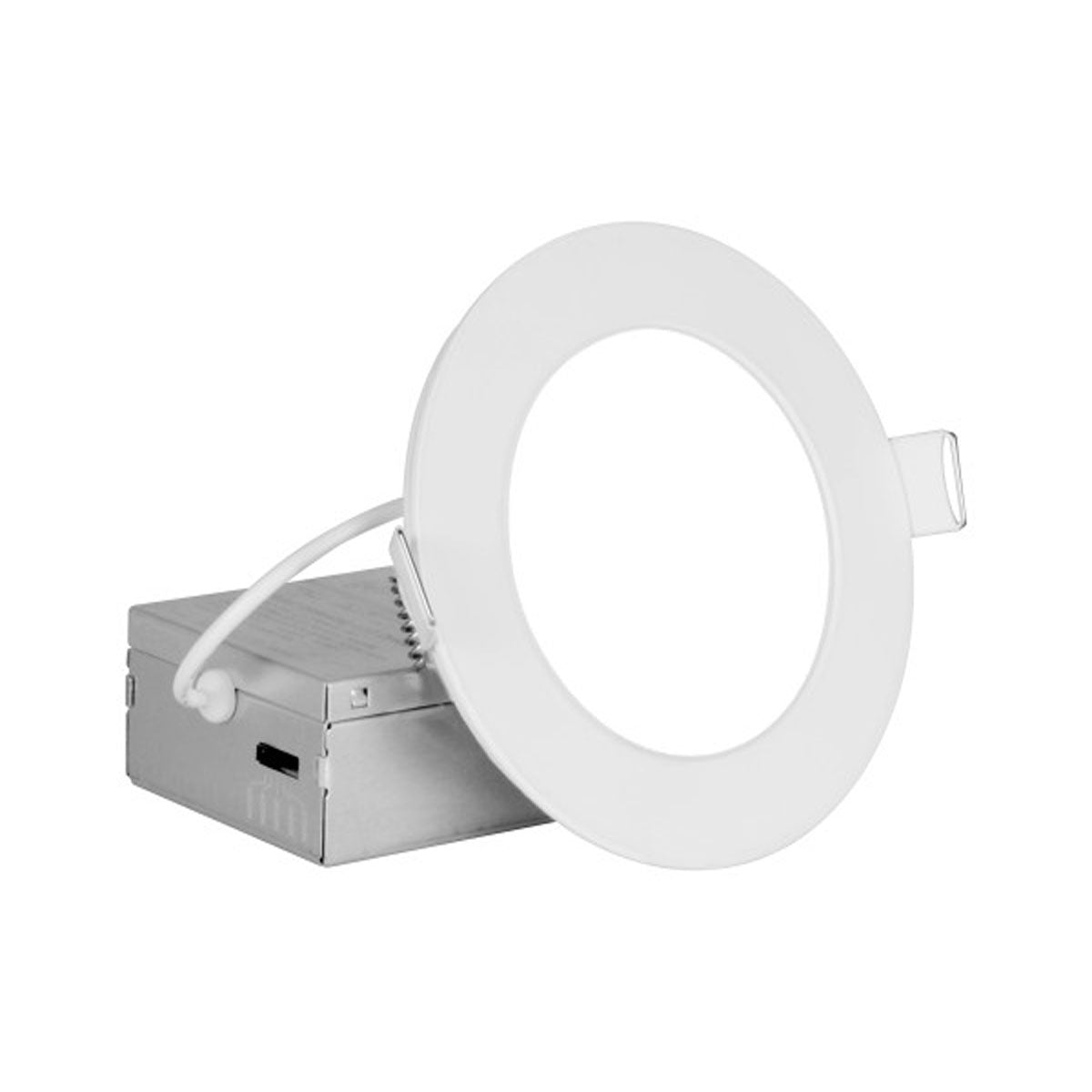

Nicor REL Selectable 4-in White Remodel LED Downlight Kit

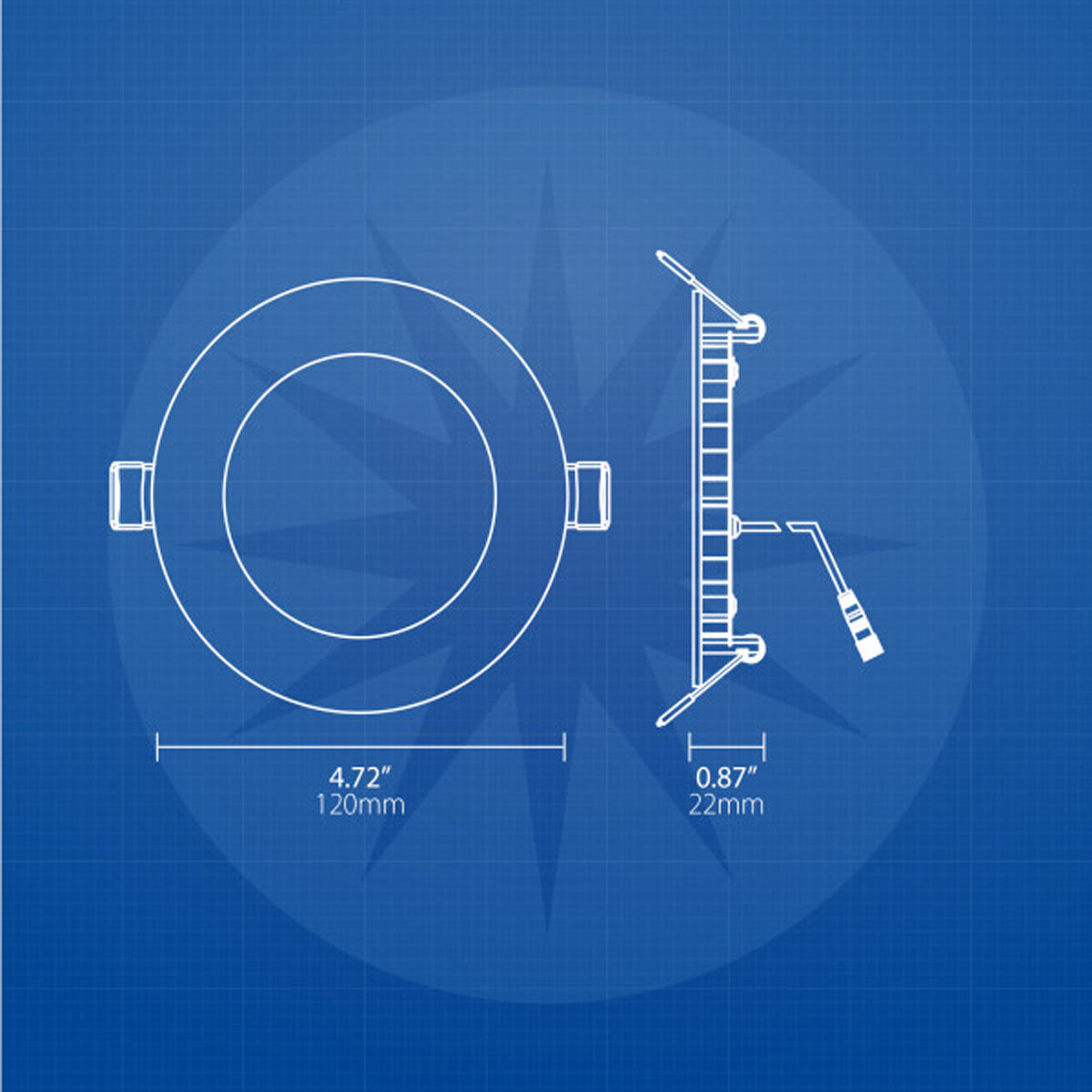

NICOR REL Series 4-in Selectable CCT Round Canless LED Downlight offers a clean and attractive aesthetic with a low-profile. The edge-lit technology allows for a very thin recessed design measuring less than an inch in depth. Easily change between 5 color temperature options (2700K, 3000K, 3500K, 4000K, 5000K) with the CCT selector switch on the driver. The high-performance REL Fixture features an impressive 92 CRI rating (R9 >50) to produce an incredible light output quality. Installation no longer requires a recessed housing, but rather a simple 4.25-in diameter drywall cut-out using the provided template. The ultra-thin fixture depth and off-board driver (included) allows for a more flexible installation and increased product lifespan through superior heat management. The adjustable, spring-loaded retention tabs provide a secure fit, eliminating the need for a junction box or recessed housing. The REL comes ready to install right out of the box, no other parts or components are required. Protected by NICOR 5-year limited warranty.

Features:

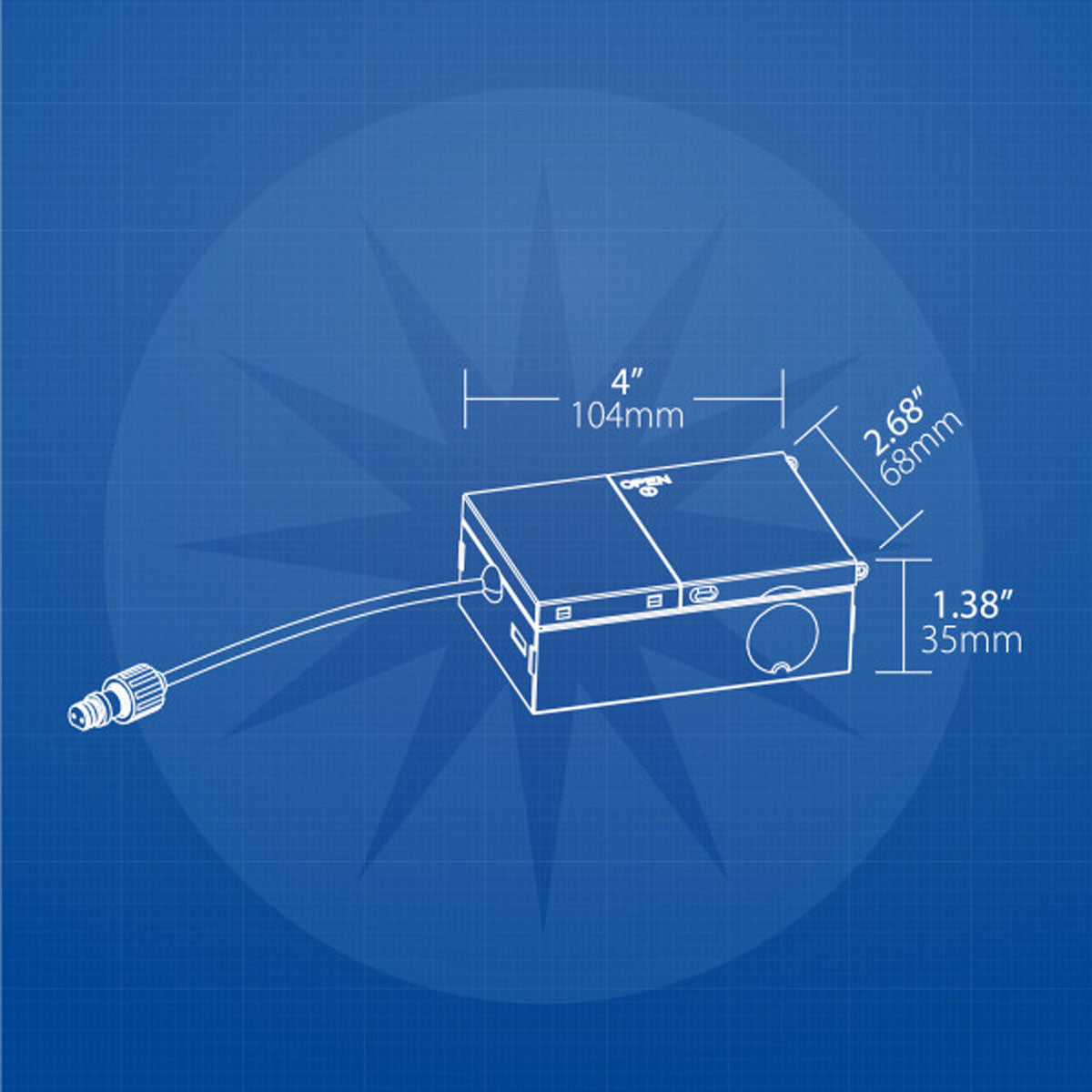

- Includes downlight, driver/junction box, and linking cable
- Five selectable color temperatures (2700K, 3000K, 3500K, 4000K, and 5000K)
- Available in four sizes: 3-in, 4-in, 6-in, and 8-in fixtures
- Produces up to 768 Lumens using less than 11-Watts
- Installs directly into ceiling, no housing required
- 4.25-in diameter cut-out template included
- Dimmable to 5 percent using standard TRIAC or ELV dimmers
- Airtight, Wet-Location, and Insulation Contact Rated (IC-Rated)
- Energy Star rated, Title 24, JA8, and RoHS Compliant
- Protected by NICOR 5-year limited warranty

Size	4
Product Color	White
Finish	Powder Coat
Shape	Round
Light Source	LED
Wattage	10.64
Wattage Equivalent	65
Lumen	768
Color Temperature (CCT)	5000k
CRI	92
R9 Value	54
Dimmable	Yes - Dimmable
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	cETL Intertek Listed, Wet-Location (cETLus 1598), Title 24 (Except 5000K), JA8 (Except 5000K), IC-Rated, Airtight, ASTM 283 Compliant, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), RoHS Compliant, FCC Class B
Other Certifications	Testing performed in accordance with IESNA standards Meets or exceeds ASTM-283 ait tight requirements
Warranty	5 Year Limited
