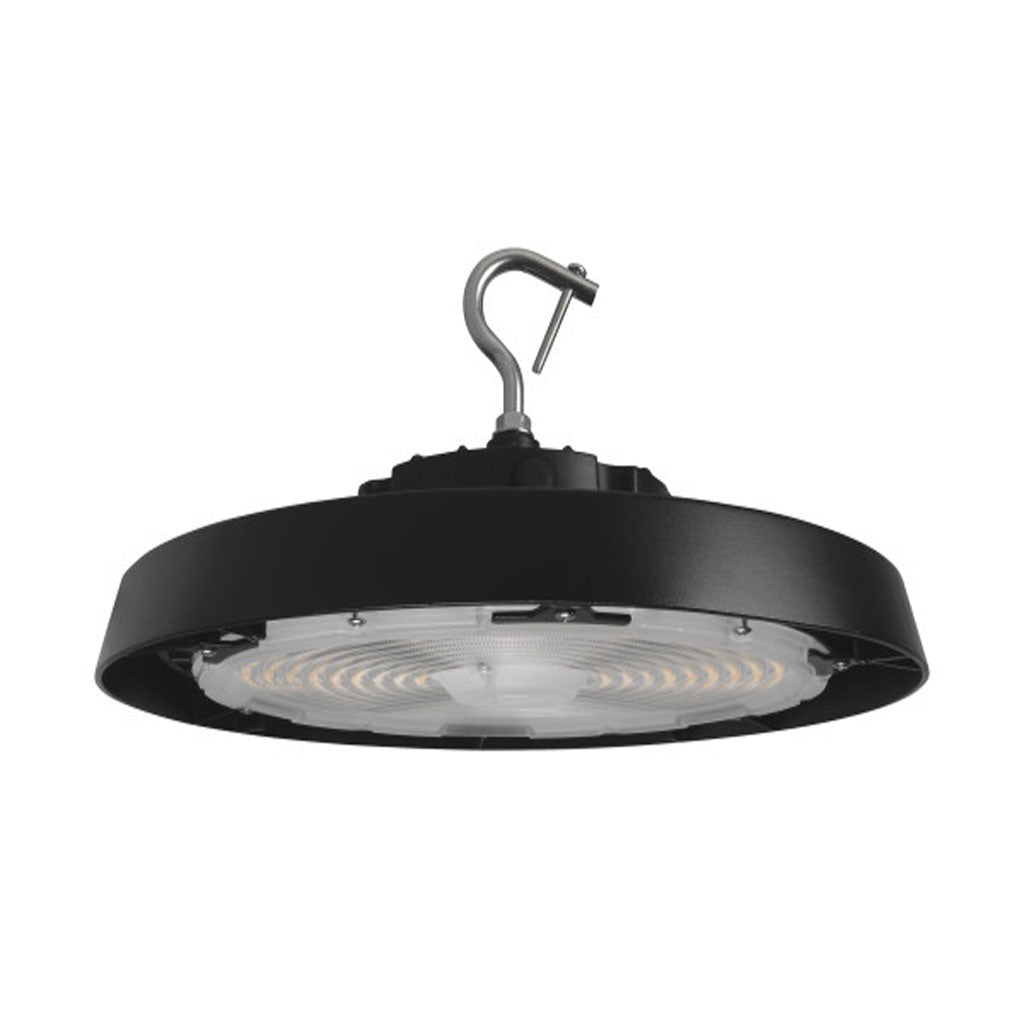

Nicor HBC5 240W Black Selectable LED UFO High Bay

The HBC5 LED Circular Low-Bay/High-Bay is a leading high-performance lighting solution with Selectable wattage and Selectable color temperature. With a sleek and compact form, it offers improved energy efficiency with low-voltage accessory features. The die-cast aluminum housing with integrated heatsink is designed with multiple mounting points for added options and accessories. The HBC5 produces an impressive light output exceeding 130 lumens per watt and excellent color rendering for true clarity. The impact-resistant polycarbonate lens provides consistent light dispersion, while optional reflectors help reduce glare and provide specific light distribution. The HBC5 operates at 120-277V with 0-10V dimmingd a 12V accessory wire for Bluetooth control via the NICOR NLC app. Add a 40W emergency backup for added safety and security. Reach out to NICOR for NLC Control and EM 40W Backup options. The HBC5 is the ideal fixture for warehouses, retail stores, gymnasiums, and other large indoor spaces.

Features:
- 3 Selectable CCT Options :3500K, 4000K, 5000K
- 3 Selectable Wattage Options: 200W, 220W, 240W
- Black Powder Coat Finish
- Produces 27183-34968 Lumens (varies by settings)
- Full Range 0-10V Dimming
- Wet-Location, IP65 Rated
- DLC Premium Listed
- 6kV/3kA Surge Protection
- 54,000 Hour Lifespan
- 5-Year Limited Warranty

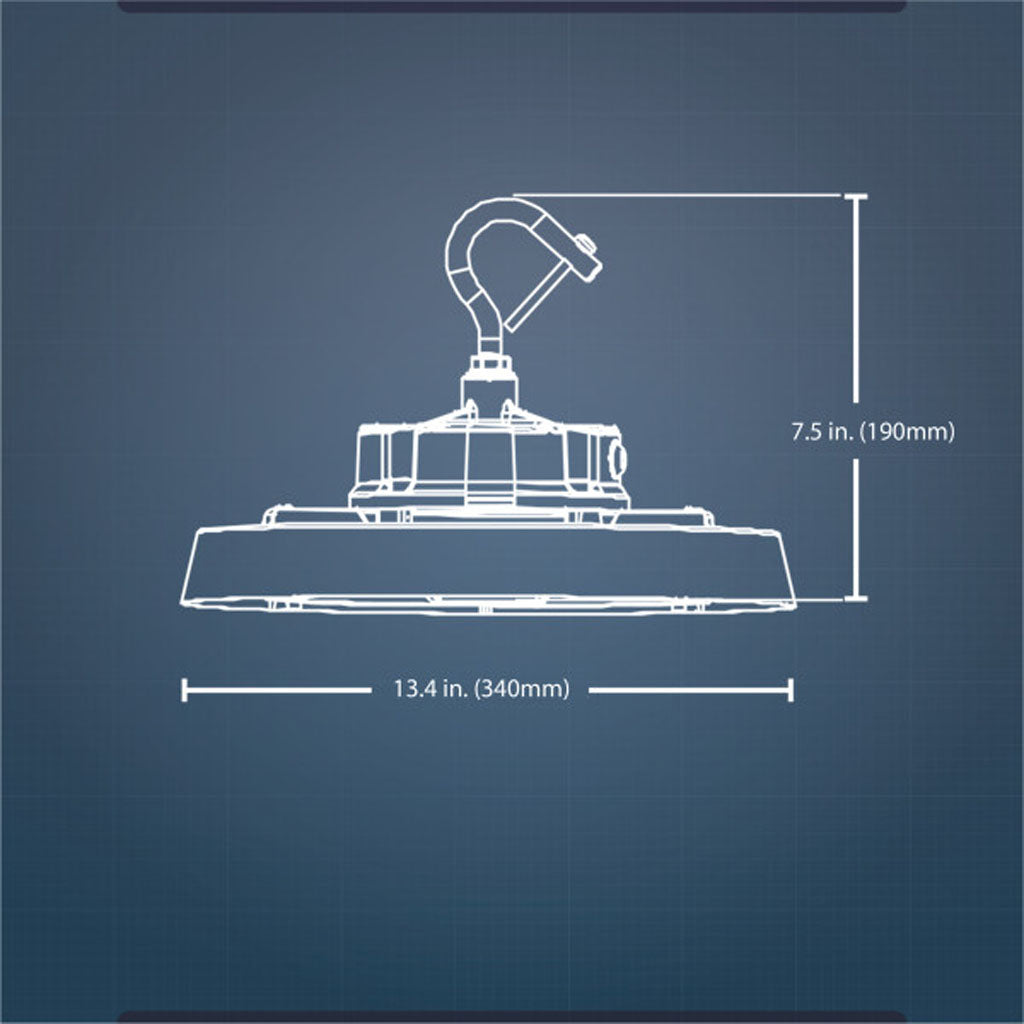

Size	13.4
Product Color	Black
Finish	Polyester Powder Coat
Light Source	LED
Wattage	240
Wattage Equivalent	1000
Lumen	33054
Color Temperature (CCT)	5000k
CRI	82
Dimmable	Yes - Dimmable
Operating Temperature	-40F to 122F (-40C to 50C)
Listings/Certifications	UL Certified, DLC 5.1 Premium, NSF Certified, ANSI 2 - Food Equipment Listed, IP65, RoHS Compliant, FCC Class B, Wet-Location (cULus 1598)
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards
Warranty	5 Year Limited

Manual:

HBC5240SUS8BK Data Sheet
HBC5240SUS8BK Data Sheet
