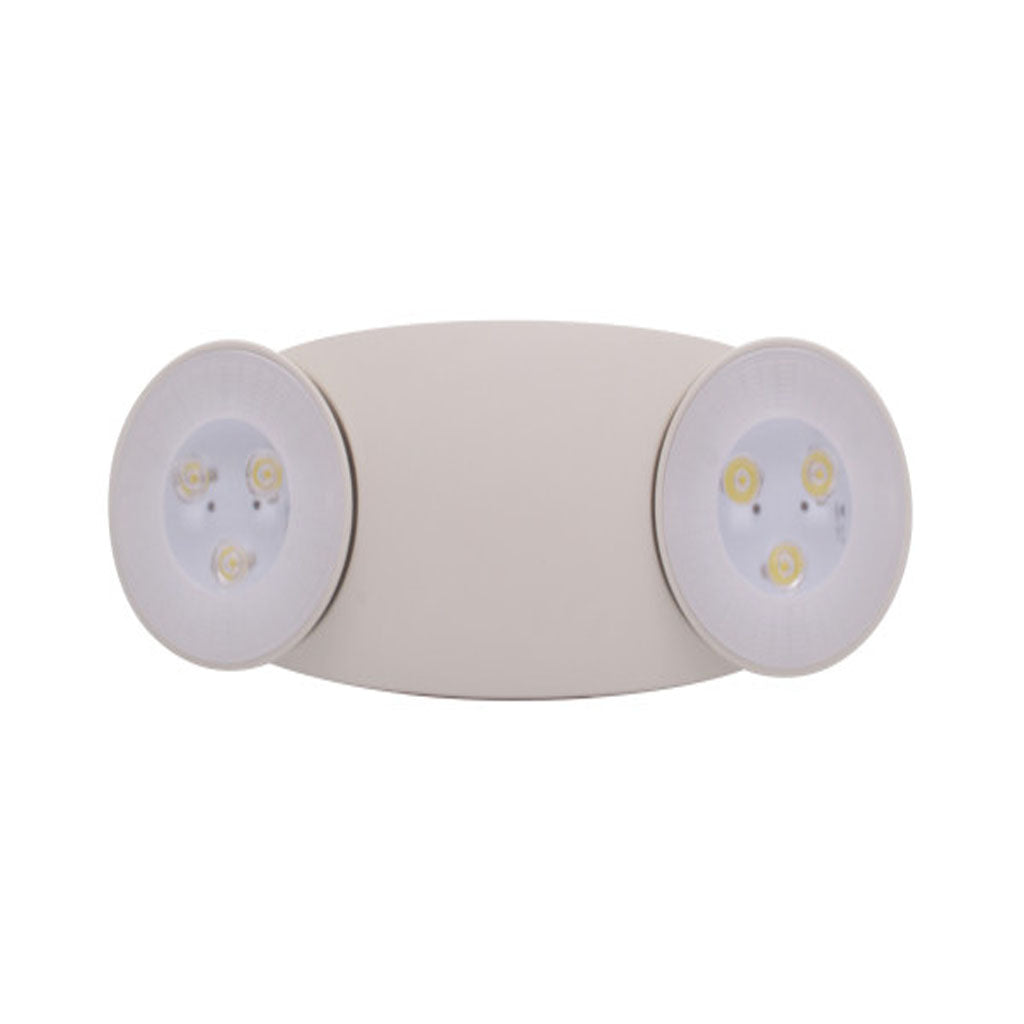

Nicor EML Series High-Output Emergency LED Light Fixture with Battery Backup

The NICOR EML7 Series emergency light is a high-output solution intended for higher mounting requirements. Designed with high output LEDs, the EML7 has exceptional light distribution and a maintenance-free nickel-cadmium battery to provide 90-minutes of emergency backup. The EML7 is equipped with two adjustable light heads and a self-test button with LED indicator. The injection-molded thermoplastic housing is UL-94v-0 flame retardant and damp-location rated. The EML7 is dual-voltage ready (127/277VAC) and covered by NICOR 1-year limited warranty.

Features:
- Injection molded thermoplastic ABS housing
- LED light heads provide over 700 lumens, allowing the fixture to be mounted as high as 12.5 ft.
- Adjustable heads for aiming light where required: Head tilt: +25 degto -90 deg; Head rotation: 330 deg
- 90-minute emergency battery backup operation
- LED indicator light & self-test push button switch
- 6-Volt universal input at 120/277VAC
- CEC Title 20 compliant, UL 924 listed, and Damp-location rated
- Surface wall mounting plate with back entry knockout for easy installation
- 1-year limited warranty

Size	12
Product Color	White
Finish	Matte
Light Source	LED
Wattage	3.5
Lumen	705
Color Temperature (CCT)	5000k
Operating Temperature	32F to 104F (0C - 40C)
Listings/Certifications	UL Listed, cUL Listed, CEC Title 20 Compliant, UL 924 Listed, UL-94-V-0 Flame Retardant, Damp-Location
Warranty	1 Year Limited

Manual:

EML71UNVWH Data Sheet
EML71UNVWH Data Sheet
