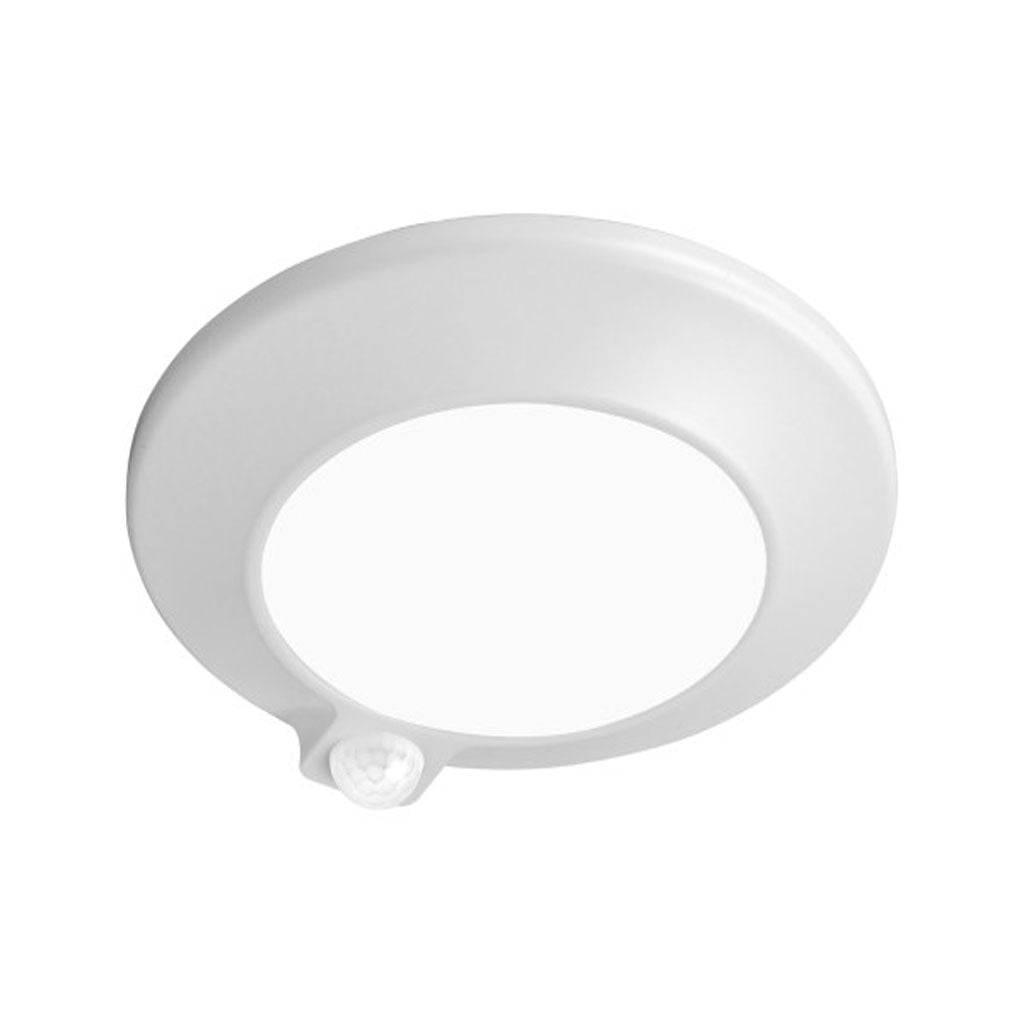

Nicor 4-in Selectable Surface Mount Downlight with PIR Motion Sensor

NICOR RSDS-M Series 4-in Selectable LED Surface Mount Disk Light with Integrated Passive Infrared (PIR) Motion Sensor provides a fully dimmable flush-mount solution to provide automated on/off control. The PIR motion sensor turns on automatically when entering a room and turns off 30 seconds after leaving the room. The high-performance RSDS-M downlight lets you easily switch between 3 different color temperature options (3000K, 4000K, 5000K) using a switch located on the backside of the fixture. In terms of light output quality, the RSDS-M features an impressive CRI rating of 91 with an R9 value of 50. This helps to produce vibrant colors that are true in appearance. Installation is easier than ever, done behind a removable twist-n-lock diffuser lens to simply mount directly to any 4-in junction box using the hardware included. The RSDS-M is perfect for bringing efficient and energetic lighting with motion controls to any room for a clean and professional look. The RSDS-M comes ready to install right out of the box and requires no other parts or components. It's available in both 4-in and 6-in sizes and protected by NICOR 5-year limited warranty.

Features:
- Three selectable color temperatures (3000K, 4000K, and 5000K)
- Integrated passive infrared (PIR) motion sensor
- Light turns ON when motion is detected, and OFF after 30 seconds of inactivity
- Installs into any 4-in pancake, 4-in non-metallic, or 4/O junction box
- Removeable twist-n-lock lens for seamless installation
- Durable aluminum body with UV-stabilized diffuser lens
- Dimmable down to 5 percent using standard TRIAC or ELV dimmers
- Produces up to 658 Lumens using less than 10-Watts
- RoHS compliant, Airtight, and Wet-Location rated
- Energy Star, Title 24, and JA8 compliant
- Protected by NICOR 5-year limited warranty

Size	4
Product Color	White
Finish	Matte
Shape	Round
Light Source	LED
Wattage	9.73
Wattage Equivalent	60
Lumen	620
Color Temperature (CCT)	5000k
CRI	91
R9 Value	50
Dimmable	Yes - Dimmable
Operating Temperature	-4F to 104F (-20C to 40C)
Listings/Certifications	ETL Intertek Listed, cETL Intertek Listed, Title 24, JA8 Compliant, Airtight, RoHS Compliant, FCC Class B, NFPA 70 Compliant, NEC 410.16 (A)(3), NEC 410.16 (C)(5), Wet-Location (cETLus 1598)
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards Compliant with NFPA 70, NEC Section 410.16 (A)(3) and 410.16 (C)(5) for closet use
Warranty	5 Year Limited

Manual:

RSD41120SWHM Data Sheet
RSD41120SWHM Data Sheet
