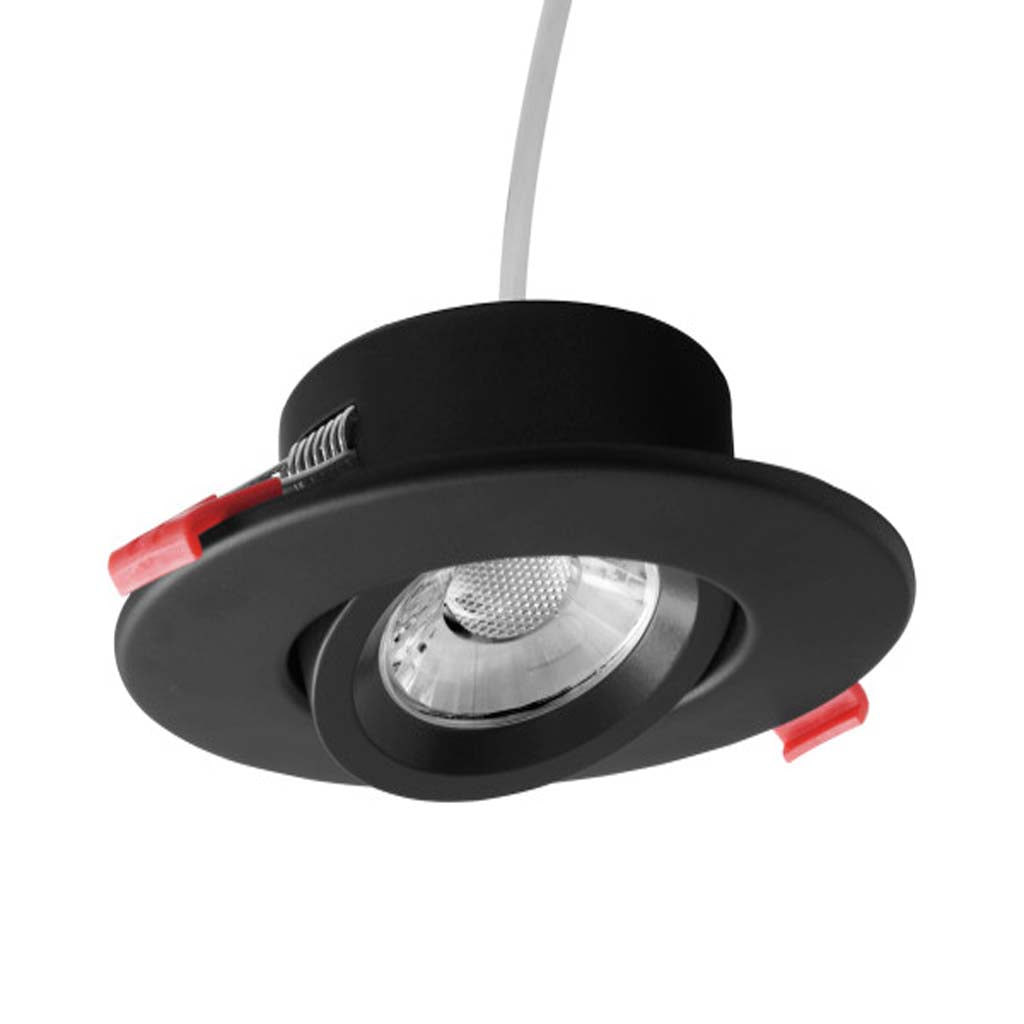

Nicor 4-in Black Selectable Canless Adjustable Gimbal LED Recessed Downlight

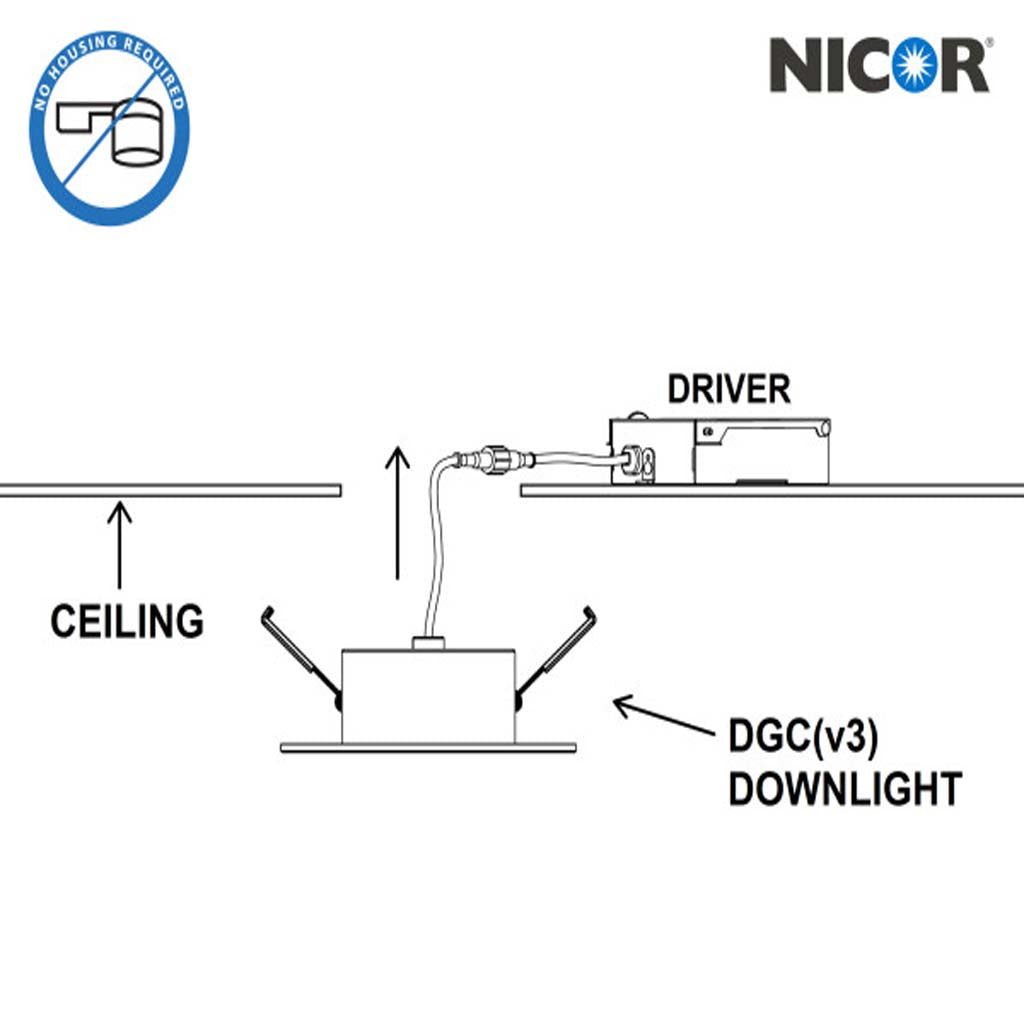

The NICOR DGC4(v3) 4-in gimbal LED downlight is the ideal LED remodel downlight for directional lighting. It is fully adjustable and features 360rotation, 25tilt and a narrow 33beam angle to highlight architectural or artistic elements in your home. The DGC4 features 5 built-in color temperatures to choose from, ranging from soft white to daylight (2700K - 5000K). Easily switch between color temperatures using the switch located on the included junction box. The high-performance DGC4 is fully dimmable and features an incredible 97 CRI rating (color rendering index) with an R9 value over 70. This means that your reds will be brighter, and your blues will be truer. Installation is simple-a recessed housing or junction box is not required. Instead, the DGC4 installs directly into the ceiling using the 3.75-in template provided. The adjustable spring-loaded retention tabs ensure a secure fit directly to the ceiling. This all-in-one kit includes everything you need to install custom directional lighting anywhere in your home. Available in Black, Oil-Rubbed Bronze, and White. Protected by NICOR 5-Year Limited Warranty.

Features:
- Includes Selectable LED downlight, plenum-rated cable, and off-board driver
- Installs directly into the ceiling; no housing or junction box required
- Adjustable directional lighting at 25tilt and 360rotation
- Produces over 715 Lumens at 9-Watts (65W Equivalent)
- Dimmable to less than 5 percent using standard TRIAC LED Dimmers
- Precision optics provides smooth, uniform lighting at a narrow 33beam angle
- Insulation Contact rated, Damp-Location rated, Airtight (ASTM E283), FCC complaint, and RoHS compliant
- Lifetime rated for over 54,000 hours of use
- Protected by NICOR 5-Year limited warranty

Size	4
Product Color	Black
Finish	Powder Coat
Shape	Round
Light Source	LED
Wattage	8.9
Wattage Equivalent	65
Lumen	845
Color Temperature (CCT)	5000K
CRI	97
R9 Value	>70
Dimmable	Yes - Dimmable
Operating Temperature	0F to 120F (-18C to 49C)
Listings/Certifications	ETL Intertek Listed, UL 1598 Listed, cUL 1598 Listed, Damp-Location, IC-Rated, RoHS Compliant, FCC Class B, Airtight, ASTM 283 Compliant
Other Certifications	LM-79, LM-80 testing performed in accordance with IESNA standards COB maintains 4-step MacAdams with duv <0.003 Meets or exceeds ASTM-283 Air-Tight Requirements Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions
Warranty	5 Year Limited

Manual:

DGC43120SRDBK Data Sheet
DGC43120SRDBK Installation Manual
